Manual Shift Shaft Seal Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

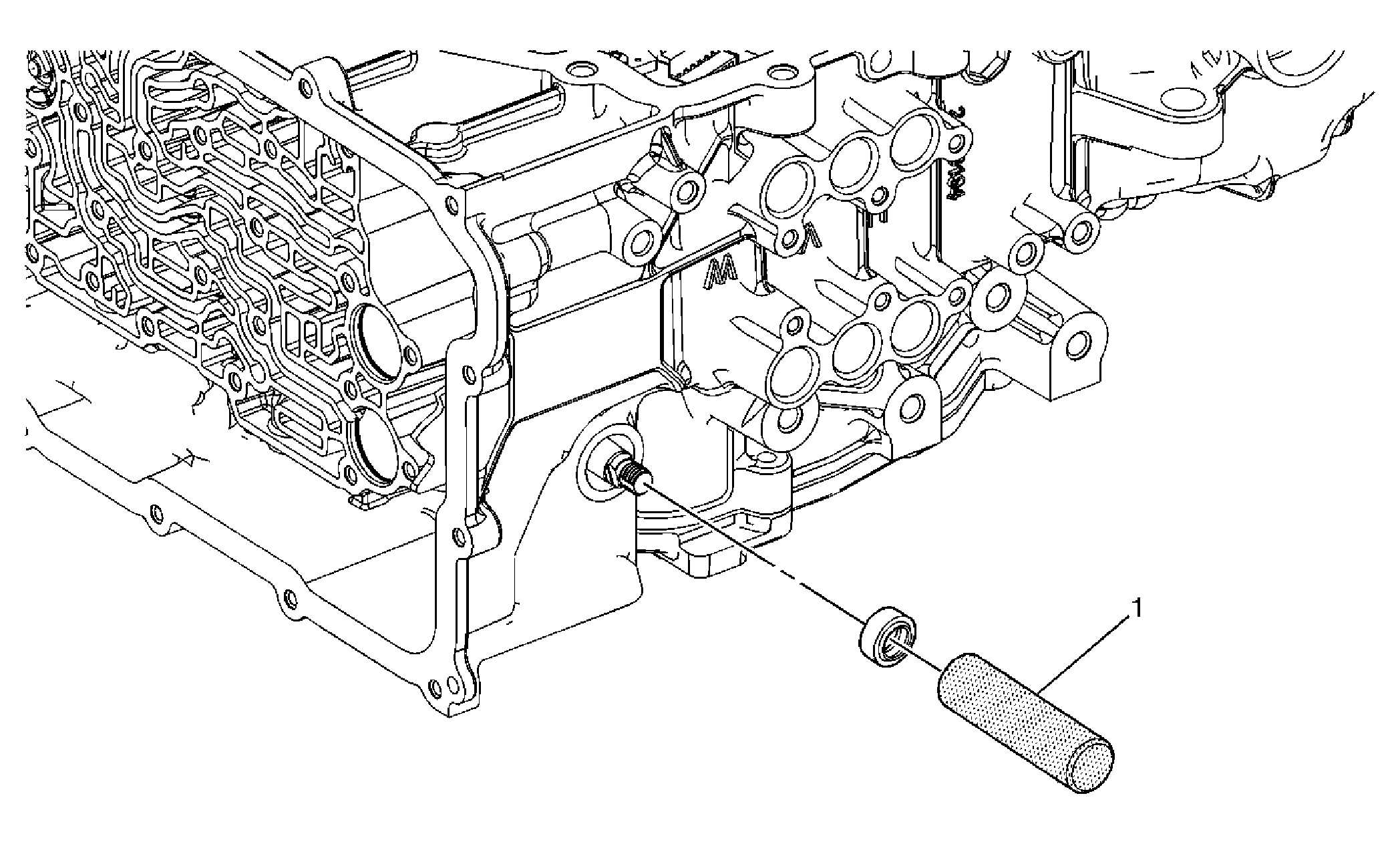

Fig 1: Manual Shift Shaft Seal
GM2059192Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Manual Shift Shaft Seal
Special Tool:
DT-49101  Seal Installer. See Special Tools .
