Input Shaft Seal Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

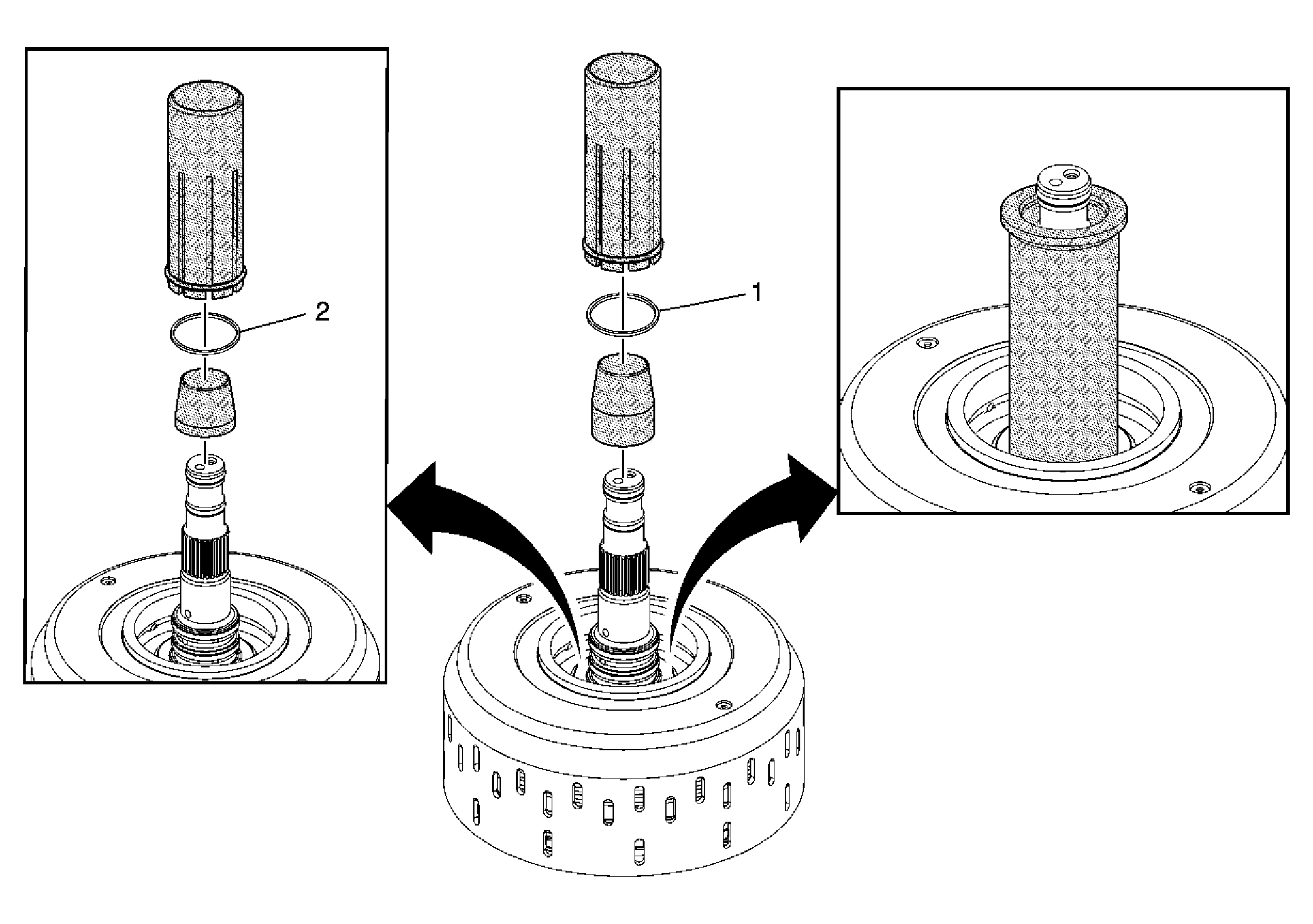

Fig 1: Input Shaft Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Use DT-49261-1 protector and -4 pusher to install the first lower seal. Use DT-49261-2 protector and -4 pusher to install the second upper seal. Size both seals for at least 15 minutes.
1	Input Shaft Seal (Qty: 1) Special Tools: DT-49261: Input Shaft Seal Installer For equivalent regional tools, refer to Special Tools .
2	Input Shaft Seal (Qty: 1)

Callout

Component Name

Preliminary Procedure

Use DT-49261-1 protector and -4 pusher to install the first lower seal.
Use DT-49261-2 protector and -4 pusher to install the second upper seal.
Size both seals for at least 15 minutes.

Input Shaft Seal (Qty: 1)
Special Tools:
DT-49261: Input Shaft Seal Installer
For equivalent regional tools, refer to Special Tools .

Input Shaft Seal (Qty: 1)
