Input Carrier, Sun Gear, and Shaft Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

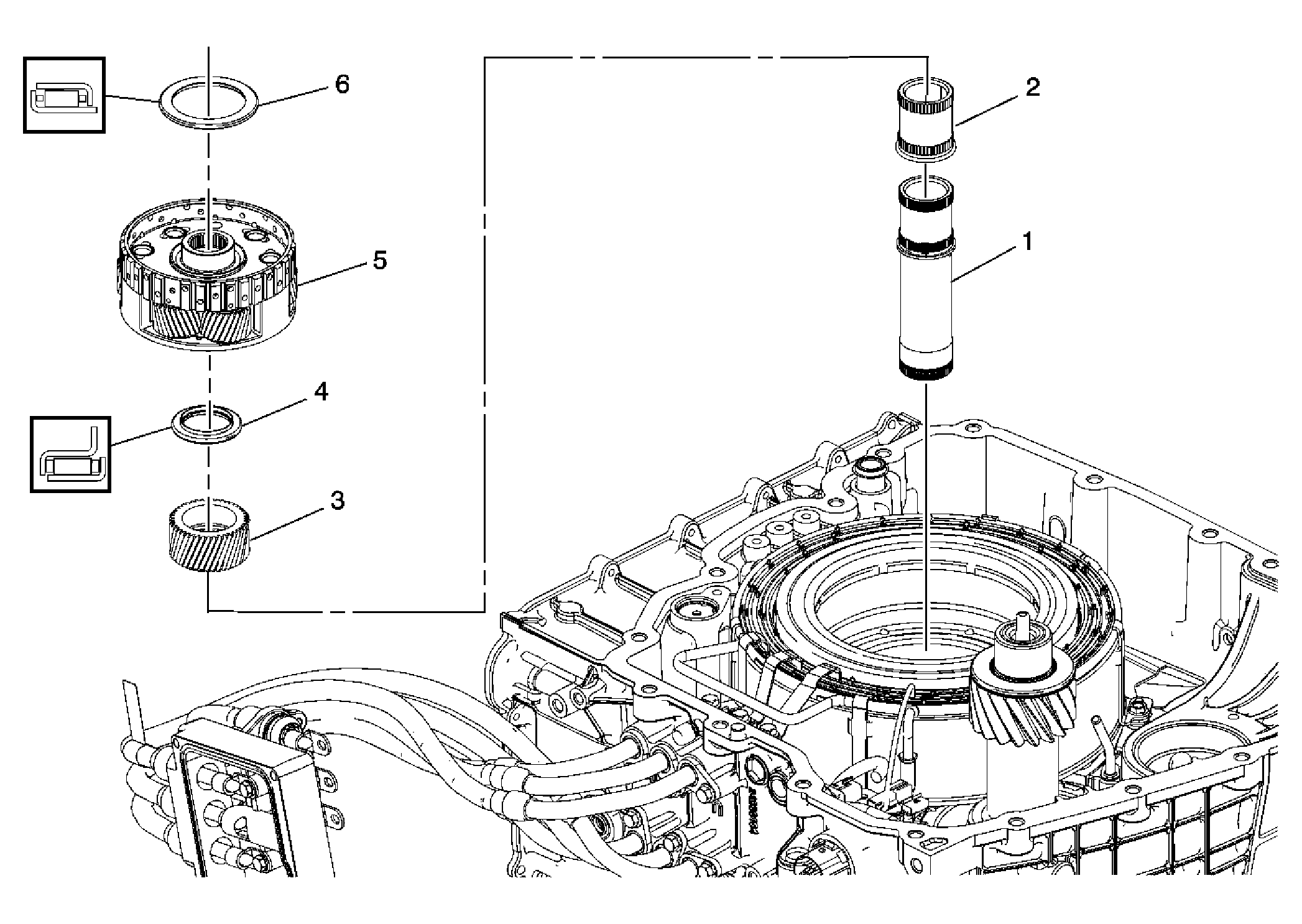

| Callout |
Component Name |
| 1 |
Input Sun Gear Shaft |
| 2 |
Generator/Drive Motor Rotor Hub Shaft |
| 3 |
Input Sun Gear |
| 4 |
Input Sun Gear Thrust Bearing Assembly |
| 5 |
Input Carrier Assembly - C1 |
| 6 |
Input Carrier Thrust Bearing Assembly |
