Holding Fixture Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

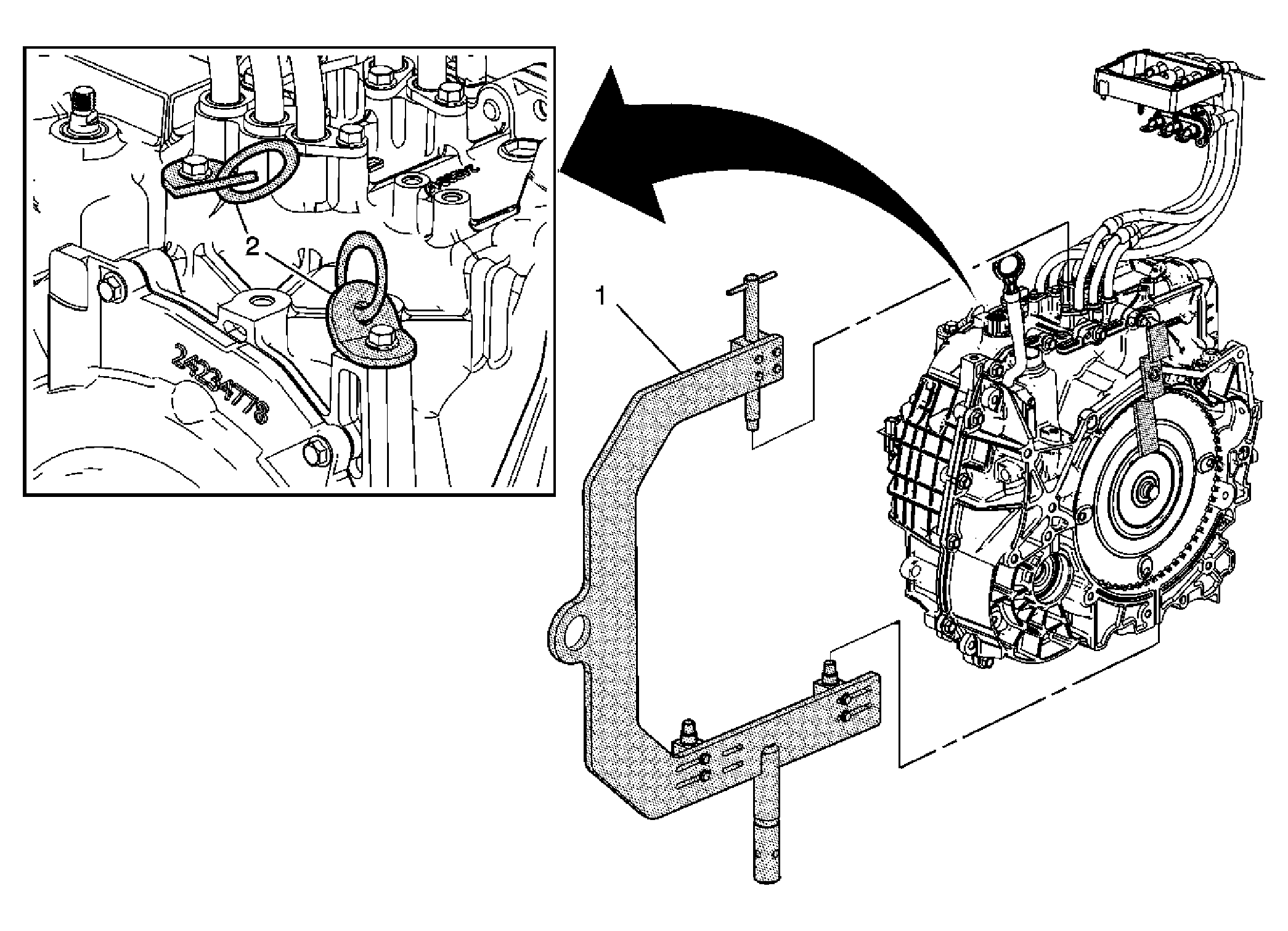

Fig 1: Transmission Holding Fixture

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J-46625 Transmission Holding Fixture WARNING: Handle with care, the transmission assembly weighs over 183 Kg (403 lbs). Bodily injury could occur if not handled properly. CAUTION: Refer to Fastener Caution . Tip: Adjust mounting block on fixture to match bosses on case, then tighten bolts to: Tighten: 13 N.m (115 lb in) Special Tools: J-46625: Transmission Holding Fixture For equivalent regional tools, refer to Special Tools .
2	J-42451-1 Engine Support Adapter (Qty: 2) Special Tools: J 42451-1: Engine Support Adapter For equivalent regional tools, refer to Special Tools .

Callout

Component Name

J-46625 Transmission Holding Fixture

WARNING: Handle with care, the transmission assembly weighs over 183 Kg (403 lbs). Bodily injury could occur if not handled properly.

CAUTION: Refer to Fastener Caution .

Tip: Adjust mounting block on fixture to match bosses on case, then tighten bolts to:

Tighten: 13 N.m (115 lb in)

Special Tools:
J-46625: Transmission Holding Fixture
For equivalent regional tools, refer to Special Tools .

J-42451-1 Engine Support Adapter (Qty: 2)
Special Tools:
J 42451-1: Engine Support Adapter
For equivalent regional tools, refer to Special Tools .
