Front Wheel Drive Shaft Seal Replacement - Torque Dampener Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

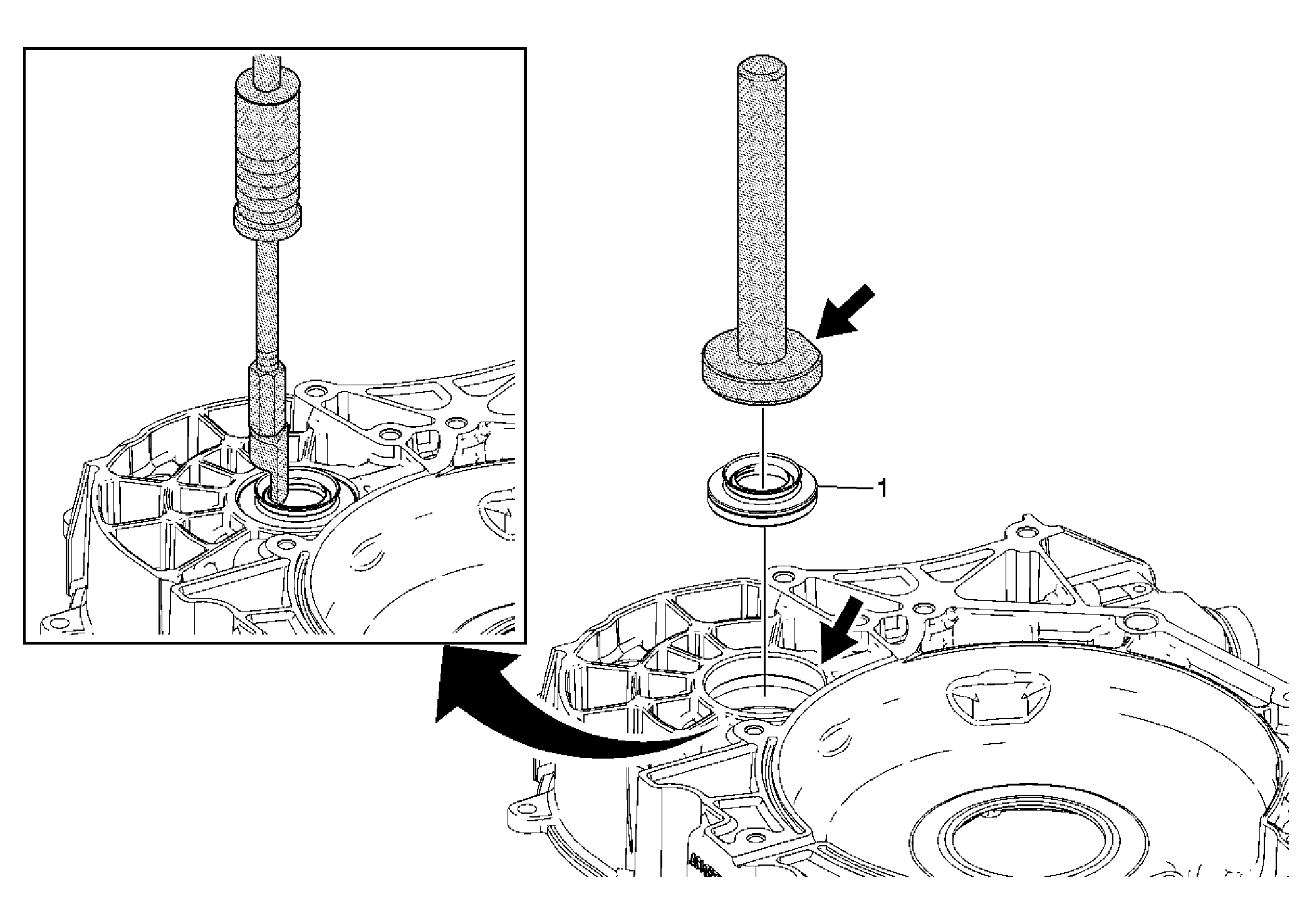

Fig 1: Front Wheel Drive Shaft Seal - Torque Dampener Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal Assembly Tip: Align the flat of DT-49305 with the passage casting on the housing indicated by arrows. Special Tools DT-49305: Axle Seal Installer J 8092: Driver Handle or equivalent J 23129: Universal Seal Remover SA9133-T: Axle Seal Puller SA9133-T-2: Axle Seal Puller Adapter For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Wheel Drive Shaft Oil Seal Assembly
Tip: Align the flat of DT-49305 with the passage casting on the housing indicated by arrows.

Special Tools

DT-49305: Axle Seal Installer
J 8092: Driver Handle or equivalent
J 23129: Universal Seal Remover
SA9133-T: Axle Seal Puller
SA9133-T-2: Axle Seal Puller Adapter

For equivalent regional tools, refer to Special Tools .
