Front Wheel Drive Shaft Seal Replacement - Case Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

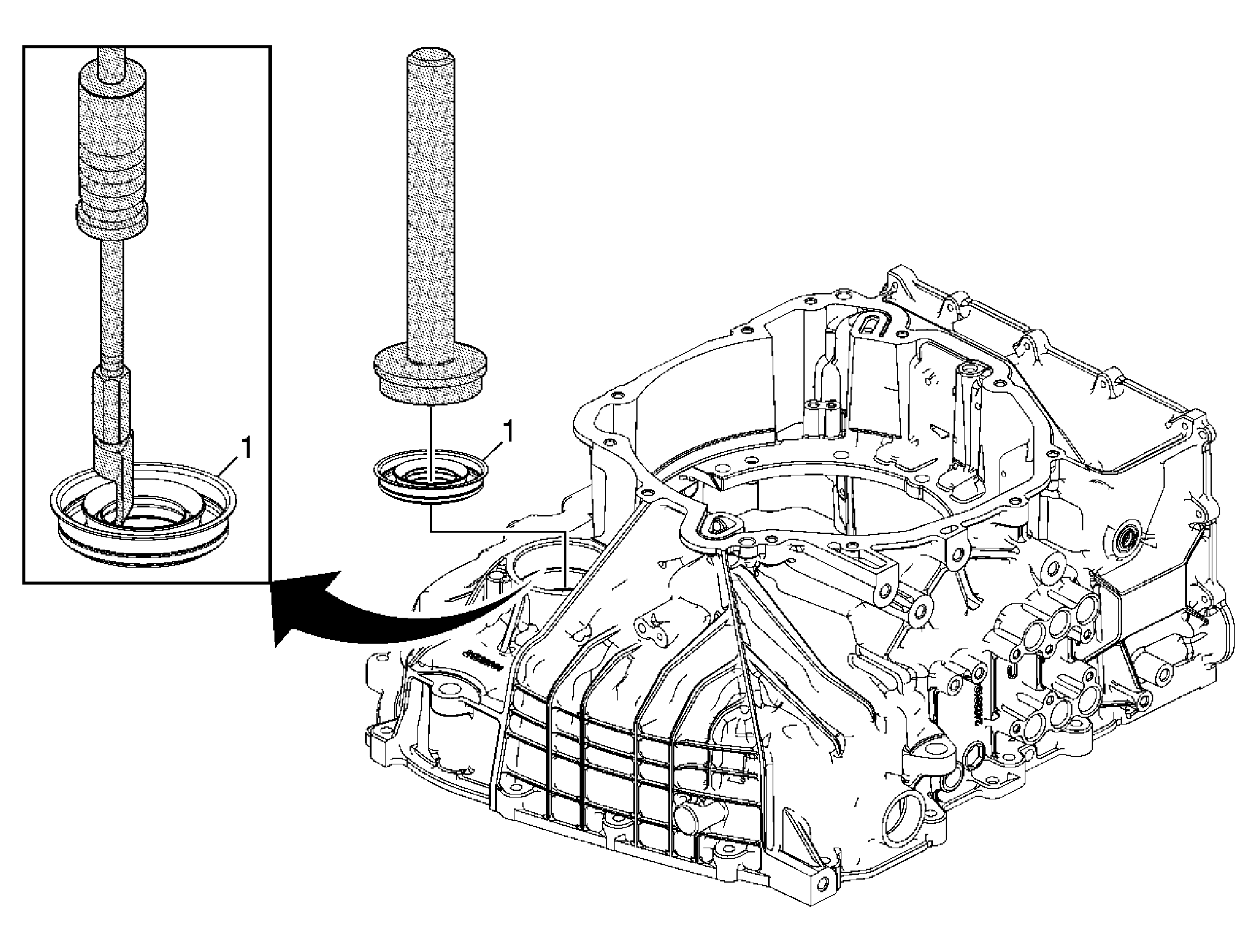

Fig 1: Front Wheel Drive Shaft Seal - Case Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal Assembly Procedure Discard the seal. It is not reusable. Use the flat side of J 46629-A to seat the seal to the case surface. Special Tools DT-49262: Axle Seal Installer J 8092: Driver Handle J 23129: Universal Seal Remover SA9133-T: Axle Seal Puller SA9133-T-2: Axle Seal Puller Adapter For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Wheel Drive Shaft Oil Seal Assembly

Procedure

Discard the seal. It is not reusable.
Use the flat side of J 46629-A to seat the seal to the case surface.

Special Tools

DT-49262: Axle Seal Installer
J 8092: Driver Handle
J 23129: Universal Seal Remover
SA9133-T: Axle Seal Puller
SA9133-T-2: Axle Seal Puller Adapter

For equivalent regional tools, refer to Special Tools .
