Front Differential Drive Pinion Gear with Transfer Gear Overhaul

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

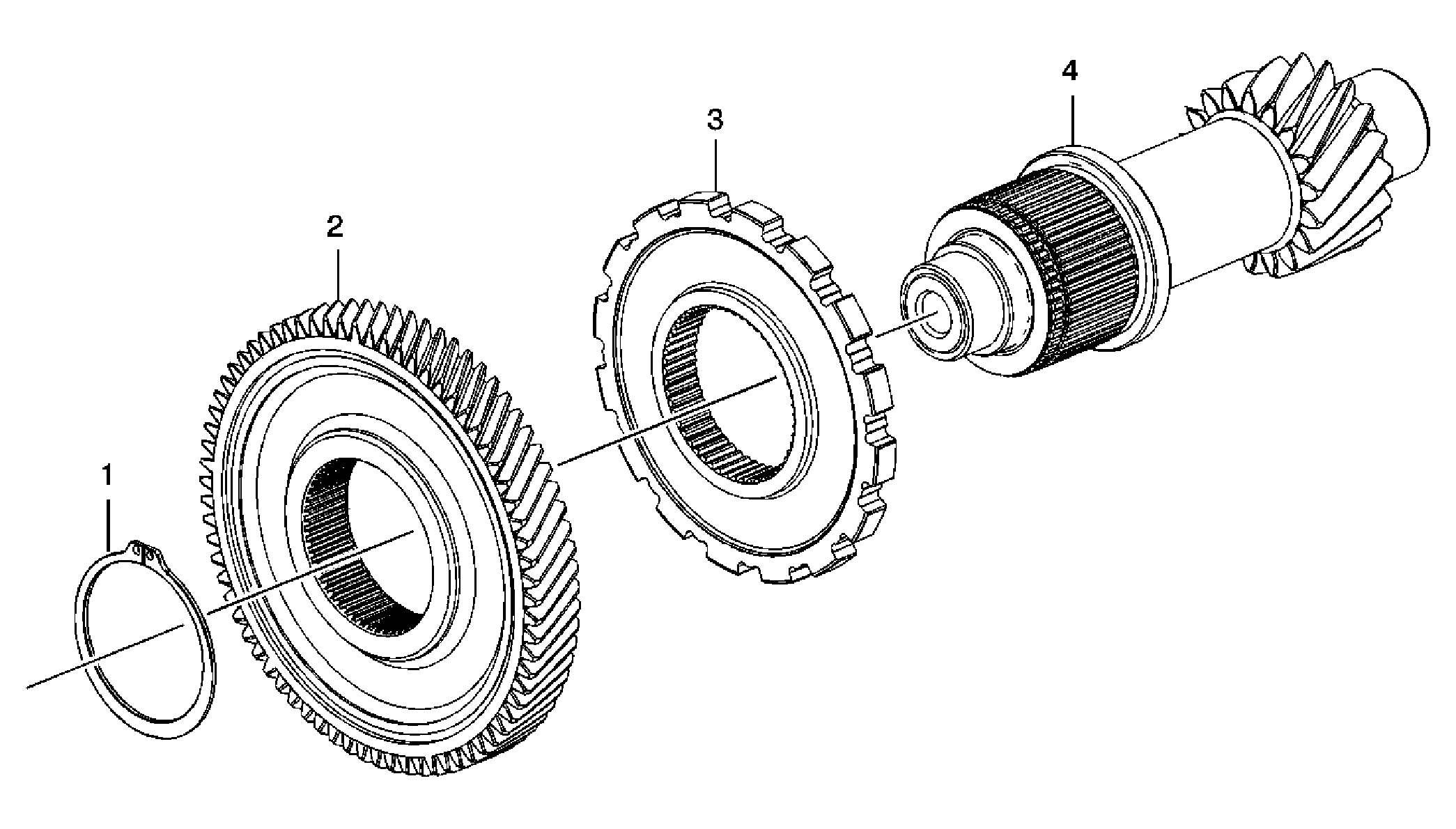

Fig 1: Front Differential Drive Pinion Gear With Transfer Gear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Differential Transfer Driven Gear Retaining Ring
2	Front Differential Transfer Driven Gear
3	Park Gear
4	Front Differential Drive Pinion Gear
