Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Replacement: Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

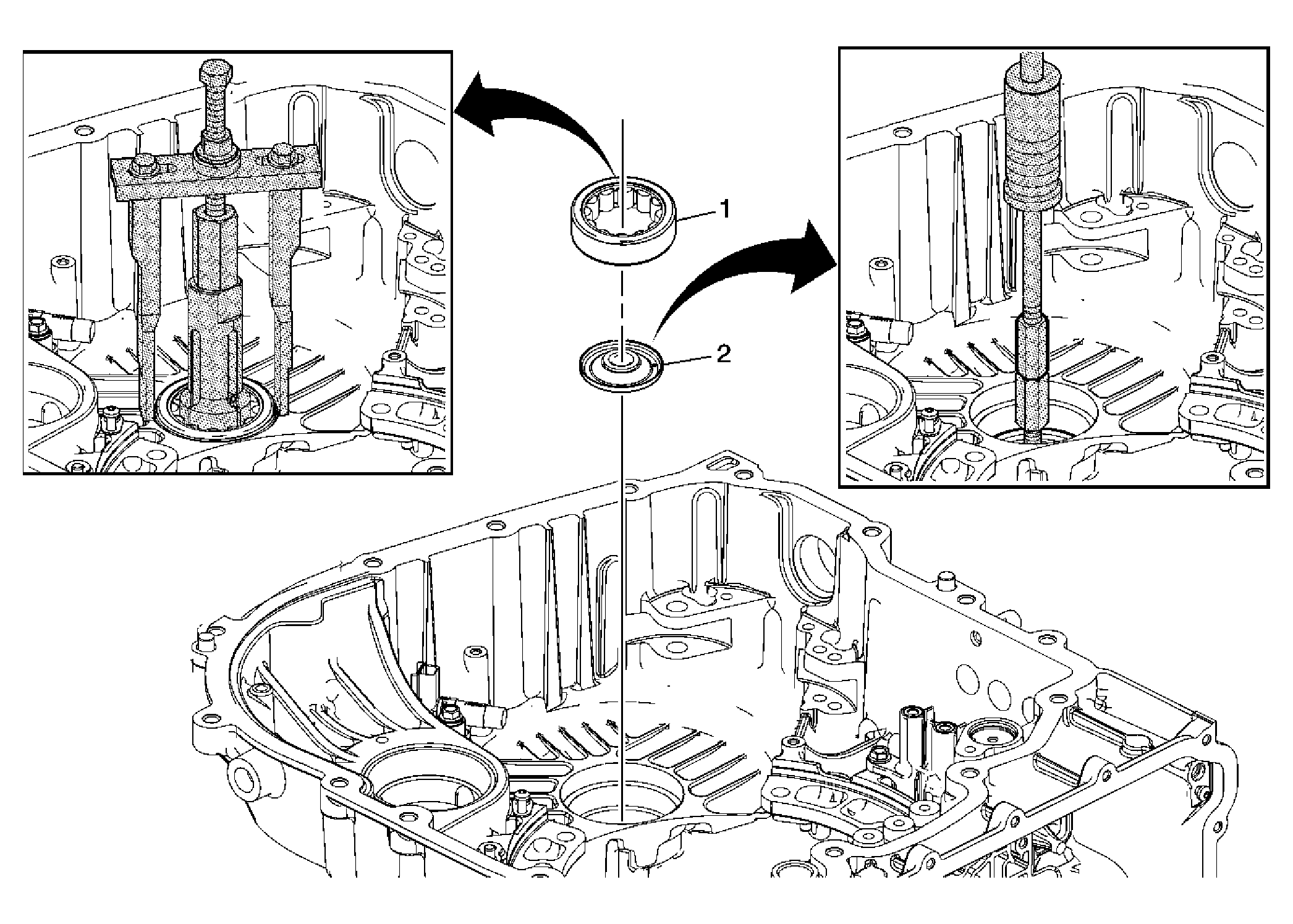

Fig 1: Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam - Removal

Courtesy of GENERAL MOTORS CORP.

Removal

Callout	Component Name
1	Front Differential Drive Pinion Gear Roller Bearing Assembly Procedure: Tighten DT-49230-2 until it fits snugly on the bearing. Special Tools DT-49230-2: Transfer Shaft Bearing Remover J 45124: Removal Bridge For equivalent regional tools, refer to Special Tools .
2	Front Differential Drive Pinion Gear Lube Dam Special Tools DT-48055: Lube Dam Remover SA9133-T: Axle Seal Puller SA9133-T-2: Axle Seal Puller Adapter For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Differential Drive Pinion Gear Roller Bearing Assembly
Procedure:
Tighten DT-49230-2 until it fits snugly on the bearing.

Special Tools

DT-49230-2: Transfer Shaft Bearing Remover
J 45124: Removal Bridge

For equivalent regional tools, refer to Special Tools .

Front Differential Drive Pinion Gear Lube Dam

Special Tools

DT-48055: Lube Dam Remover
SA9133-T: Axle Seal Puller
SA9133-T-2: Axle Seal Puller Adapter

For equivalent regional tools, refer to Special Tools .
