Torque Sequence

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

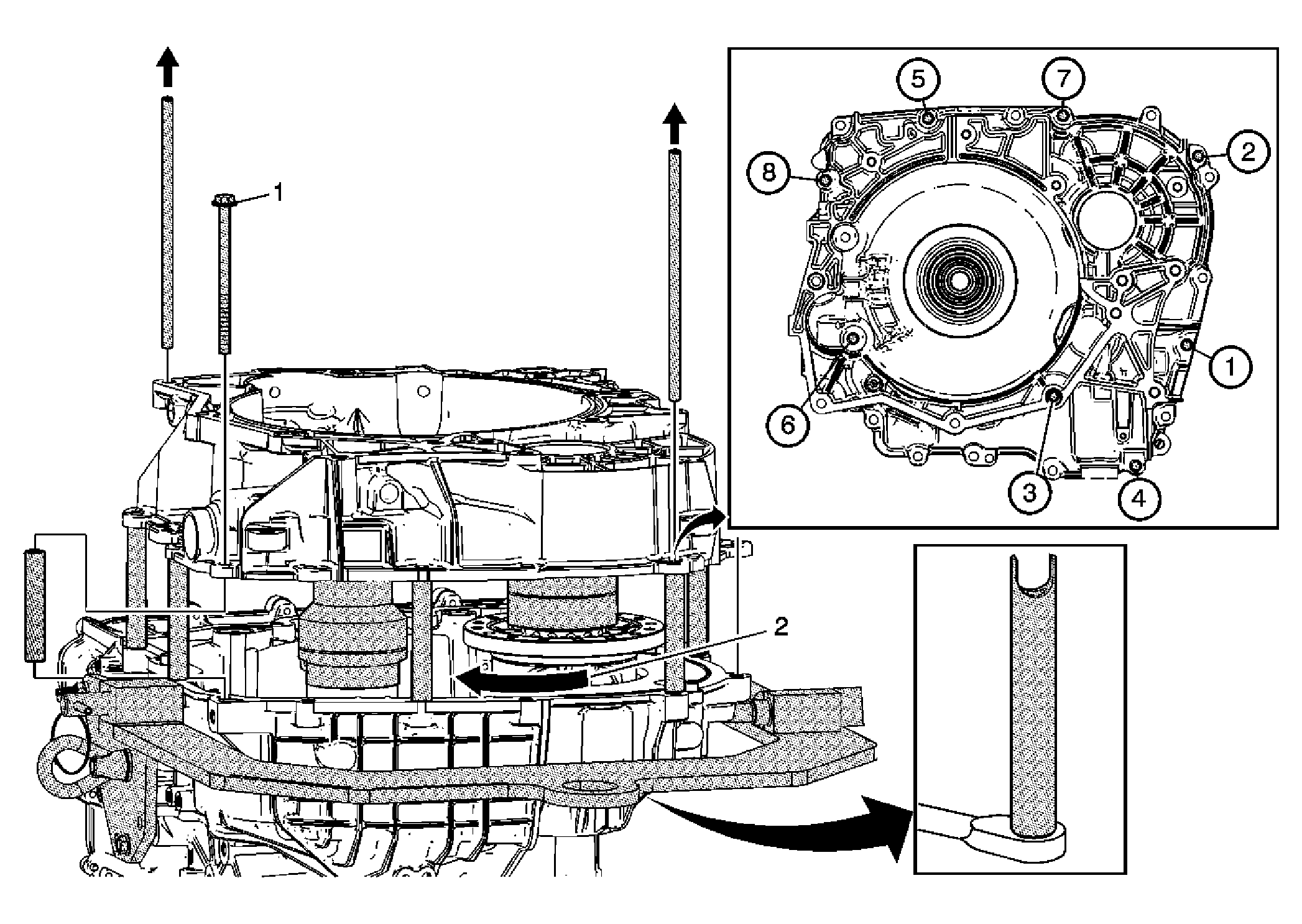

Fig 1: Torque Sequence
GM2047344Courtesy of GENERAL MOTORS CORP.
Torque Sequence

Callout Component Name
1 Spacer Bolts M8 x 127 (Qty: 8)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Install the remaining spacers evenly at every other bolt hole.
  2. Remove the DT-47800-10, guide pins and install spacer bolts in all bolt holes at spacer locations.
  3. Tighten the bolts in sequence shown.

Tighten:  30 N.m (22 lb ft)

Special Tools

  • DT-47800:  Thrust Washer Selection Gage Kit
  • DT-47800-10:  Thrust Washer Selection Bolts, Spacer and Shims

For equivalent regional tools, refer to Special Tools .
2 Front Differential Carrier Assembly
CAUTION: If the bearings are not properly seated into the bearing cups, the washer selection will be inaccurate and the bearing pre-load will be set too low. Low bearing pre-load will cause premature failure of the front differential drive pinion gear.

Tip:  Differential rotating tool DT-47793 can be used to rotate the differential from the case side.
Special Tools:
DT-47793:  Differential Rotating Tool
For equivalent regional tools, refer to Special Tools .
