Front Differential Carrier and Front Differential Drive Pinion with Transfer Gear Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

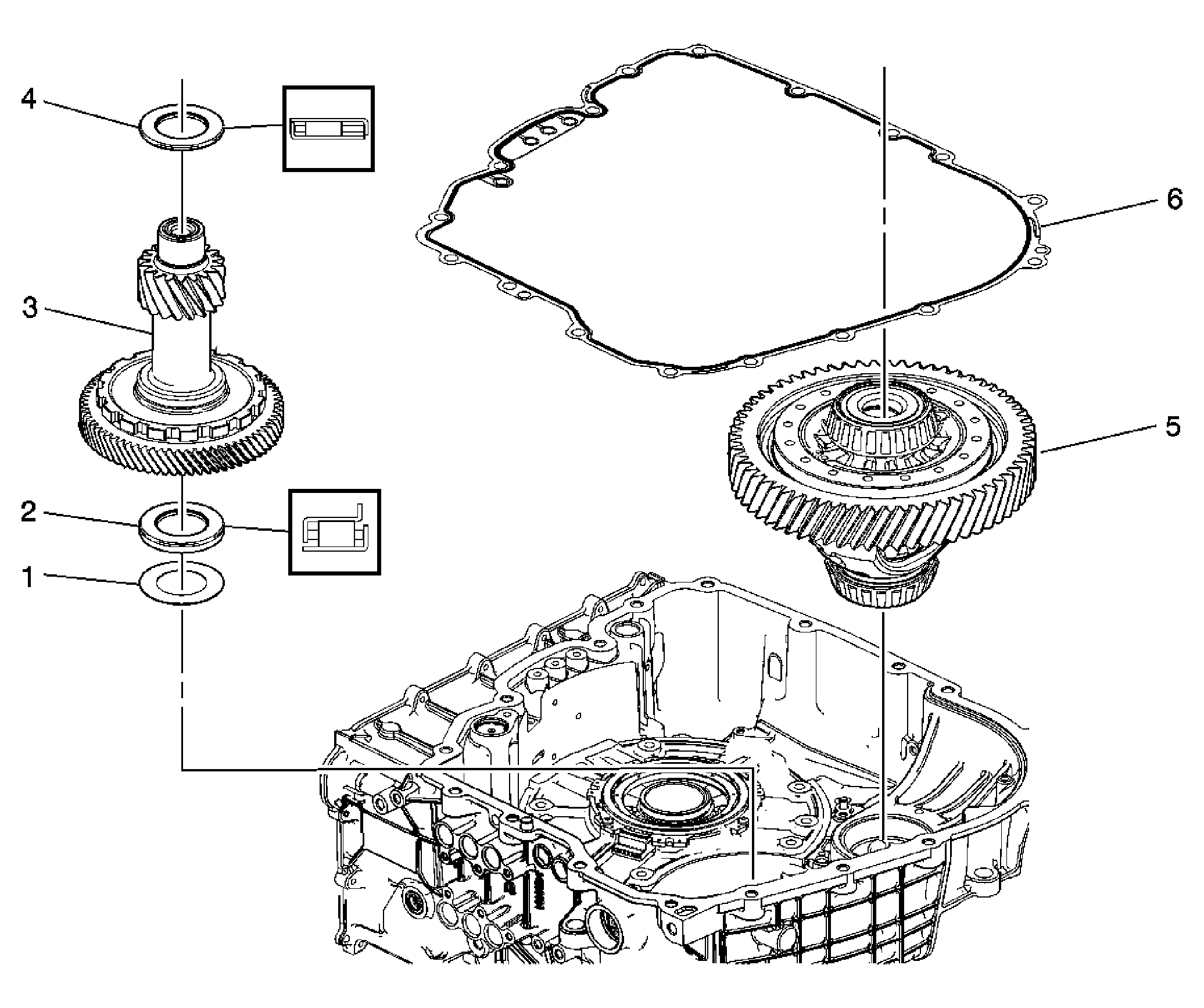

Front Differential Carrier and Front Differential Drive Pinion with Transfer Gear Installation
| Callout | Component Name |
|---|---|
| 1 | Front Differential Bearing Spacer |
| 2 | Front Drive Pinion Gear Shaft Thrust Bearing Assembly (LHS) |
| 3 | Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly |
| 4 | Front Drive Pinion Gear Shaft Thrust Bearing Assembly (RHS) |
| 5 | Front Differential Carrier Assembly (FWD) |
| 6 | Torque Dampener Housing Outer Seal |
