Differential Thrust Washer Gage Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

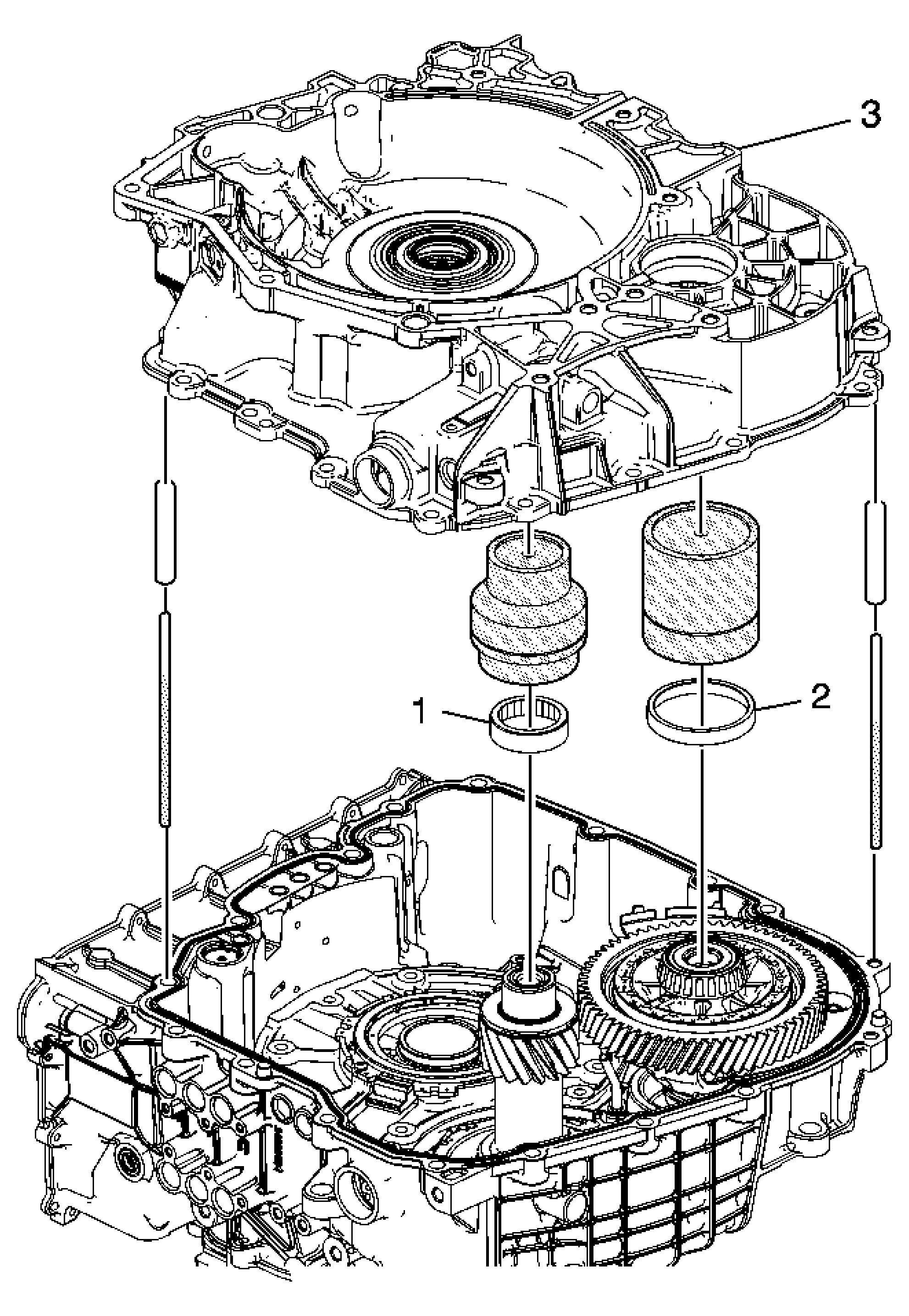

Fig 1: Differential Thrust Washer Gage

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Differential Drive Pinion Gear Roller Bearing Assembly Tip: After placing the bearing cup on the gear, place DT-47800-2 which is part of DT-47800, onto the bearing cup. Special Tools DT-47800: Thrust Washer Selection Gage Kit DT-47800-10: Thrust Washer Selection Bolts, Spacer and Shims For equivalent regional tools, refer to Special Tools .
2	Front Differential Drive Pinion Gear Bearing Cup Tip: After placing the bearing cup on the gear, place DT-47800-2 which is part of DT-47800, onto the bearing cup. Special Tool: DT-47800: Thrust Washer Selection Gage Kit For equivalent regional tools, refer to Special Tools .
3	Torque Dampener and Differential (w/Fluid Pump) Housing Assembly Tip: Install 2 DT-47800-10, into a case threaded hole at approximately 180 degrees apart. Some alignment of DT-47800-1 and 2 which is part of DT-47800, may be required while lowering the housing onto the case. Install DT-47800-3 which is part of DT-47800, spacer over DT-47800-6. Special Tools DT-47800: Thrust Washer Selection Gage Kit DT-47800-10: Thrust Washer Selection Bolts, Spacer and Shims For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Differential Drive Pinion Gear Roller Bearing Assembly
Tip: After placing the bearing cup on the gear, place DT-47800-2 which is part of DT-47800, onto the bearing cup.

Special Tools

DT-47800: Thrust Washer Selection Gage Kit
DT-47800-10: Thrust Washer Selection Bolts, Spacer and Shims

For equivalent regional tools, refer to Special Tools .

Front Differential Drive Pinion Gear Bearing Cup
Tip: After placing the bearing cup on the gear, place DT-47800-2 which is part of DT-47800, onto the bearing cup.
Special Tool:
DT-47800: Thrust Washer Selection Gage Kit
For equivalent regional tools, refer to Special Tools .

Torque Dampener and Differential (w/Fluid Pump) Housing Assembly
Tip:

Install 2 DT-47800-10, into a case threaded hole at approximately 180 degrees apart.
Some alignment of DT-47800-1 and 2 which is part of DT-47800, may be required while lowering the housing onto the case.
Install DT-47800-3 which is part of DT-47800, spacer over DT-47800-6.

Special Tools

DT-47800: Thrust Washer Selection Gage Kit
DT-47800-10: Thrust Washer Selection Bolts, Spacer and Shims

For equivalent regional tools, refer to Special Tools .
