Fluid Pump Selective Measurement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

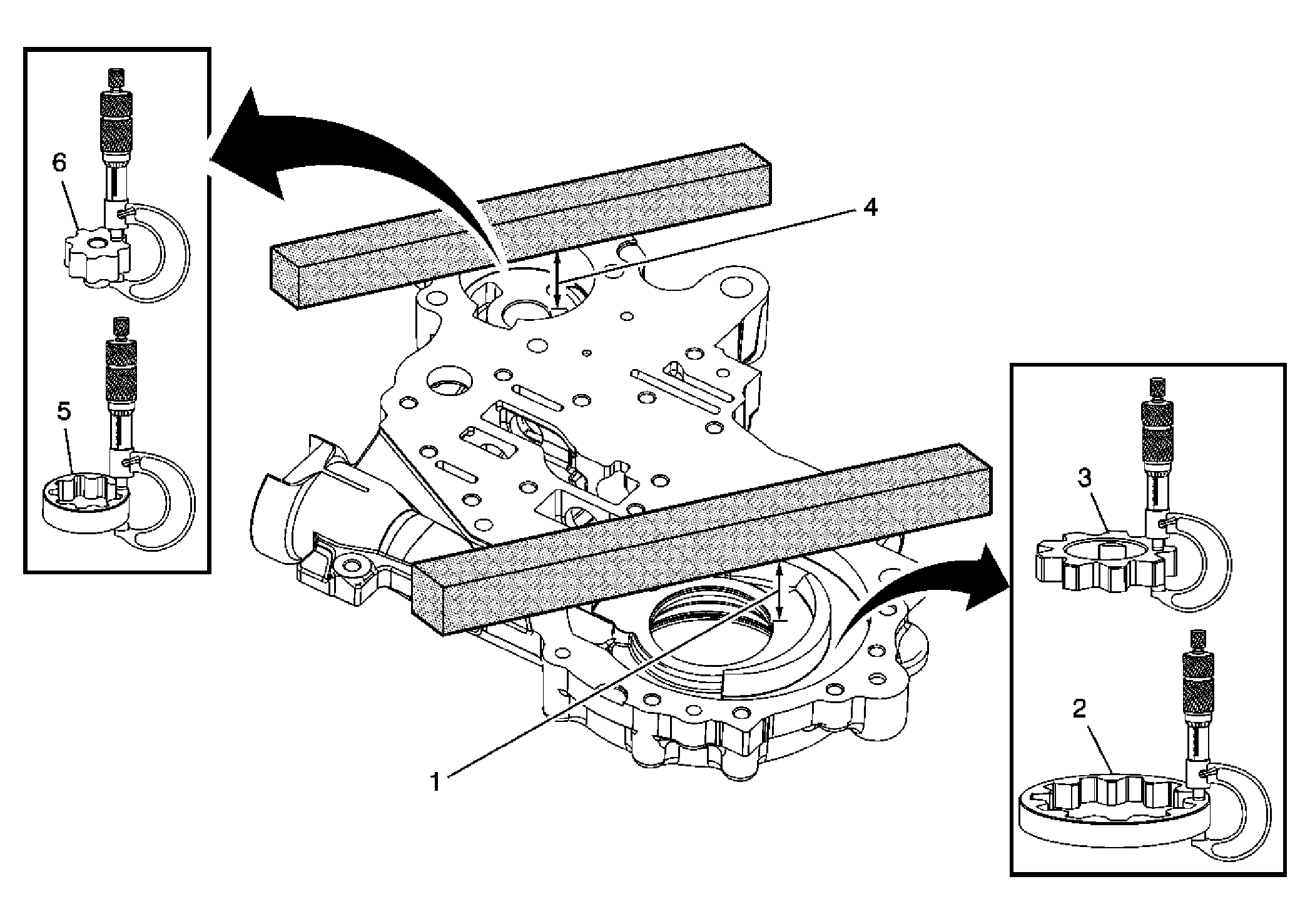

| Callout | Component Name |
|---|---|
| 1 | A/Trans Fluid Pump Body Tip: Measure the distance from the bottom of the gage bar to the bottom of the main pump rotor cavity. Refer to Fluid Pump Selective Specifications . Special Tool: J 34673: Flat Gage Bar or equivalent For equivalent regional tools, refer to Special Tools . |
| 2 | A/Trans Fluid Pump Drive Gear - Selective Tip: Refer to Fluid Pump Selective Specifications to select the correct gear. |
| 3 | A/Trans Fluid Pump Driven Gear - Selective Tip: Refer to Fluid Pump Selective Specifications to select the correct gear. |
| 4 | A/Trans Fluid Pump Body Tip: Measure the distance from the bottom of the gage bar to the bottom of the auxiliary pump rotor cavity. Refer to Fluid Pump Selective Specifications . Special Tool: J 34673: Flat Gage Bar or equivalent For equivalent regional tools, refer to Special Tools . |
| 5 | A/Trans Auxiliary Fluid Pump Drive Gear - Selective |
| 6 | A/Trans Auxiliary Fluid Pump Driven Gear - Selective |
