Fluid Pump Body, Torque Dampener Fluid Seal, and Torque Dampener Bearing Disassemble

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

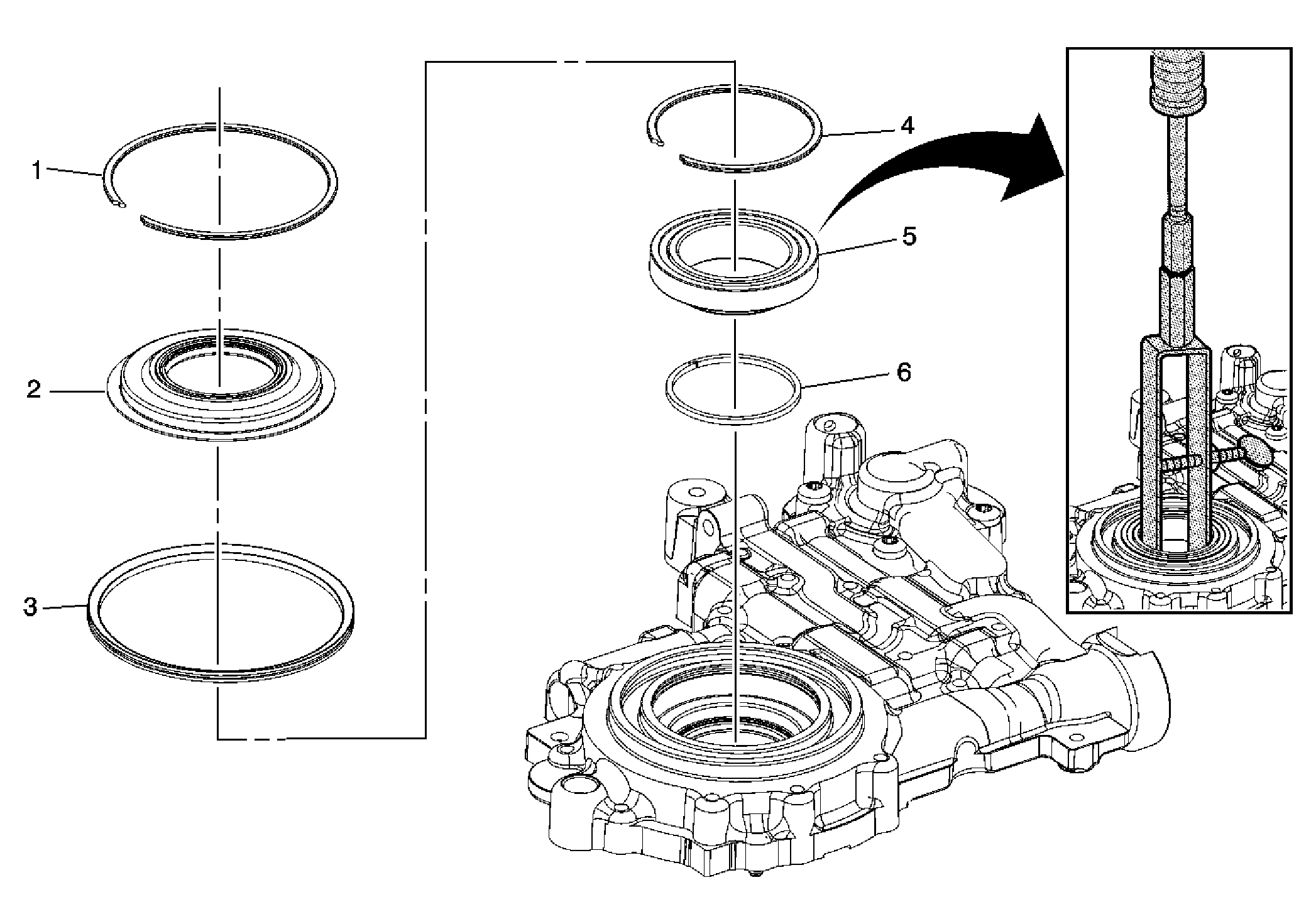

Fig 1: Fluid Pump Body, Torque Dampener Fluid Seal, and Torque Dampener Bearing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/Trans Torque Dampener Seal Retaining Ring
2	A/Trans Torque Dampener Fluid Seal Assembly
3	A/Trans Fluid Pump Seal
4	A/Trans Torque Dampener Bearing Retaining Ring
5	A/Trans Torque Dampener Bearing Assembly Special Tools J 26941: Bushing and Bearing Remover 2-3 in SA9133-T: Axle Seal Puller SA9133-T-1: Axle Seal Puller Adapter
6	A/Trans Torque Dampener Bearing Seal
