Drive Motor Generator Power Inverter Module Cable Terminal Insulator Block Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

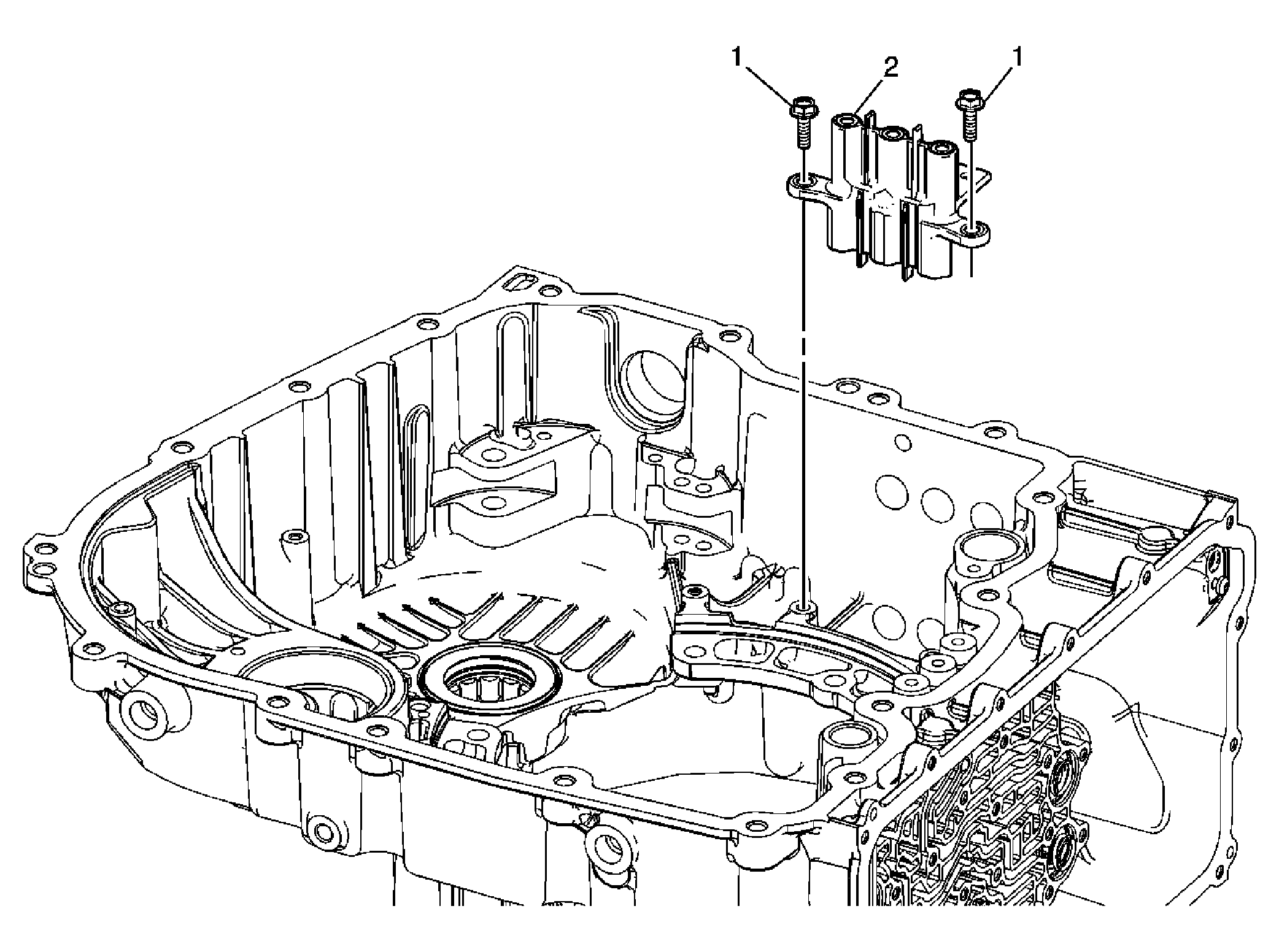

| Callout |
Component Name |
| 1 |
Drive Motor Generator Power Inverter Module Cable Terminal Insulator Block Bolt M6 x 20 mm (Qty: 2) |
| 2 |
Drive Motor Generator Power Inverter Module Cable Terminal Insulator Block Assembly |
