Control Valve Body Cover Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

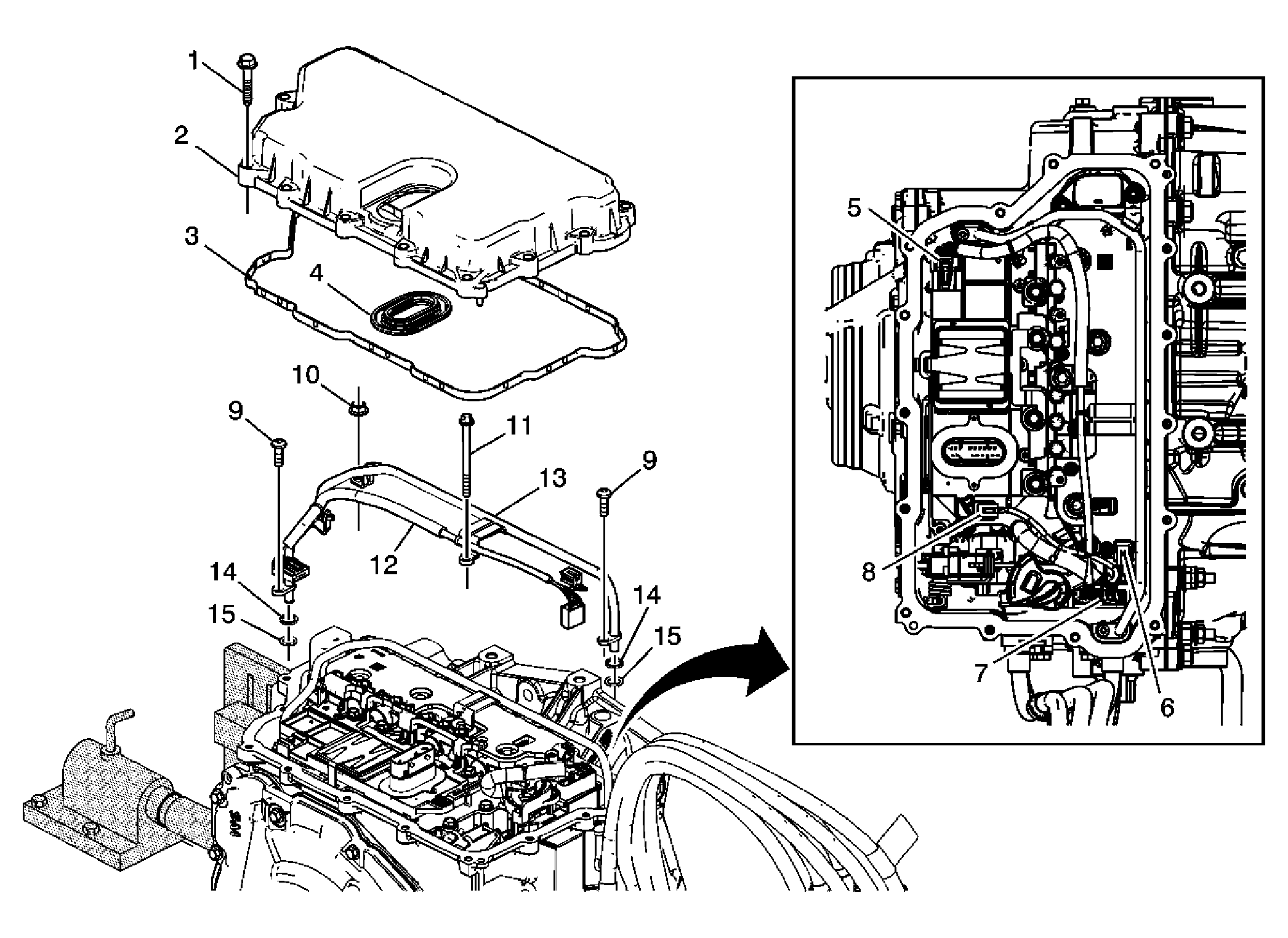

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Cover Bolt M6 x 30 mm (Qty: 15) |
| 2 | Control Valve Body Cover Assembly |
| 3 | Control Valve Body Cover Gasket |
| 4 | Control Valve Body Cover Wiring Connector Hole Seal Tip: Seal may stay with the cover. |
| 5 | Electrical Connector |
| 6 | Electrical Connector |
| 7 | A/Trans Manual Shift Shaft Position Switch Connector |
| 8 | Control Solenoid (w/Body and TCM) TEHCM Valve Assembly Connector |
| 9 | Generator/Drive Motor Position Sensor Bolt M5 x 16 mm (Qty: 2) |
| 10 | Variable Drive Pulley Retaining Nut |
| 11 | Control Valve Body Bolt M6 x 75 mm (Qty: 1) |
| 12 | A/Trans Wiring Extension Harness Assembly Tip: The wiring harness is attached to the fluid cooler outlet pipe assembly and will come out together. |
