Control Solenoid Valve and Transmission Control Module Assembly Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

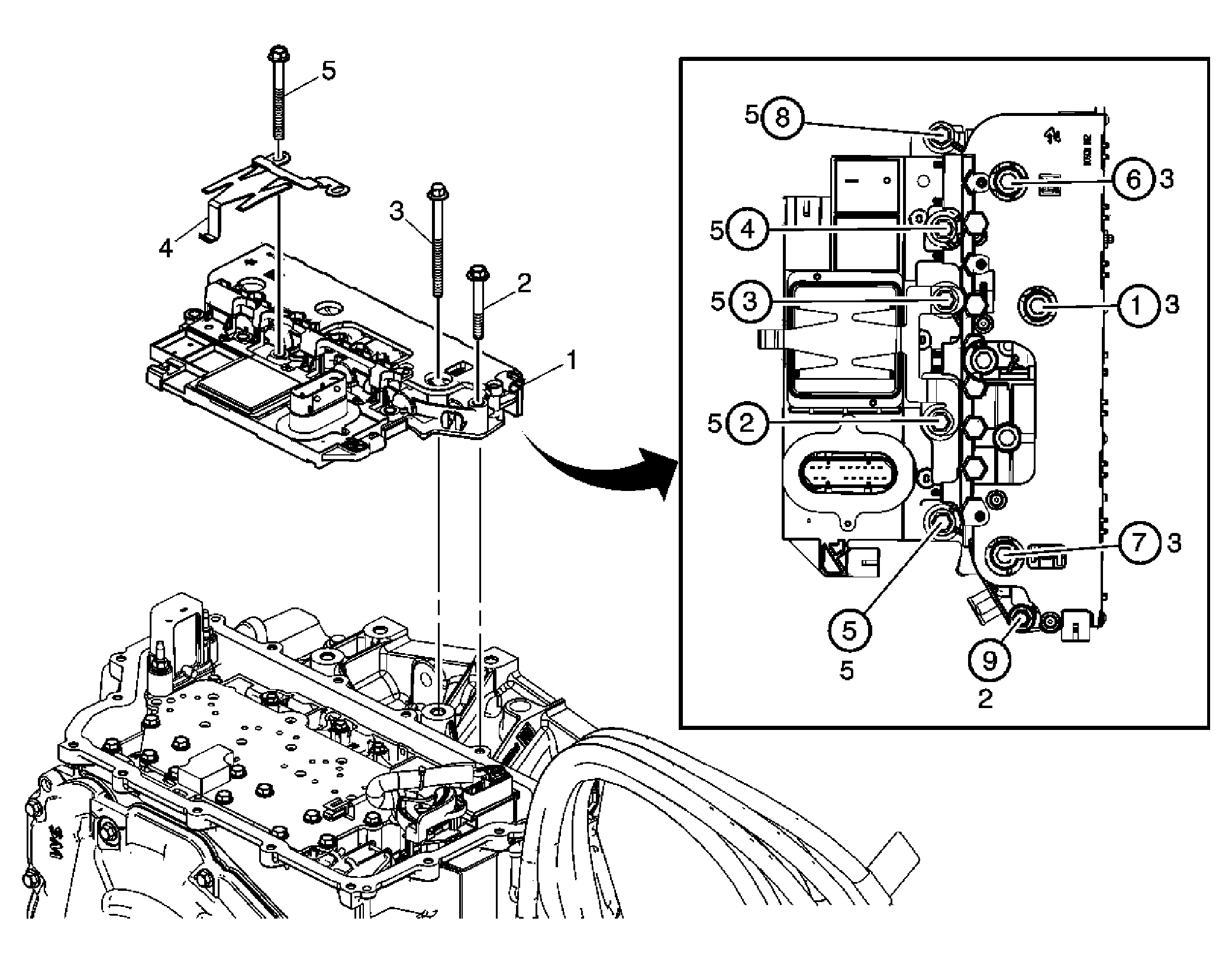

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid (w/Body and TCM) TEHCM Valve Assembly |
| 2 | Control Valve Body Bolt M6 x 42 mm (Qty: 1)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten the bolt in sequence shown. Tighten: 9 N.m (80 lb in) |
| 3 | Control Valve Body Bolt M6 x 75 mm (Qty: 3) Procedure: Tighten the bolt in sequence shown. Tighten: 9 N.m (80 lb in) |
| 4 | Control Solenoid Valve Spring |
| 5 | Control Valve Body Bolt M6 x 65 mm (Qty: 5) Procedure: Tighten the bolt in sequence shown. Tighten: 9 N.m (80 lb in) |
