Center Support Roller Bearing Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

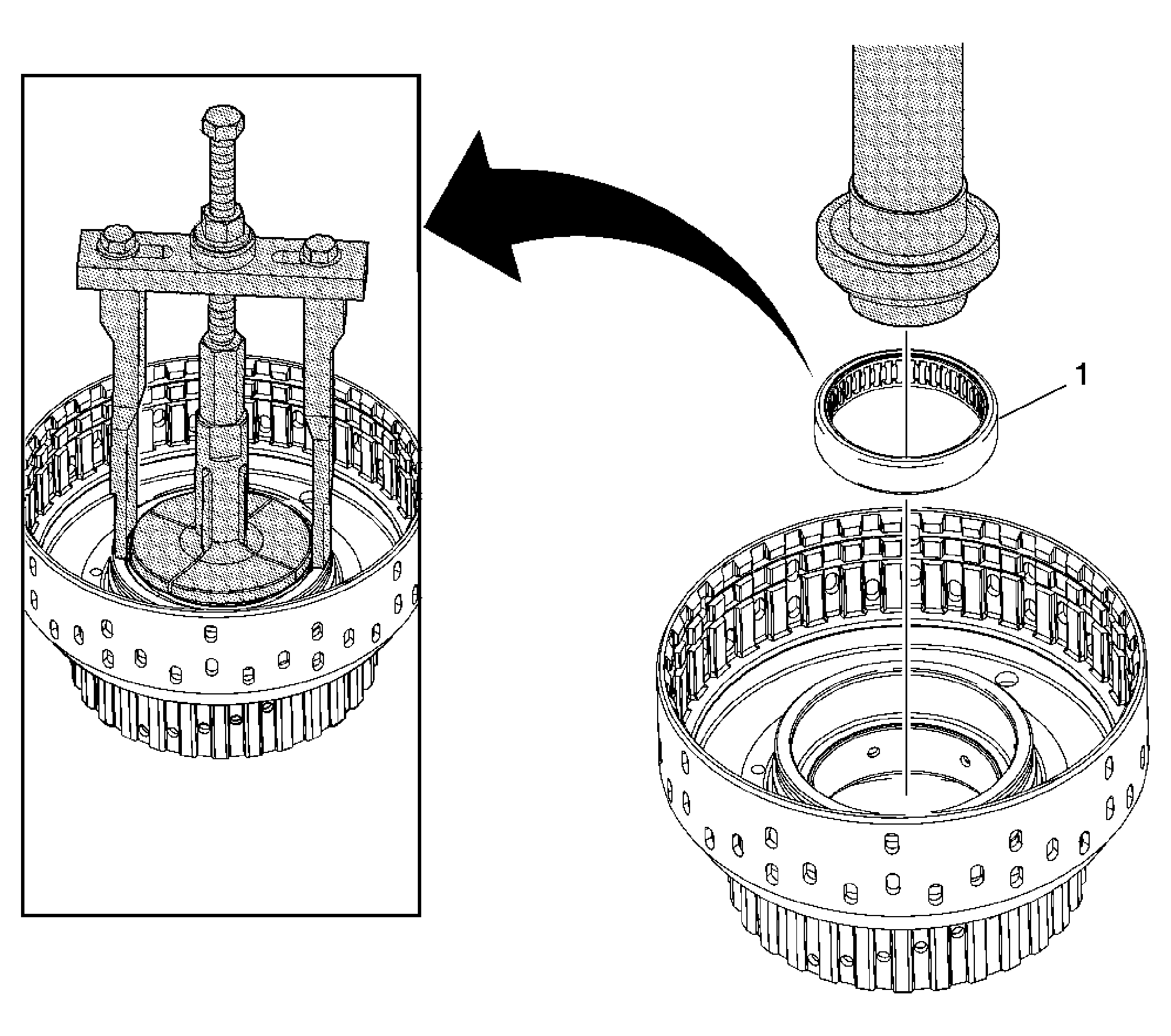

Fig 1: Center Support Roller Bearing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center Support Roller Bearing Assembly Tip: To remove the bearing engage the roller bearing not the race with J 45094 and verify from the bottom side. Special Tools DT-49264: Bearing Cup Installer with Press J 45094: Bearing Cup Remover J 45124: Removal Bridge For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Center Support Roller Bearing Assembly
Tip: To remove the bearing engage the roller bearing not the race with J 45094 and verify from the bottom side.

Special Tools

DT-49264: Bearing Cup Installer with Press
J 45094: Bearing Cup Remover
J 45124: Removal Bridge

For equivalent regional tools, refer to Special Tools .
