Center Support Assembly Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

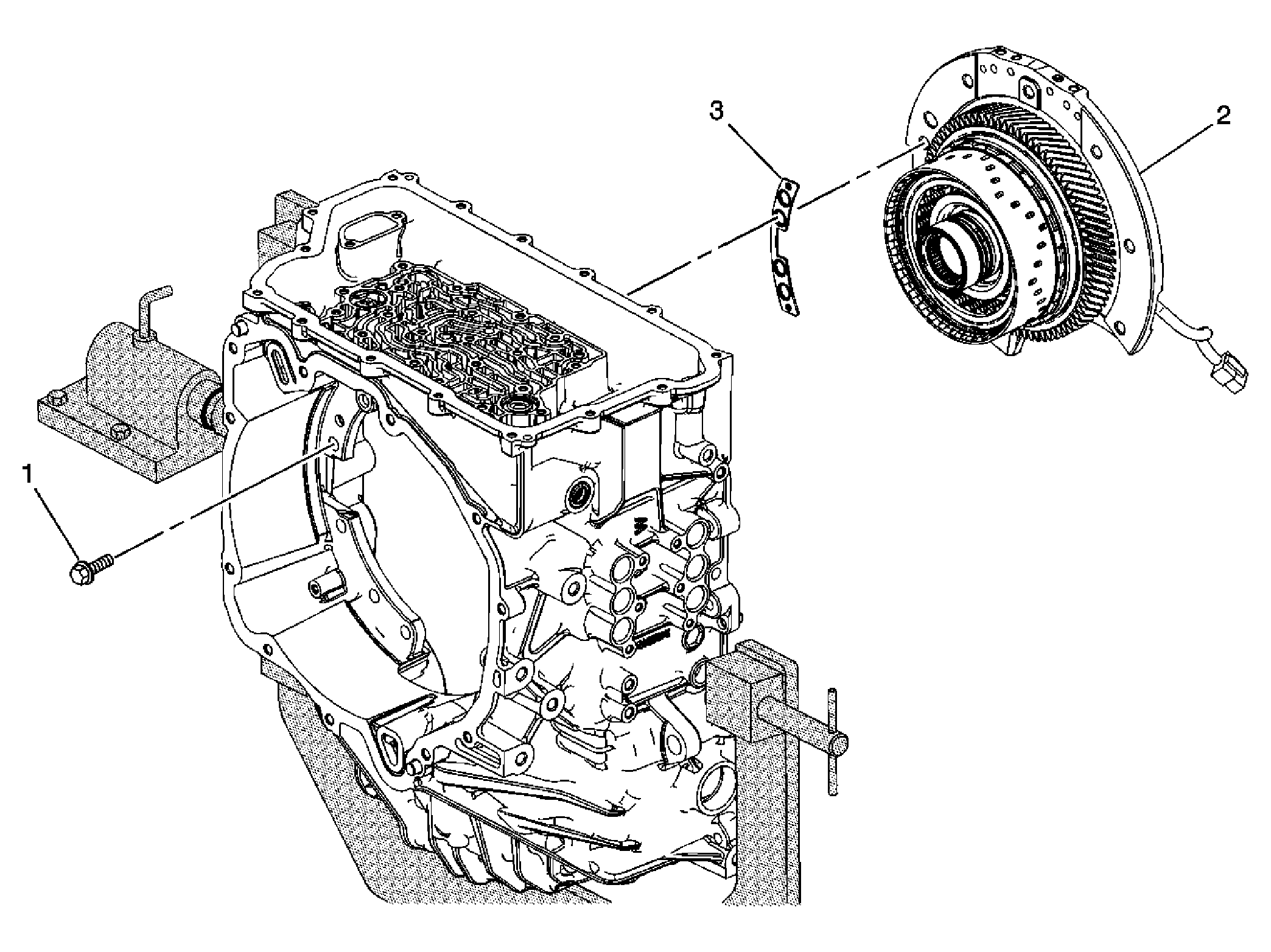

| Callout |
Component Name |
| 1 |
Center Support Bolt M10 x 25 mm (Qty: 9) |
| 2 |
Center (w/Variable Low and 1-2 Reverse Clutch) Support Assembly |
| 3 |
Center Support Oil Passage Seal
Tip:
May be stuck to the support assembly. |
