Center Support Assembly Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

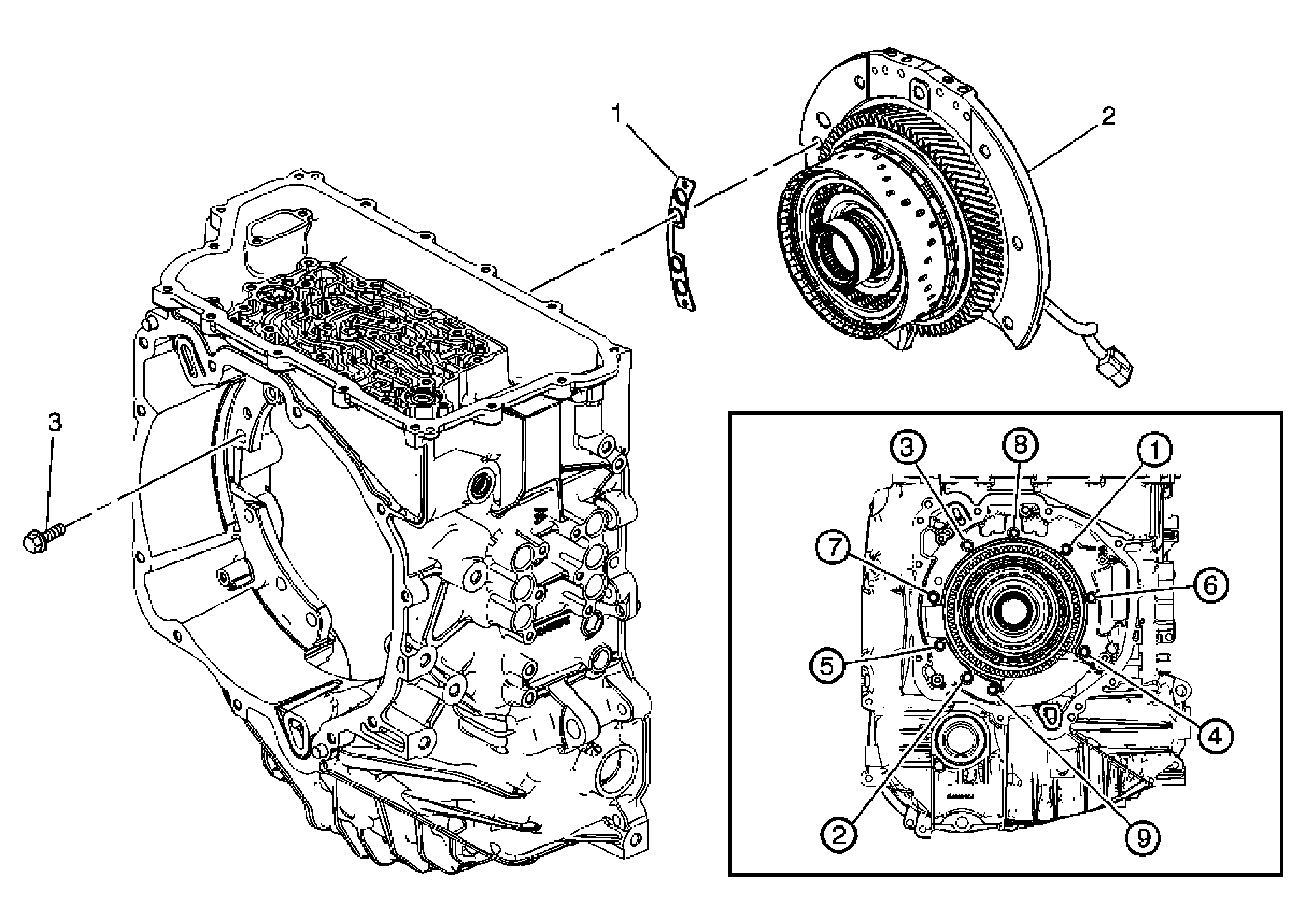

| Callout | Component Name |
|---|---|
| 1 | Center Support Oil Passage Seal |
| 2 | Center (w/Variable Low and 1-2 Reverse Clutch) Support Assembly |
| 3 | Center Support Bolt M10 x 25 mm (Qty: 9)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten bolts in sequence shown. Tighten: 58 N.m (43 lb ft) |
