Center Support Assembly Disassemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

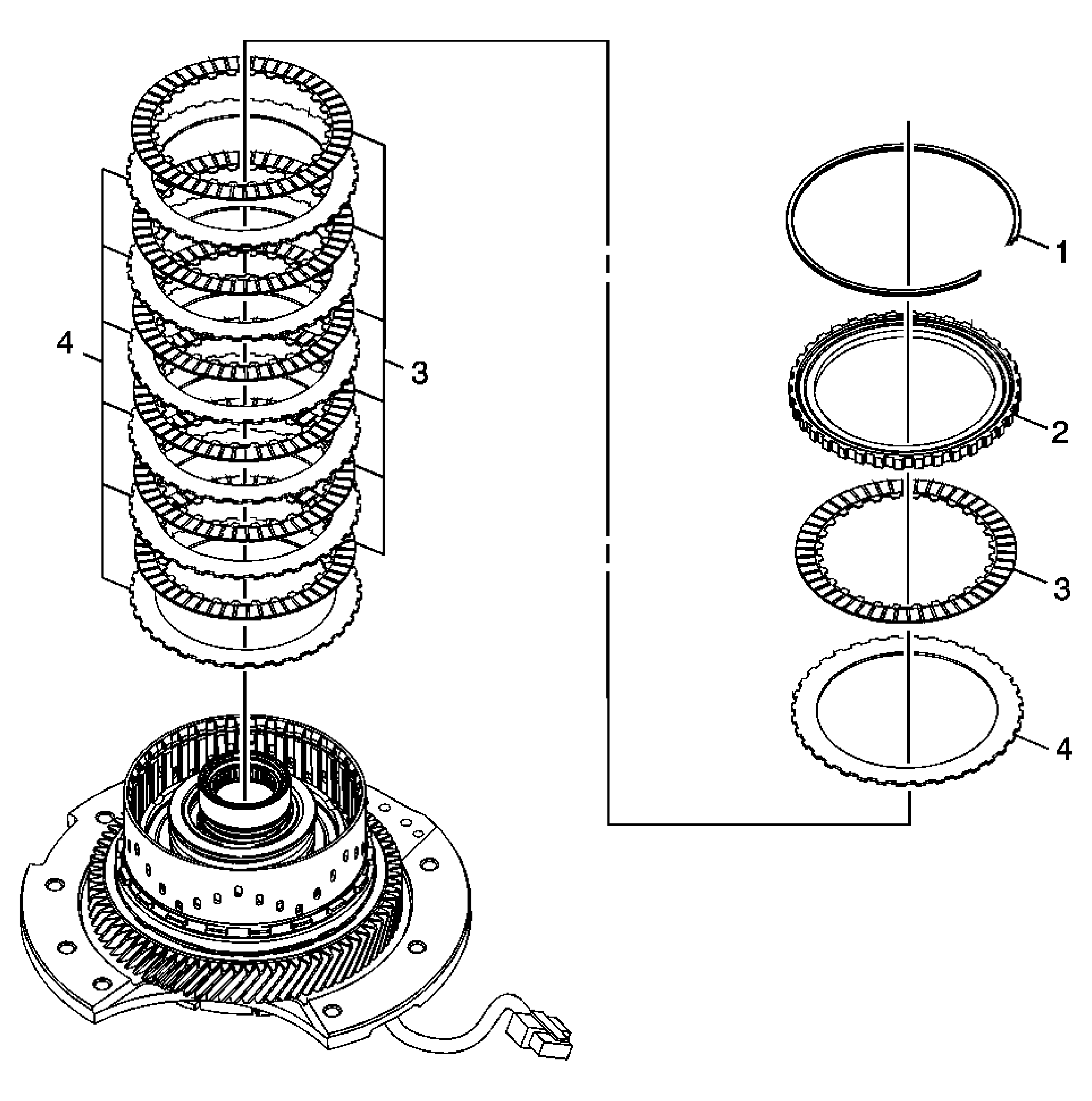

| Callout |
Component Name |
| 1 |
Variable Low and 1-2 Reverse Clutch Backing Plate Retaining Ring - Selective |
| 2 |
Variable Low and 1-2 Reverse Clutch Backing Plate |
| 3 |
Variable Low and 1-2 Reverse Clutch Plate Assembly |
| 4 |
Variable Low and 1-2 Reverse Clutch Plate |
