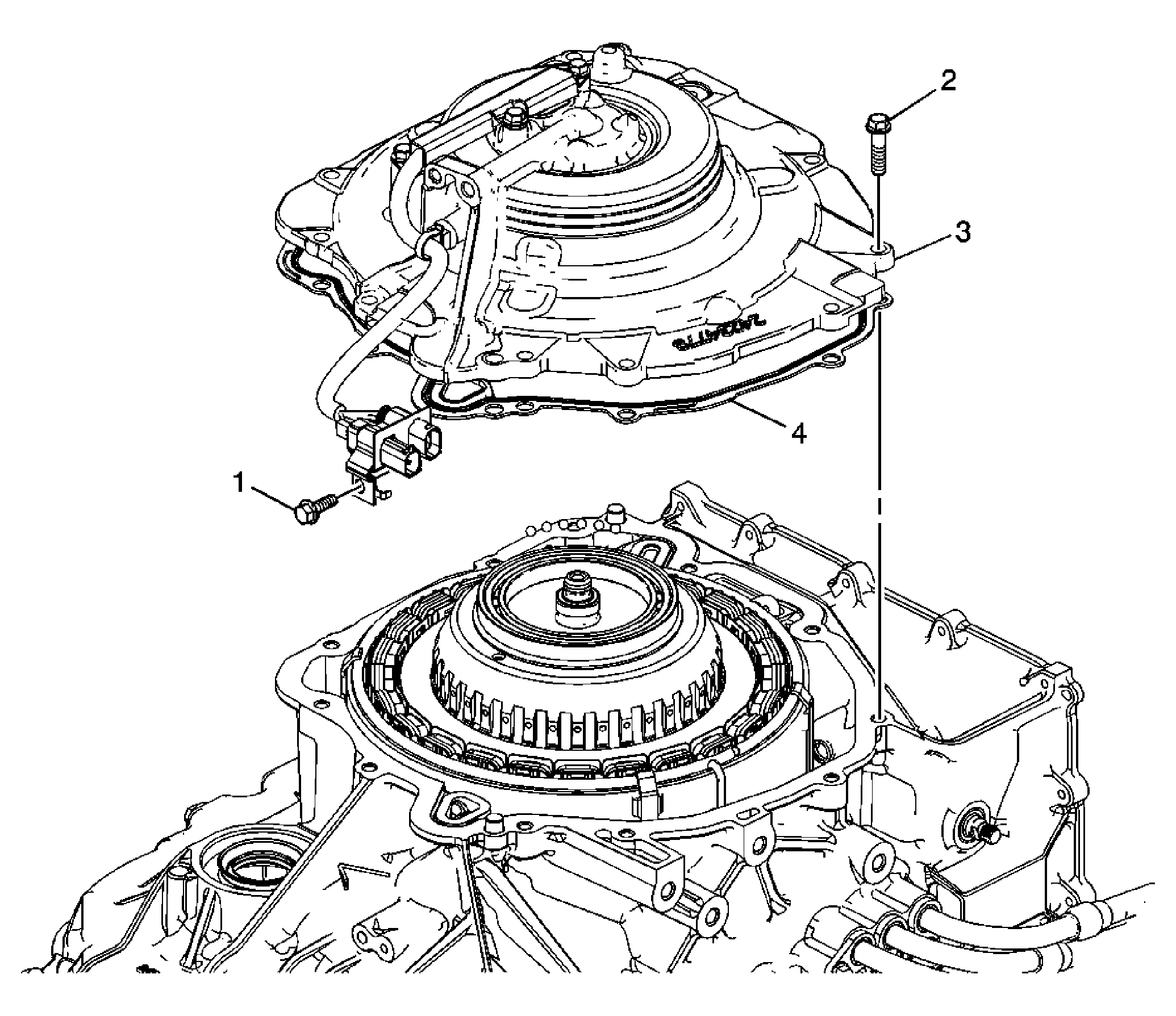

Case Cover Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
A/Trans Wiring Harness Shield Bolt M6 x 20 mm (Qty: 1) - External |
| 2 |
A/Trans Case Cover Bolt M8 x 30 mm (Qty: 11) |
| 3 |
A/Trans Case Cover Assembly |
| 4 |
A/Trans Case Cover Gasket |
