Case Cover Assembly Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

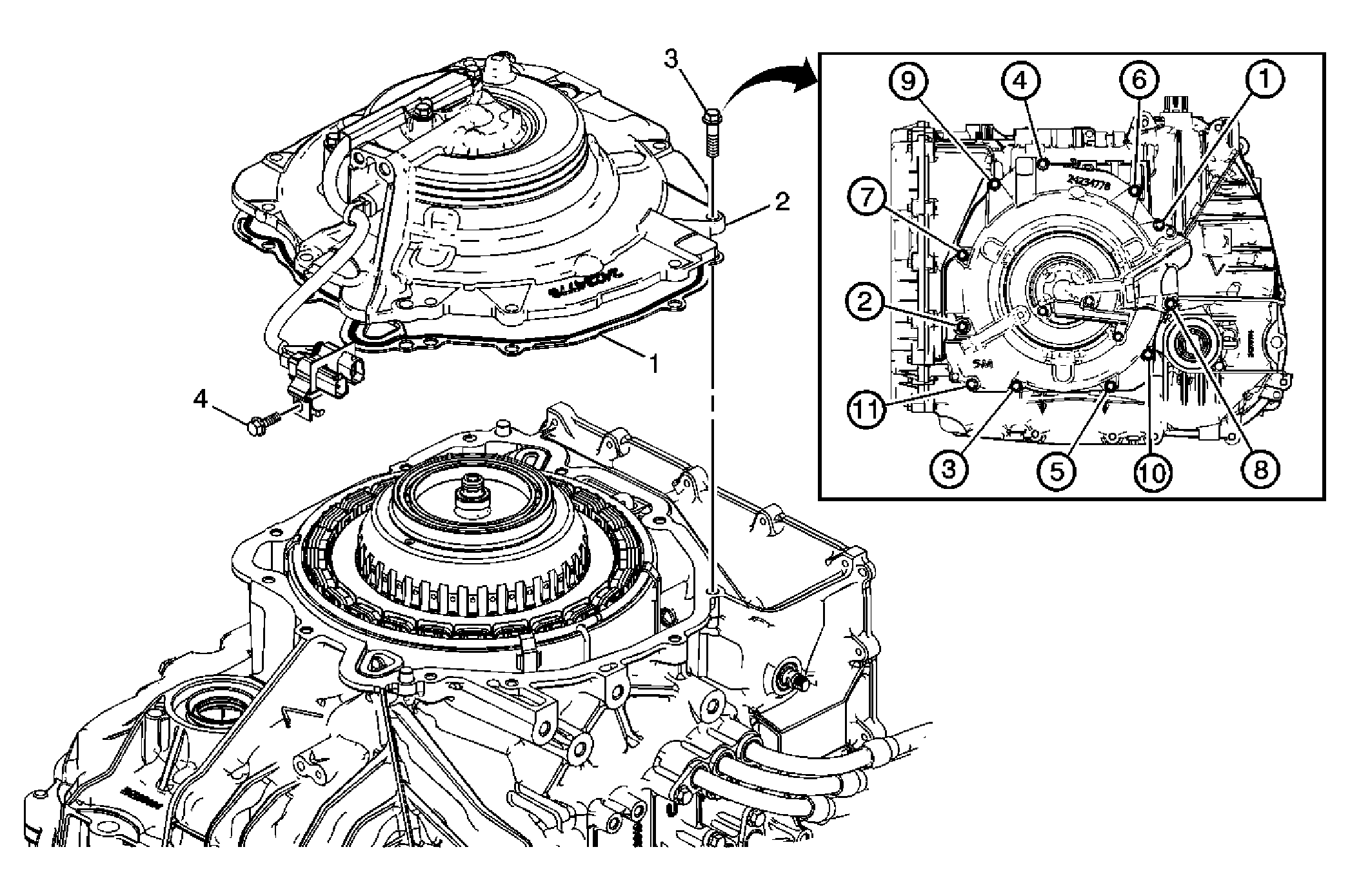

| Callout | Component Name |
|---|---|
| 1 | A/Trans Case Cover Gasket |
| 2 | A/Trans Case Cover Assembly Tip: May need to align bolt holes. |
| 3 | A/Trans Case Cover Bolt M8 x 30 mm (Qty: 11)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten the bolts in sequence shown. Tighten: 22 N.m (16 lb ft) |
| 4 | A/Trans Wiring Harness Shield Bolt M6 x 20 mm (Qty: 1) External Tighten: 9 N.m (80 lb in) |
