4th Clutch Piston Apply Ring and Clutch Plate Assemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

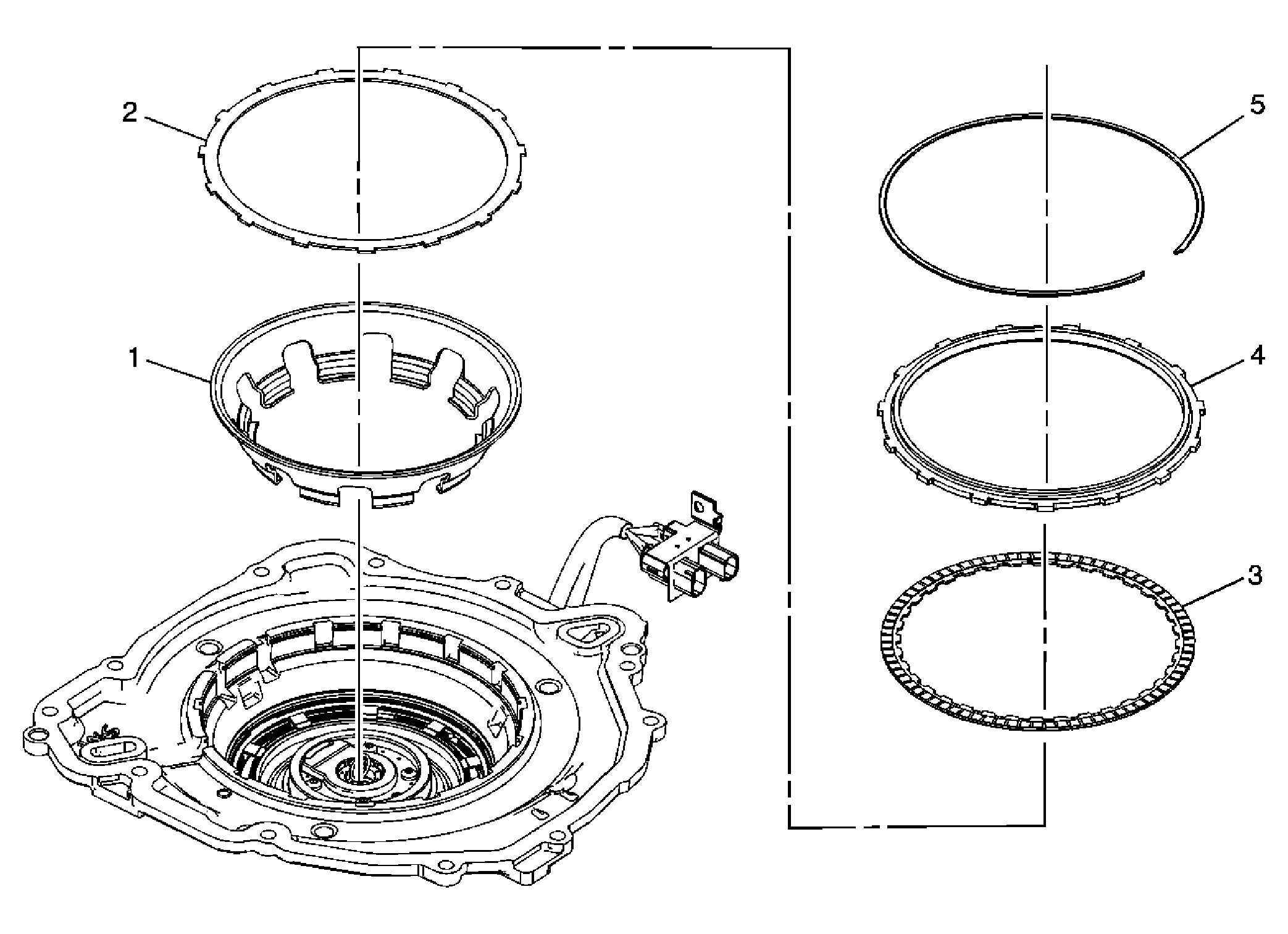

Courtesy of GENERAL MOTORS CORP. 4th Clutch Piston Apply Ring and Clutch Plate Assemble
| Callout |
Component Name |
| 1 |
4th Clutch Piston Apply Ring |
| 2 |
4th Clutch Plate |
| 3 |
4th Clutch Plate Assembly |
| 4 |
4th Clutch Backing Plate |
| 5 |
4th Clutch Backing Plate Retaining Ring |
