Electric Auxiliary Pump Drive Motor Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

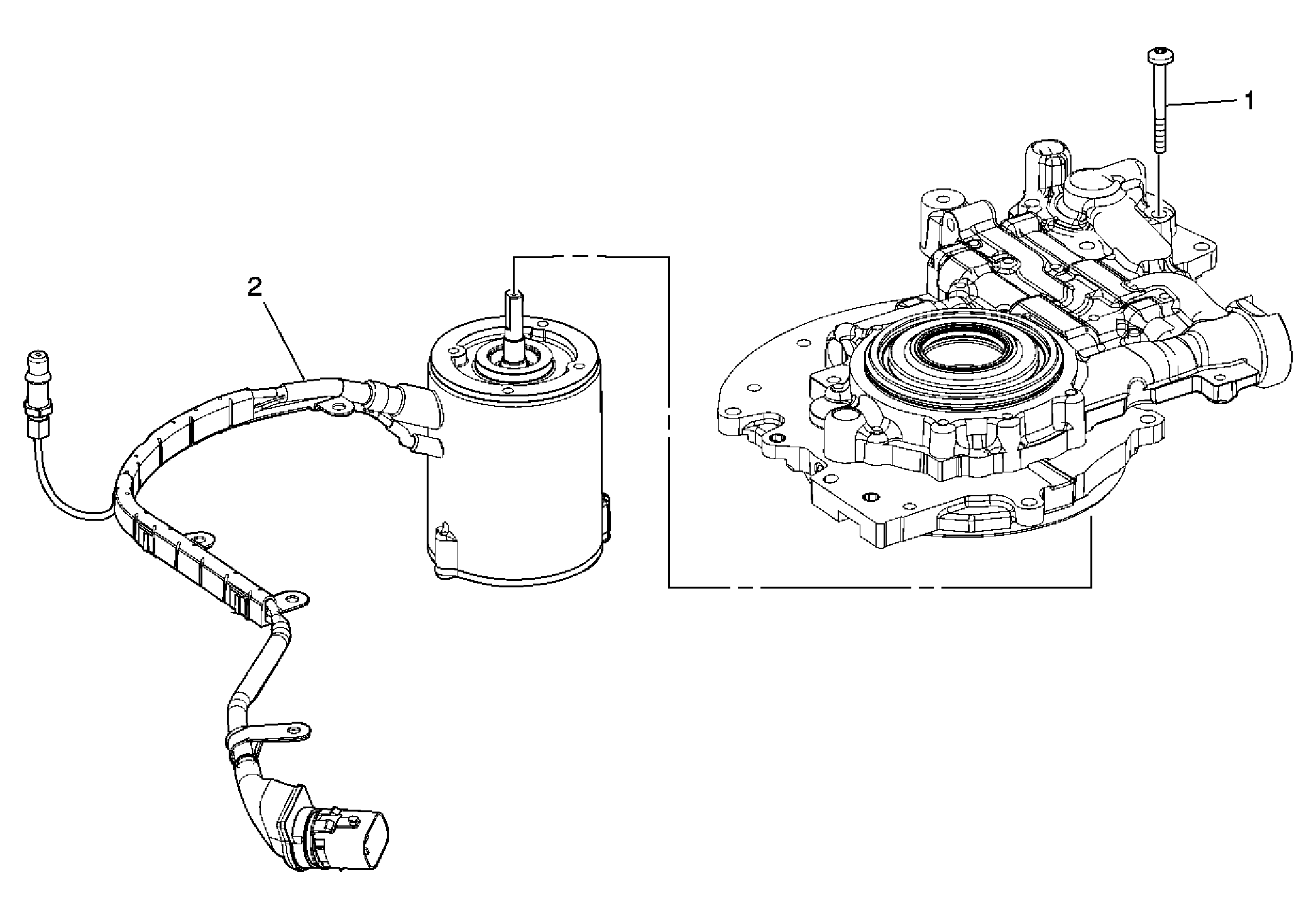

Courtesy of GENERAL MOTORS CORP. Electric Auxiliary Pump Drive Motor Removal
| Callout |
Component Name |
| 1 |
A/Trans Auxiliary Fluid Pump Bolt M6 x 45 mm (Qty: 4) |
| 2 |
Electric Auxiliary Pump Drive Motor Assembly |
