Electric Auxiliary Pump Drive Motor Assemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

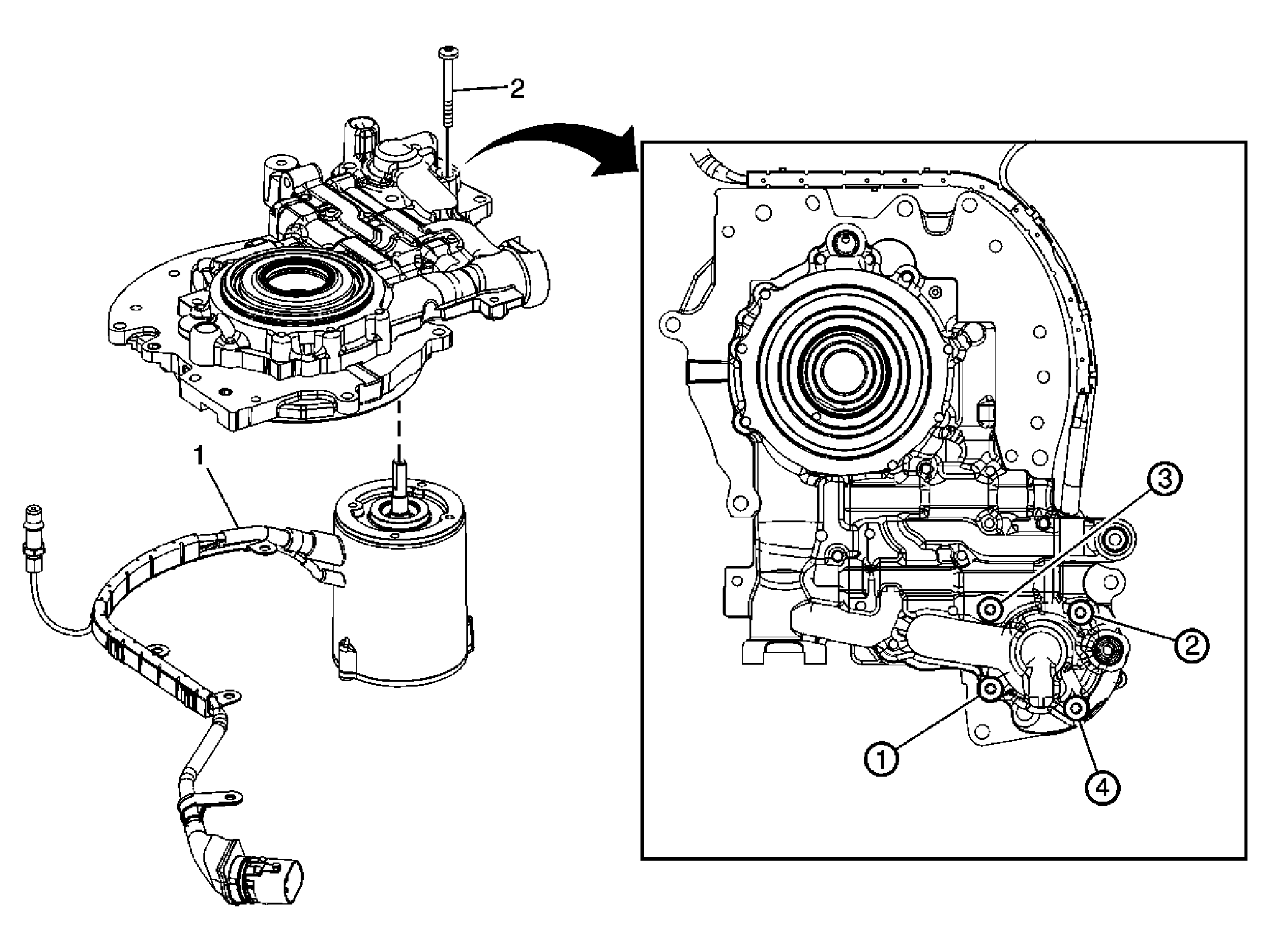

Courtesy of GENERAL MOTORS CORP. Electric Auxiliary Pump Drive Motor Assemble
| Callout |
Component Name |
| 1 |
Electric Auxiliary Pump Drive Motor Assembly |
| 2 |
A/Trans Auxiliary Fluid Pump Bolt M6 x 45 (Qty: 4)
Procedure:
Tighten the bolts in sequence shown.Tighten:
9 N.m (80 lb in)
|
