1-3-Reverse Clutch Piston Air Check

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

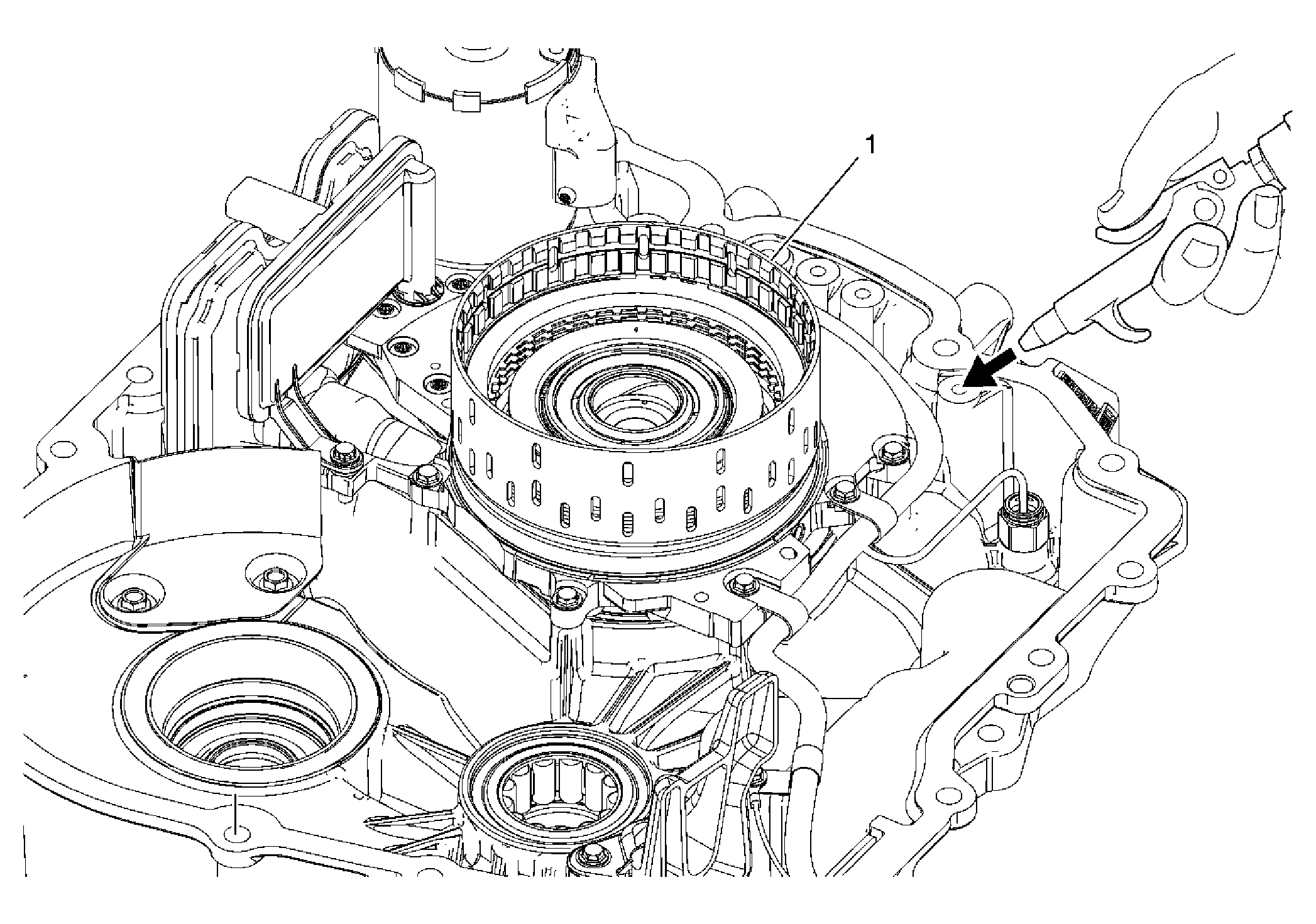

Fig 1: 1-3-Reverse Clutch Piston

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Procedure: Apply shop air to the 1-3 Reverse Clutch. Observe the piston movement.
1	1-3 Reverse Clutch Assembly CAUTION: Regulate the air pressure to 40 psi maximum. High pressure could cause the piston to over travel and damage the piston seals. Tip: Minimal piston movement and excessive air leaking could indicate damage to the seals or improper assembly.
