1-3-Reverse Clutch Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

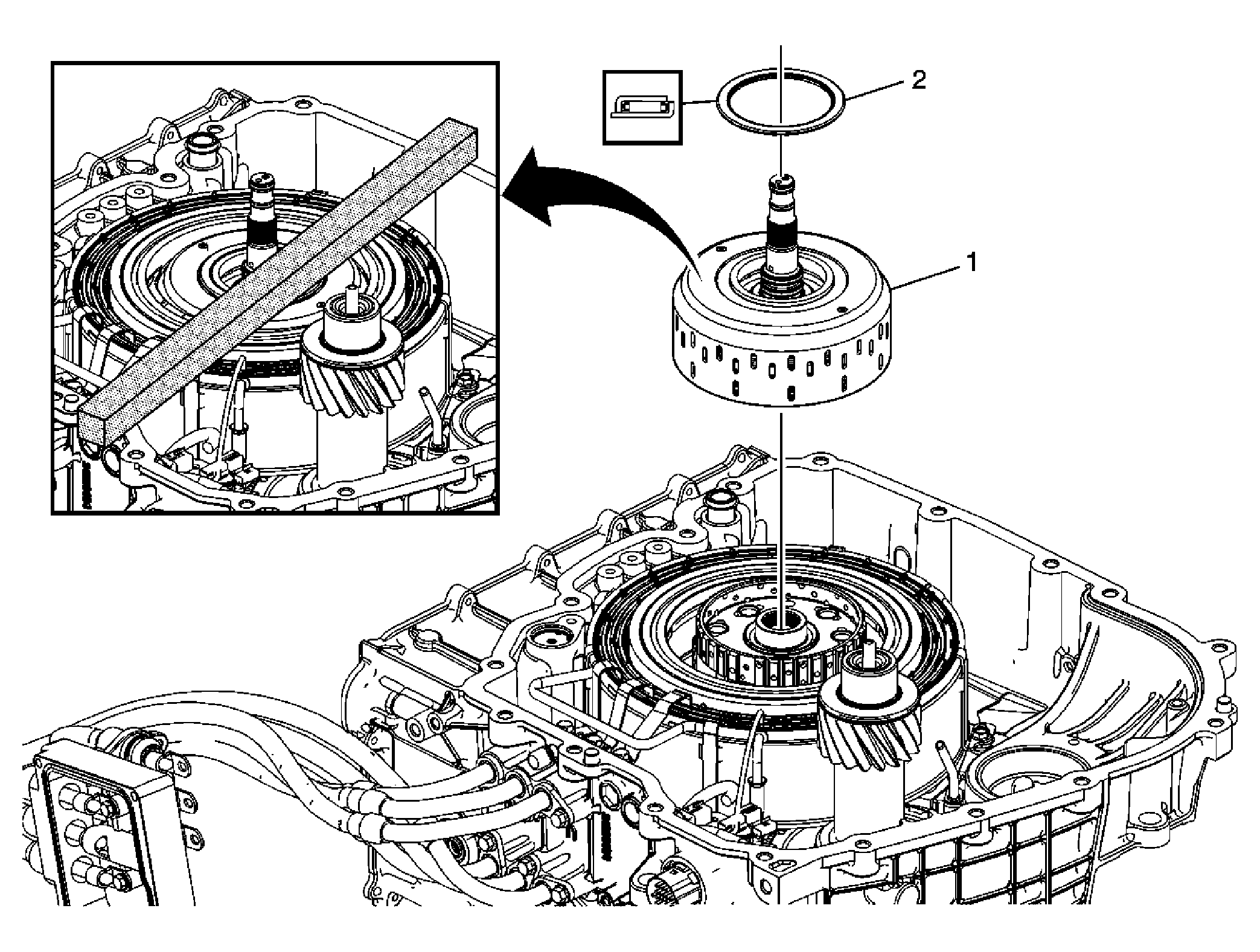

| Callout | Component Name |
|---|---|
| 1 | 1-3 Reverse Clutch Assembly Tip: When fully seated the clutch assembly will be flush with the case sealing surface, verify by using a flat bar. Special Tool: J 34673: Flat Gage Bar For equivalent regional tools, refer to Special Tools . |
| 2 | 1-3 Reverse Clutch Thrust Bearing Assembly |
