1-3 Reverse Clutch Piston and Spring Disassemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
1-3 Reverse Clutch Piston and Spring Disassemble

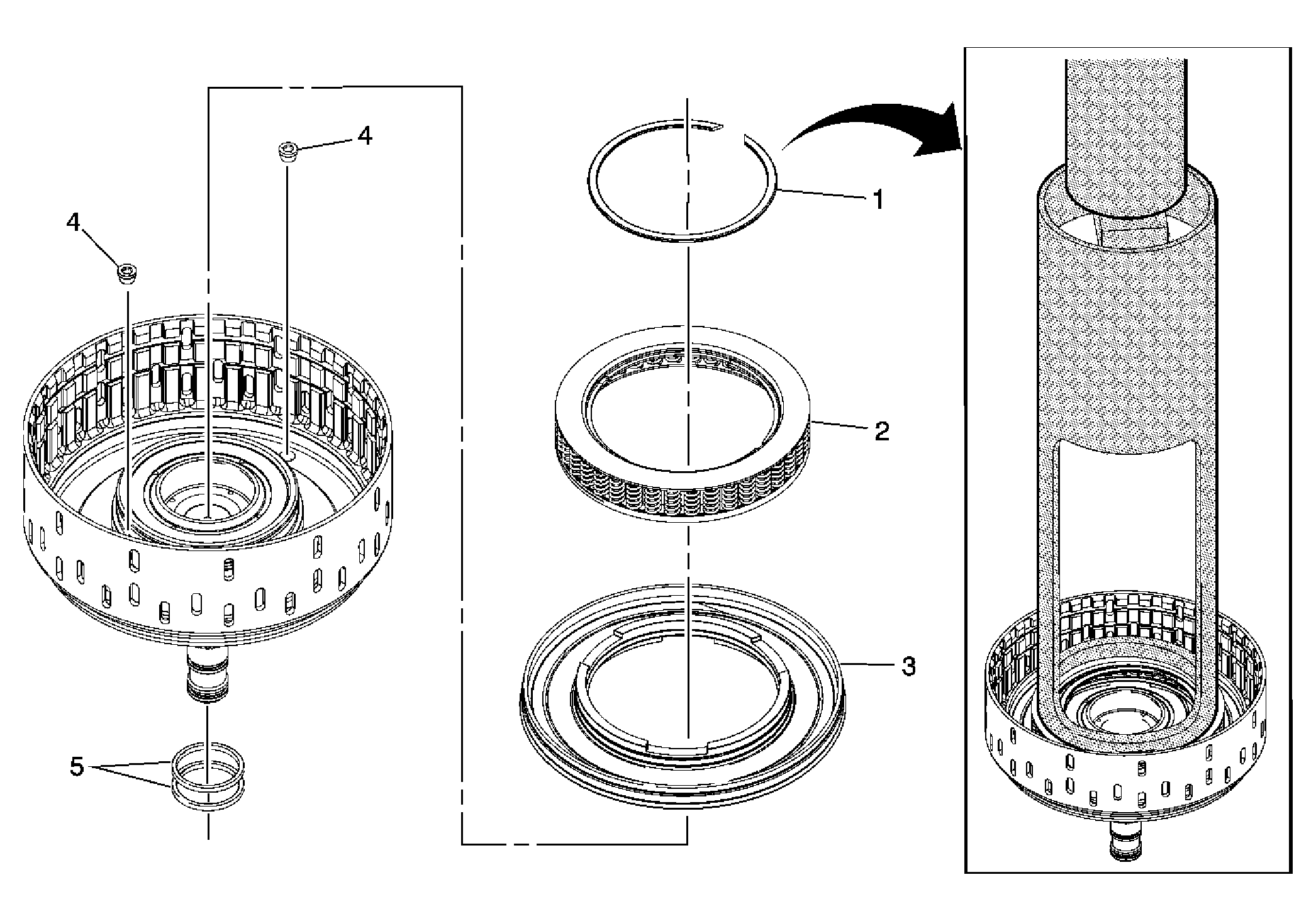

| Callout | Component Name |
|---|---|
| 1 | 1-3 Reverse Clutch Spring Retaining Ring Special Tools: DT-47693-2: Dam Protector For equivalent regional tools, refer to Special Tools . |
| 2 | 1-3 Reverse Clutch Spring |
| 3 | 1-3 Reverse Clutch Piston |
| 4 | 1-3 Reverse Clutch Housing Ball Valve |
| 5 | Input Shaft Seal |
