1-3 Reverse Clutch Assemble

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

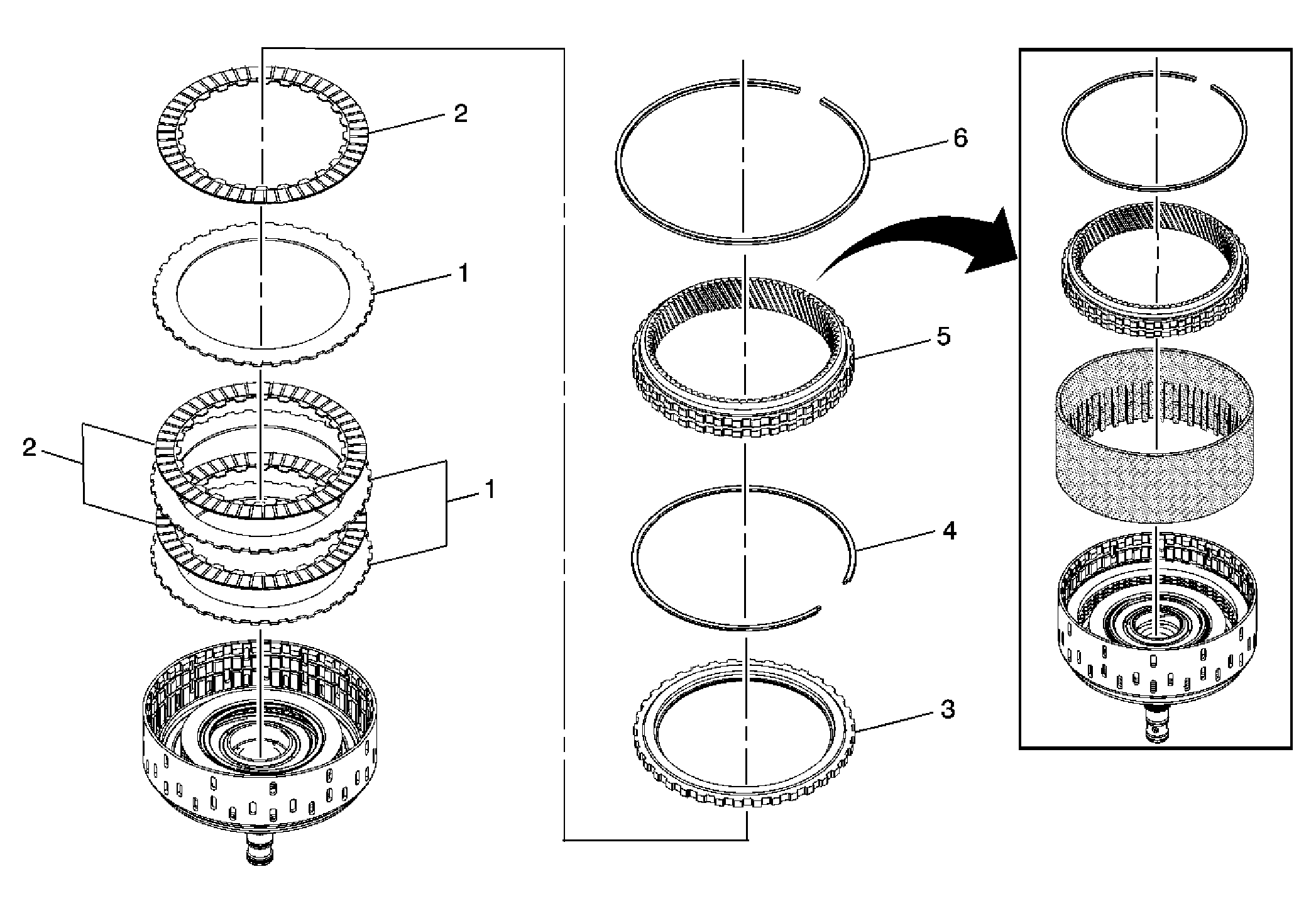

Fig 1: 1-3 Reverse Clutch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	1-3 Reverse Clutch Plate
2	1-3 Reverse Clutch Plate Assembly
3	1-3 Reverse Clutch Backing Plate
4	1-3 Reverse Clutch Backing Plate Retaining Ring - Selective
5	Input Internal Gear Special Tools: DT-49467: Retaining Ring Installer For equivalent regional tools, refer to Special Tools .
6	Input Internal Gear Retaining Ring Tip: Ensure splines are aligned. Start the opposite side of the retaining ring gap first then work both ends evenly while pushing the internal gear down.
