Electronic Component Description: Notes
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

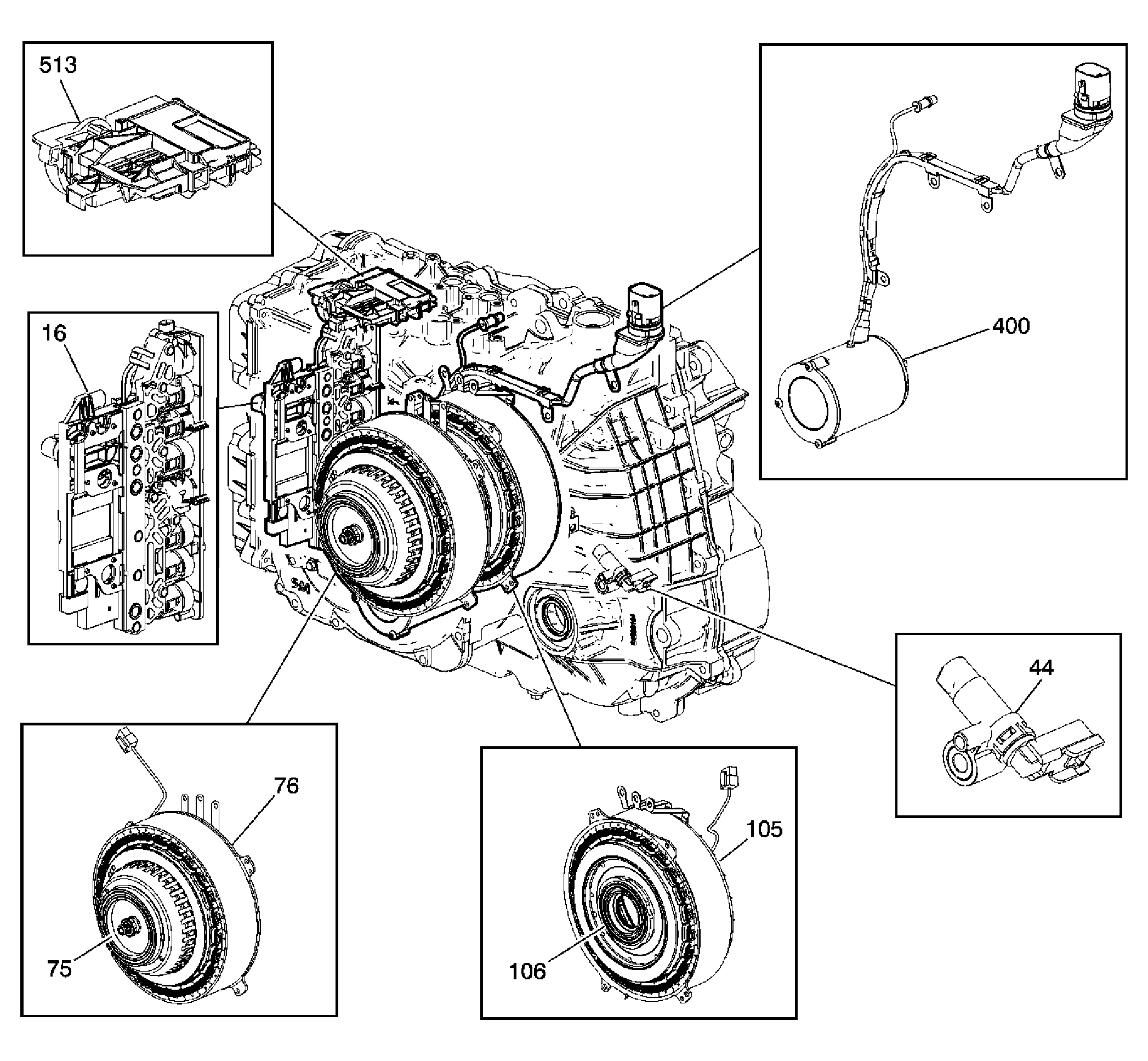

| Callout | Component Name |
|---|---|
| 16 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 44 | A/Trans Output Speed Sensor Assembly, internal to transmission |
| 75 | Drive Motor/Generator Rotor Assembly -Unit B |
| 76 | Drive Motor/Generator Stator Assembly -Unit B |
| 105 | Generator/Drive Motor Stator Assembly -Unit A |
| 105 | Generator/Drive Motor Rotor Assembly -Unit A |
| 400 | Electric Auxiliary Pump Drive Motor Assembly |
| 513 | A/Trans Manual Shaft Position Switch Assembly |
