Drive Range, Third Gear - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

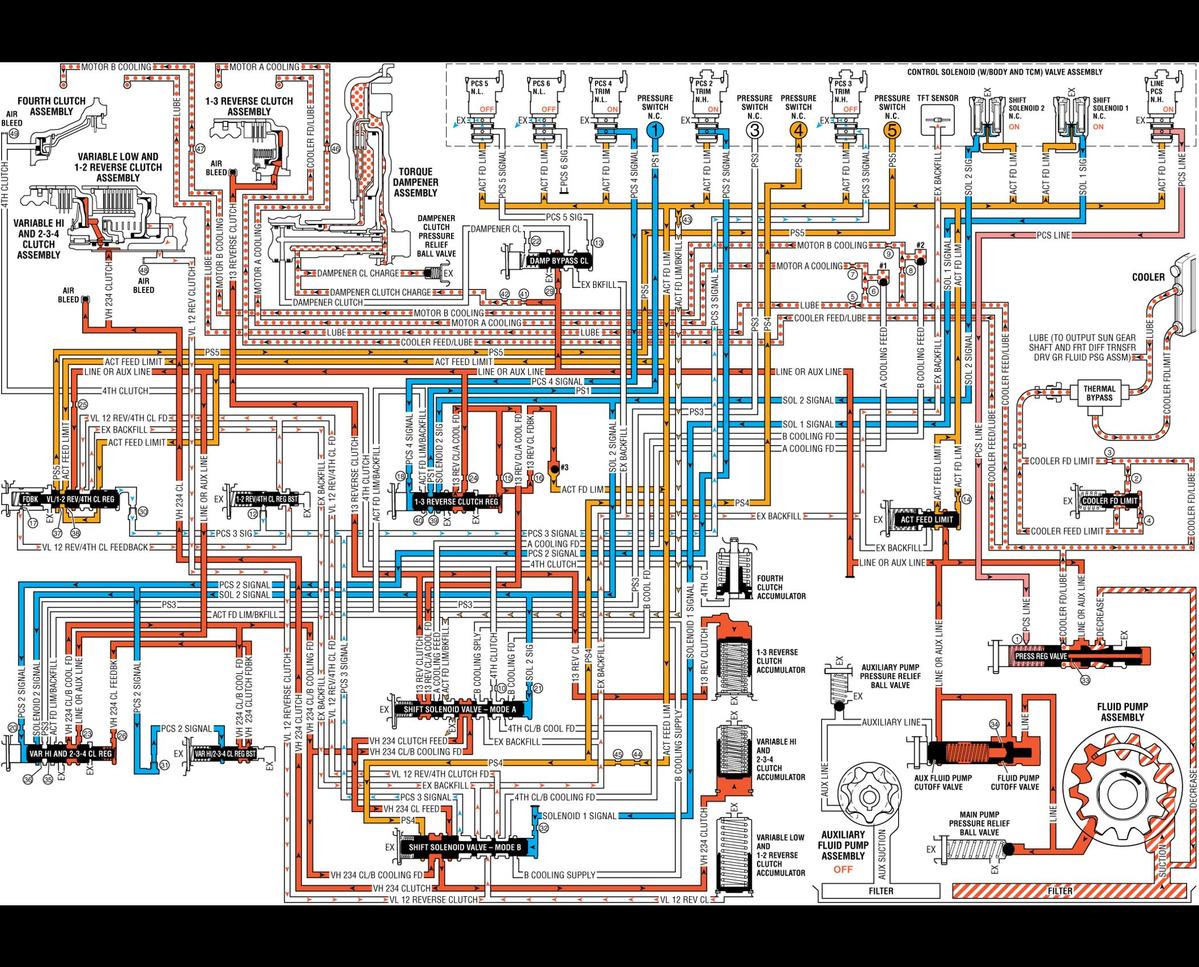

Fig 1: Drive Range, Third Gear
GM2195007Courtesy of GENERAL MOTORS CORP.
