Hybrid Cooling Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

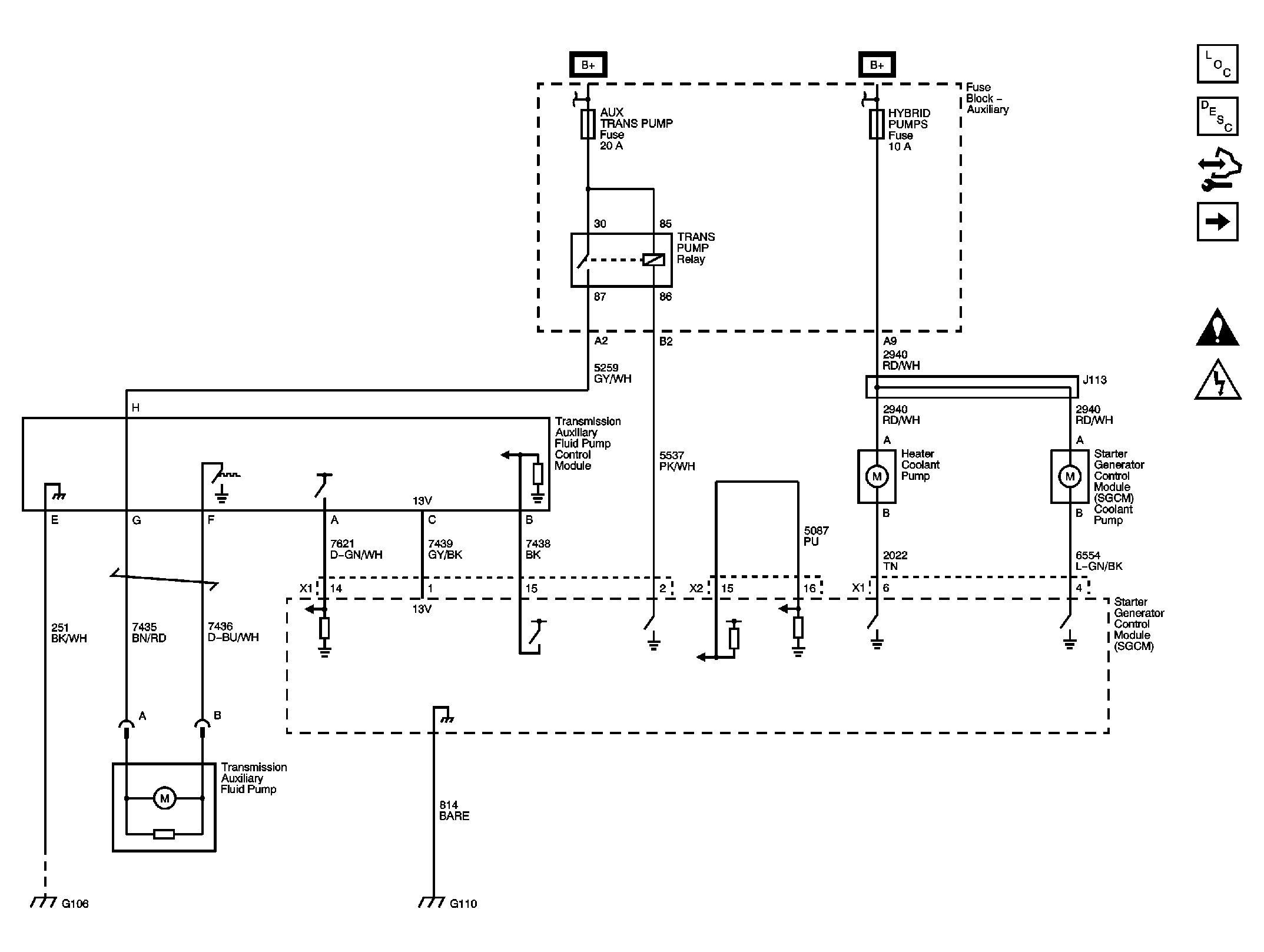

Fig 1: Pump Driver and Pumps
GM2079934Courtesy of GENERAL MOTORS CORP.

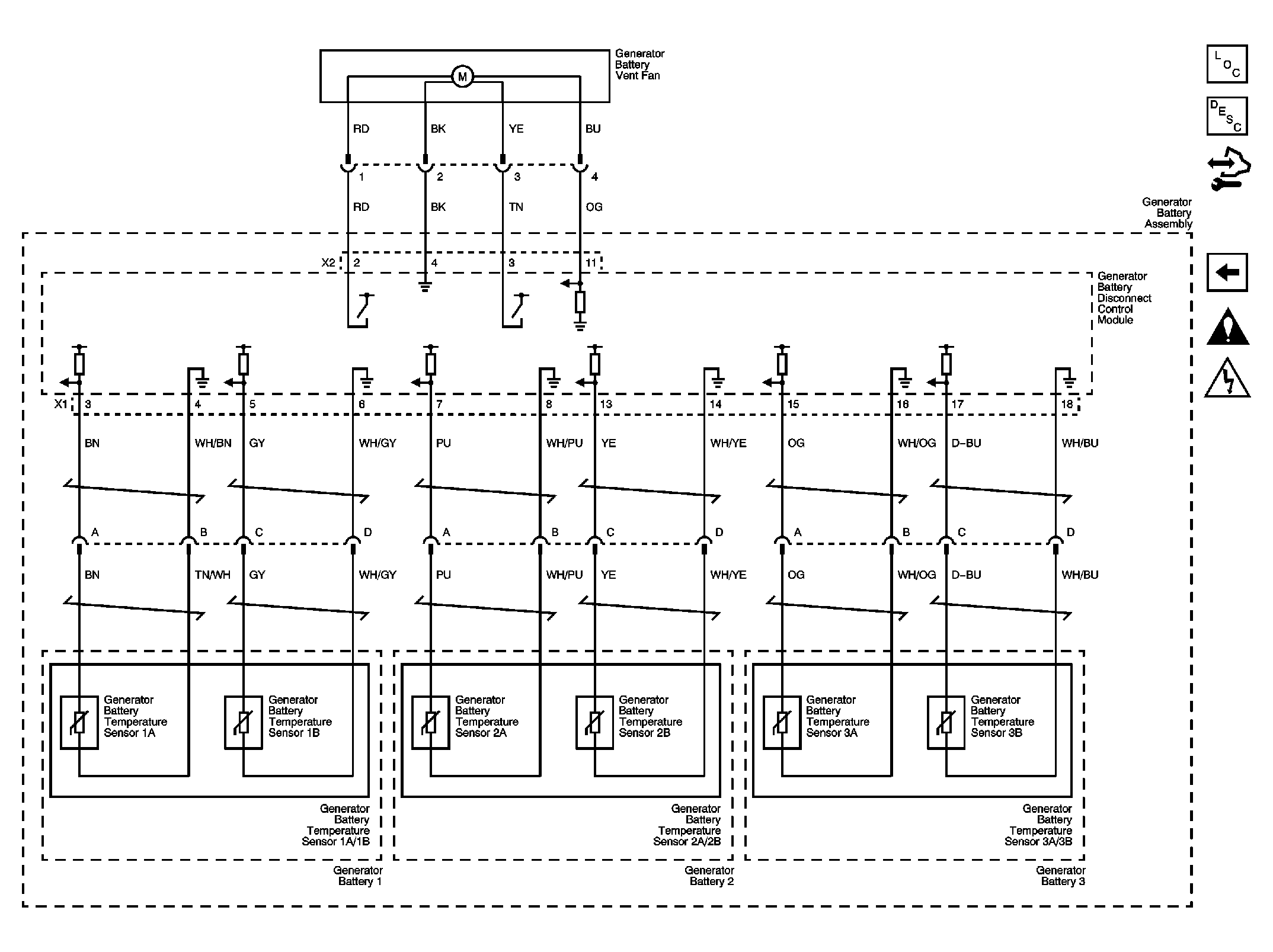

Fig 2: Temperature Sensors and Vent Fan
GM2079940Courtesy of GENERAL MOTORS CORP.
