Generator Control Module Coolant Pump Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

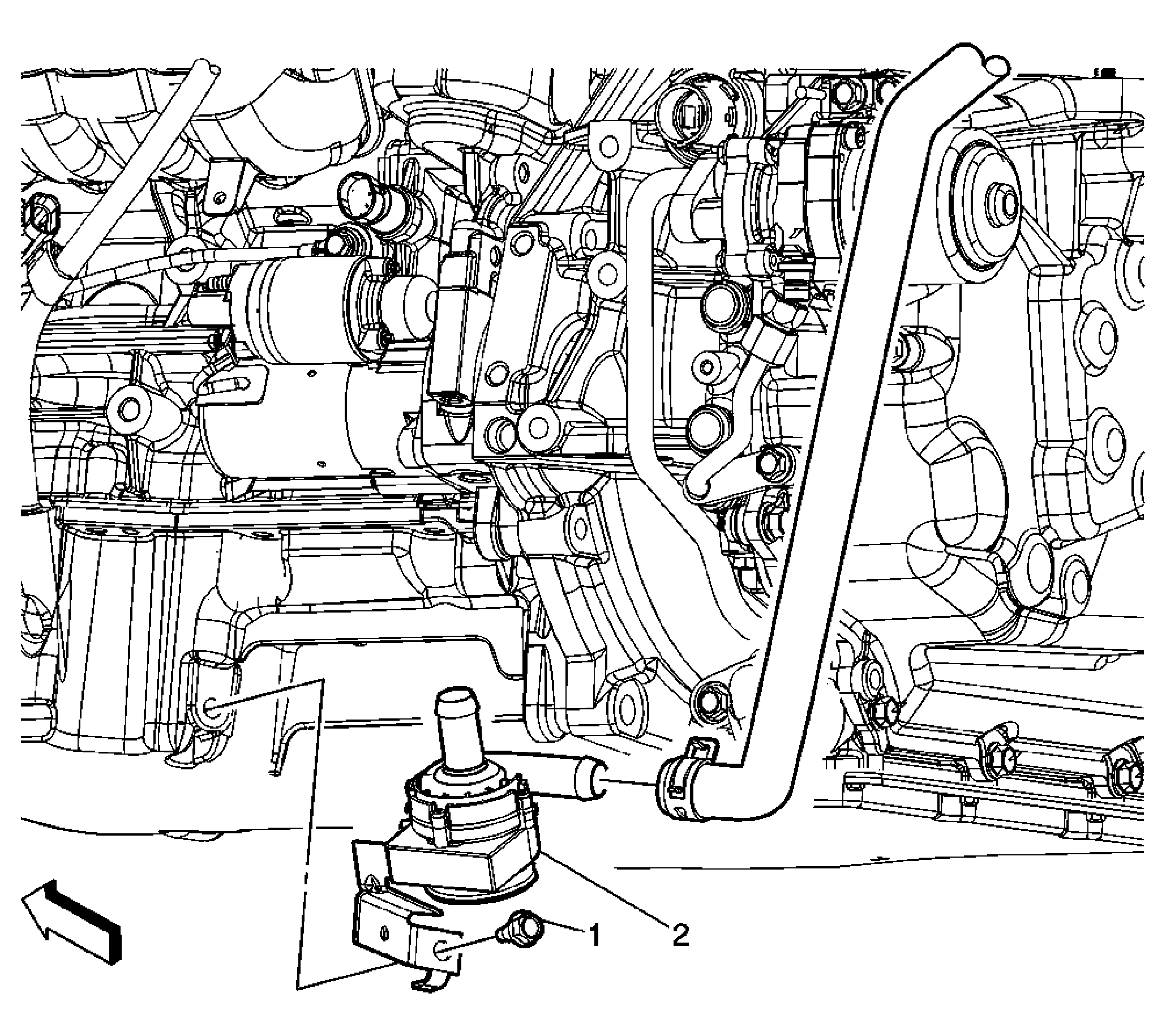

Fig 1: Generator Control Module Coolant Pump

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Generator Control Module Coolant Pump Bolt CAUTION: Refer to Fastener Caution . Tighten: 22 N.m (16 lb ft)
2	Generator Control Module Coolant Pump Tip: Using SA9111E reposition the hose clamps on the generator control module coolant pump. Remove the hoses from the generator control module coolant pump. Special Tools: SA9111E Constant Force Clamp Pliers

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Generator Control Module Coolant Pump Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 22 N.m (16 lb ft)

Generator Control Module Coolant Pump
Tip:

Using SA9111E reposition the hose clamps on the generator control module coolant pump.
Remove the hoses from the generator control module coolant pump.

Special Tools:
SA9111E Constant Force Clamp Pliers
