Generator Control Module Coolant Pump Hose Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

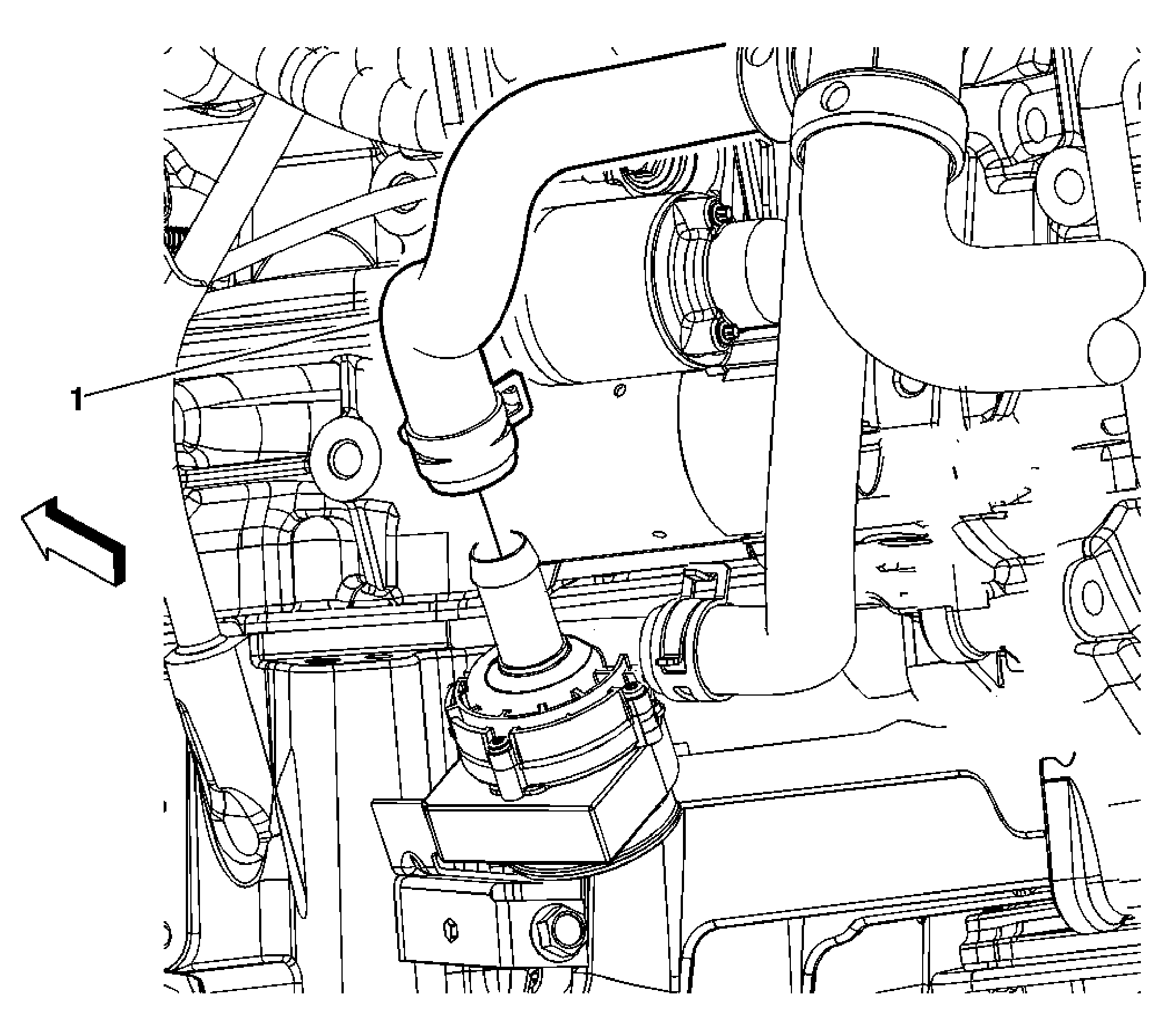

Fig 1: Generator Control Module Coolant Pump Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . IMPORTANT: This hose is integral to the radiator outlet hose and must replaced as an assembly.
1	Generator Coolant Pump Inlet Hose Tip: Using SA9111E reposition the generator coolant pump inlet hose clamps.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

IMPORTANT: This hose is integral to the radiator outlet hose and must replaced as an assembly.

Generator Coolant Pump Inlet Hose
Tip: Using SA9111E reposition the generator coolant pump inlet hose clamps.
