Generator Control Module Coolant Hose Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

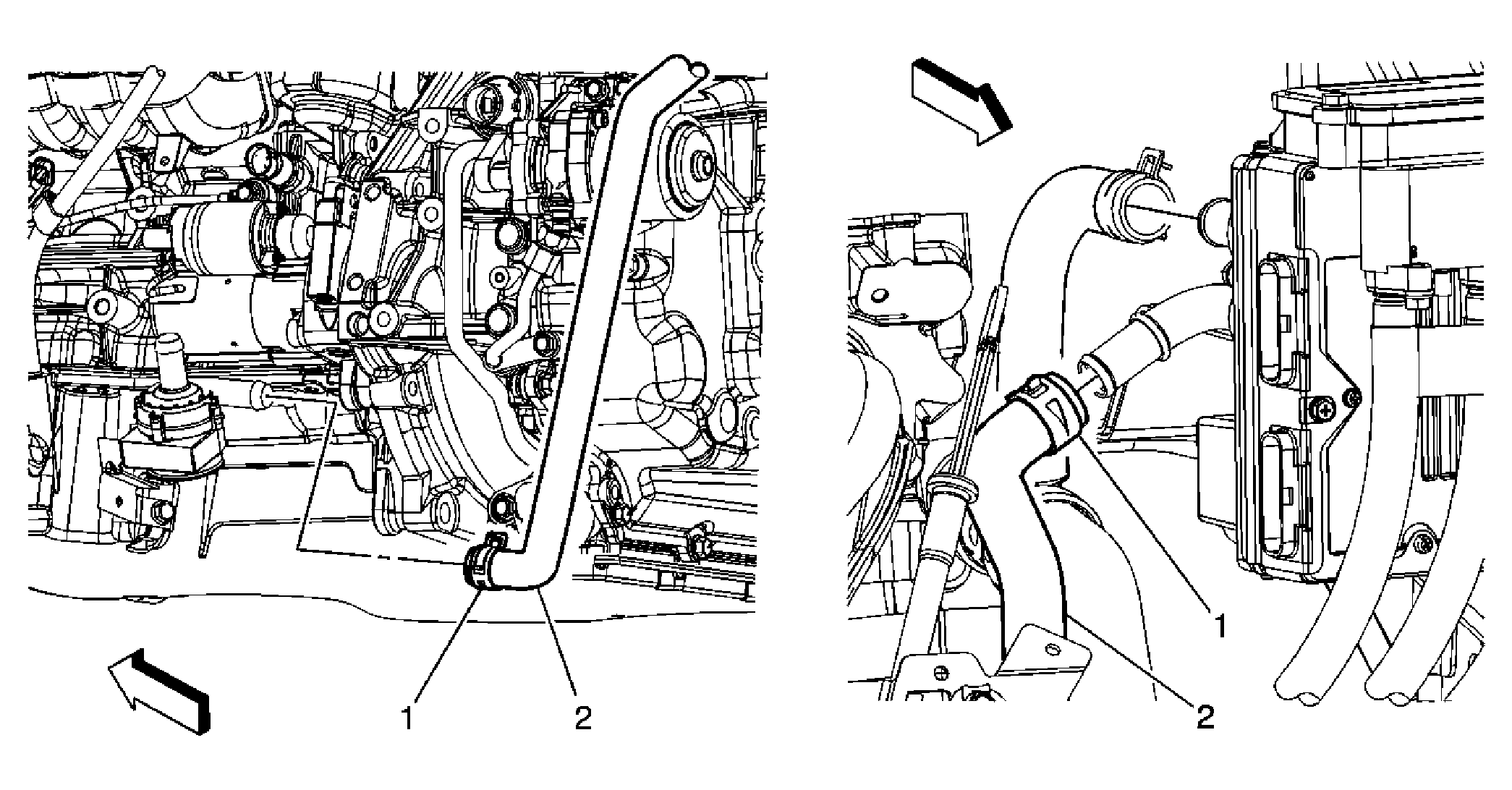

Fig 1: Generator Control Module Coolant Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Generator Coolant Inlet Hose Clamp (Qty: 2) Tip: Using SA9111E reposition the generator coolant inlet hose clamps. Special Tools: SA9111E Constant Force Clamp Pliers
2	Generator Coolant Inlet Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Generator Coolant Inlet Hose Clamp (Qty: 2)
Tip: Using SA9111E reposition the generator coolant inlet hose clamps.
Special Tools:
SA9111E Constant Force Clamp Pliers

Generator Coolant Inlet Hose
