Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

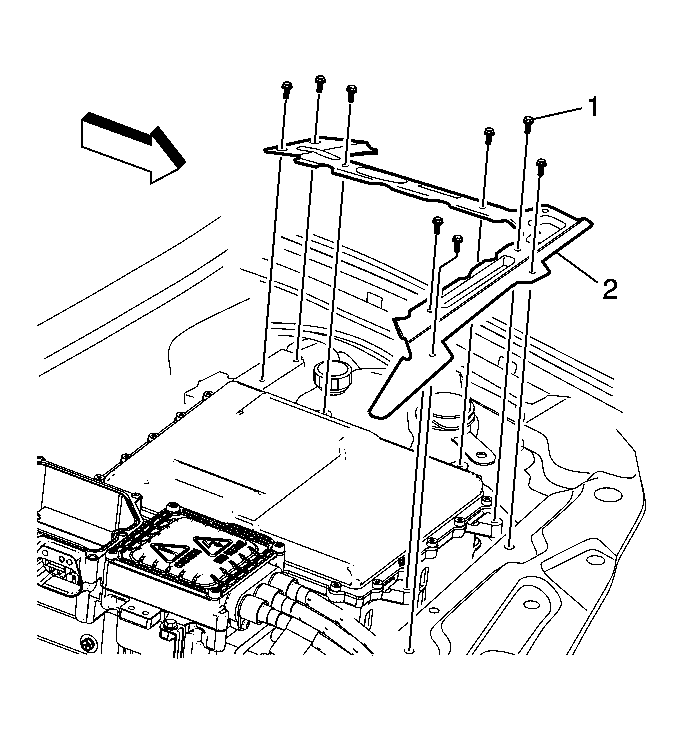

    Fig 1: Generator Control Module Bracket
    GM2175884Courtesy of GENERAL MOTORS CORP.
  1. Remove the windshield washer solvent container filler tube assembly bolt.
  2. Remove the drive motor generator control module assembly support retaining bolts (1).
  3. Remove the drive motor generator control module assembly support (2).
