Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: APM Ground Strap & Bolt
    GM2175737Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive motor generator control module from the vehicle. Refer to Drive Motor Generator Control Module Assembly Replacement .
  2. Remove the APM ground strap bolt (1) and ground strap (2).
  3. Fig 2: Coolant Pipe Hoses
    GM2175730Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant pipe hoses (1).
  5. CAUTION: The module must be drained of all residual coolant prior to disassembly. Failure to properly drain all residual coolant may cause electronic circuit damage to occur during disassembly.
    NOTE: Place a container under the coolant outlet pipe to capture the escaping coolant.
  6. Drain the drive motor generator control module assembly of residual coolant by applying 30 psi regulated compressed air to the coolant inlet pipe until no coolant remains.

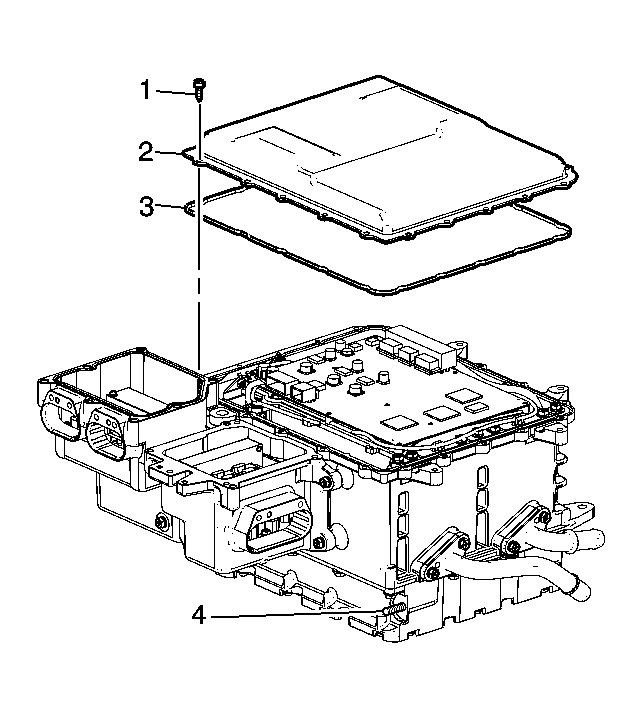

  7. Fig 3: PIM Cover, Seal & Bolts
    GM2175731Courtesy of GENERAL MOTORS CORP.
  8. Remove the drive motor generator power inverter control module (PIM) cover bolts (1).
  9. Remove the PIM cover (2). Discard the cover seal (3).
  10. NOTE: A service replacement APM does not have the engine coolant recovery reservoir support stud installed. Remove and save the stud for installation onto the replacement APM.
  11. Remove the engine coolant recovery reservoir support stud (4), if necessary.
  12. Fig 4: Accessory DC Power Control Module (APM) Terminal Fasteners & Cooling Surge Tank Stud
    GM2175732Courtesy of GENERAL MOTORS CORP.
    CAUTION: Always remove and install the High Voltage terminal fasteners with a magnet tipped socket. Never touch the exposed electronic circuit board surface or components. Dropped fasteners or physical contact may result in electronic circuit board damage.
  13. Remove the HV dc accessory DC power control module (APM) terminal fasteners (1) utilizing a magnetic socket.

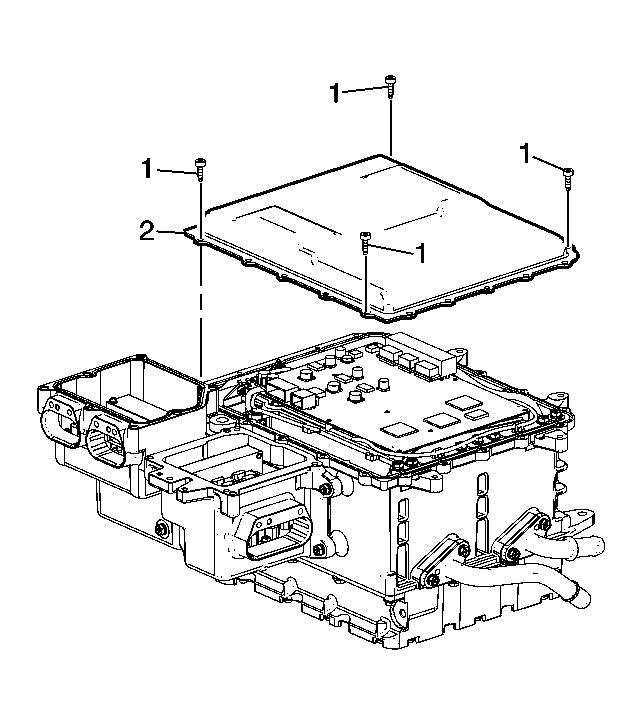

  14. Fig 5: PIM Cover
    GM2175734Courtesy of GENERAL MOTORS CORP.
  15. Temporarily install the PIM cover (2) with 4 finger-tightened bolts (1).

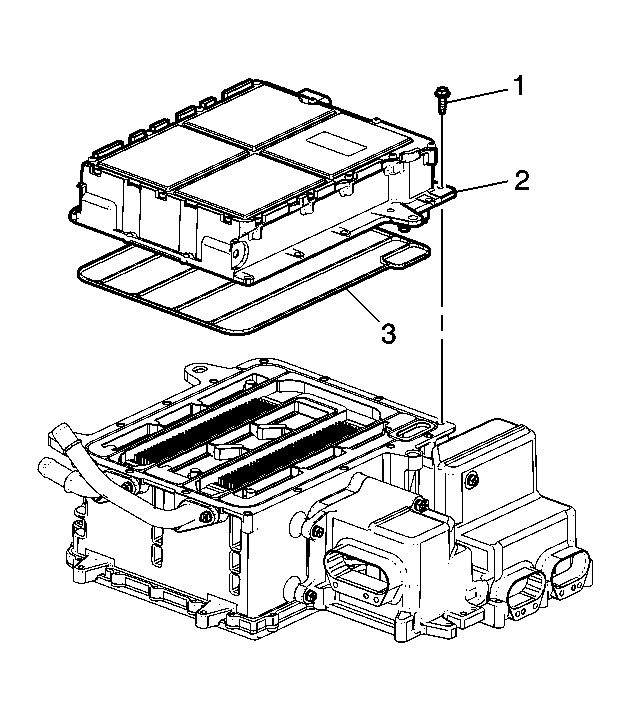

  16. Fig 6: Drive Motor Generator Control Module Assembly & Coolant Seal
    GM2175738Courtesy of GENERAL MOTORS CORP.
  17. Rotate the drive motor generator control module assembly onto the PIM cover.
  18. Remove the accessory DC power control module (APM) bolts (1).
  19. Remove the APM (2) and discard the coolant seal (3).
