Hybrid Controls Electronic Component Views
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

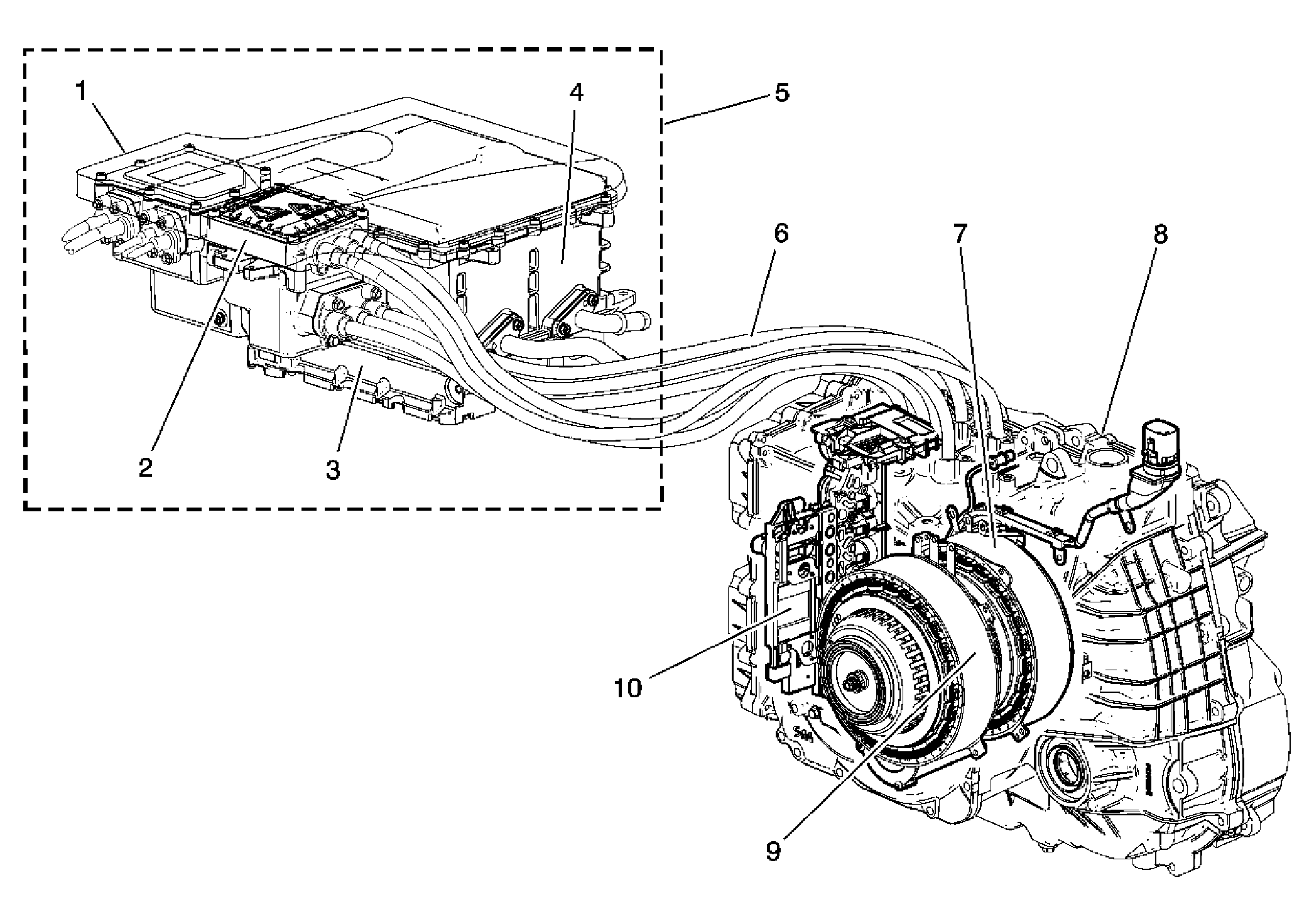

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Drive Motor Generator Power Inverter Module (PIM) Assembly |
| 2 |
Drive Motor Generator Power Inverter Module (PIM) 3 Phase Cable Terminal |
| 3 |
Accessory DC Power Control Module (APM) Assembly |
| 4 |
Hybrid Powertrain Control Module (HPCM) |
| 5 |
Drive Motor Generator Control Module Assembly |
| 6 |
Drive Motor Generator Power Inverter Module 3 Phase Cable Assembly |
| 7 |
Drive Motor/Generator Stator Assembly and Rotor Assembly - Unit A |
| 8 |
Automatic Transmission - 2MT70 |
| 9 |
Drive Motor/Generator Stator Assembly and Rotor Assembly - Unit B |
| 10 |
Control Solenoid (w/Body and TCM) Valve Assembly |
Courtesy of GENERAL MOTORS CORP.

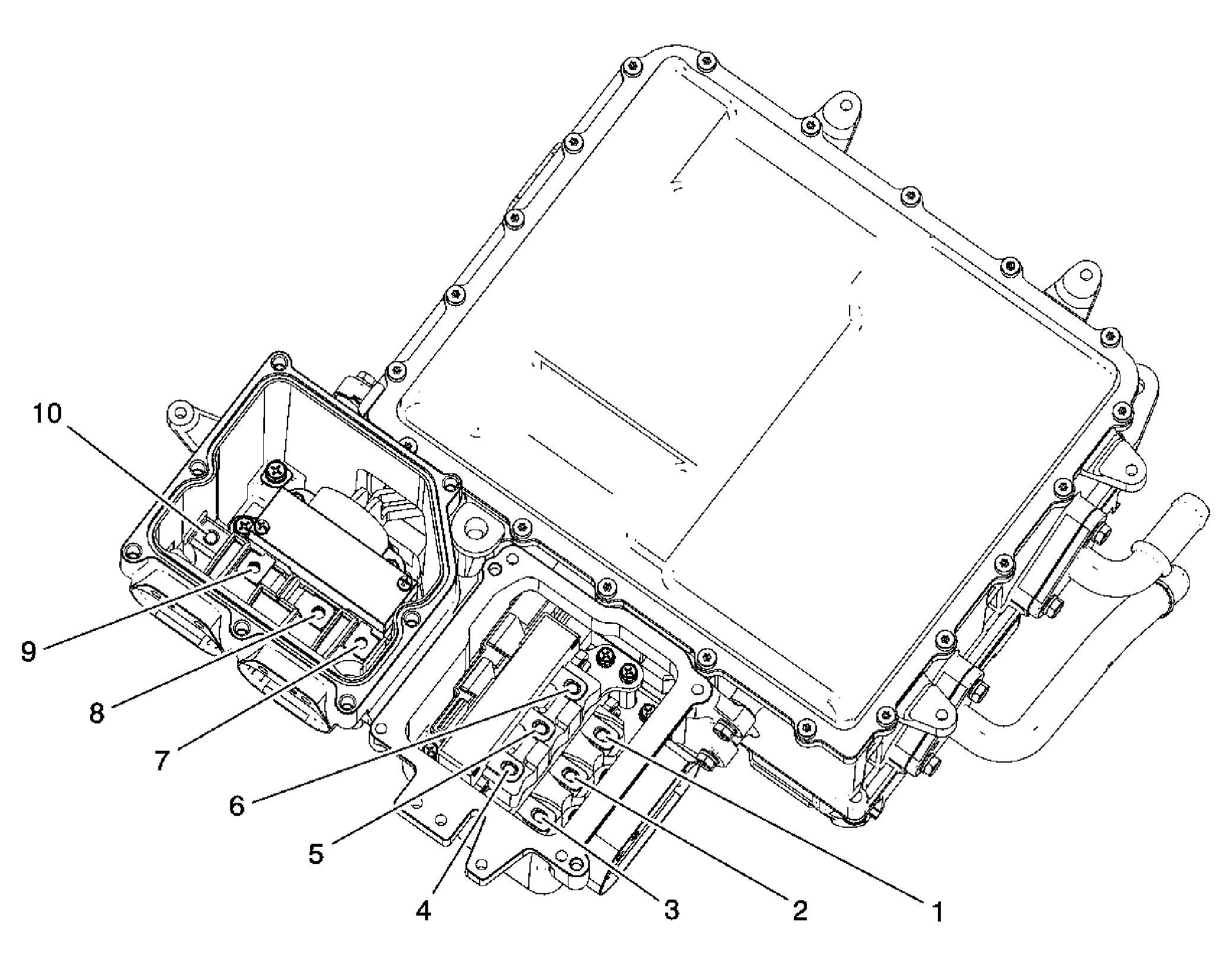

| Callout |
Component Name |
| 1 |
Motor 1 (A) Phase W |
| 2 |
Motor 1 (A) Phase V |
| 3 |
Motor 1 (A) Phase U |
| 4 |
Motor 2 (B) Phase U |
| 5 |
Motor 2 (B) Phase W |
| 6 |
Motor 2 (B) Phase V |
| 7 |
Air Conditioner Compressor 300 V B- |
| 8 |
Air Conditioner Compressor 300 V B+ |
| 9 |
Drive Motor Generator Battery 300 V B- |
| 10 |
Drive Motor Generator Battery 300 V B+ |
