Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

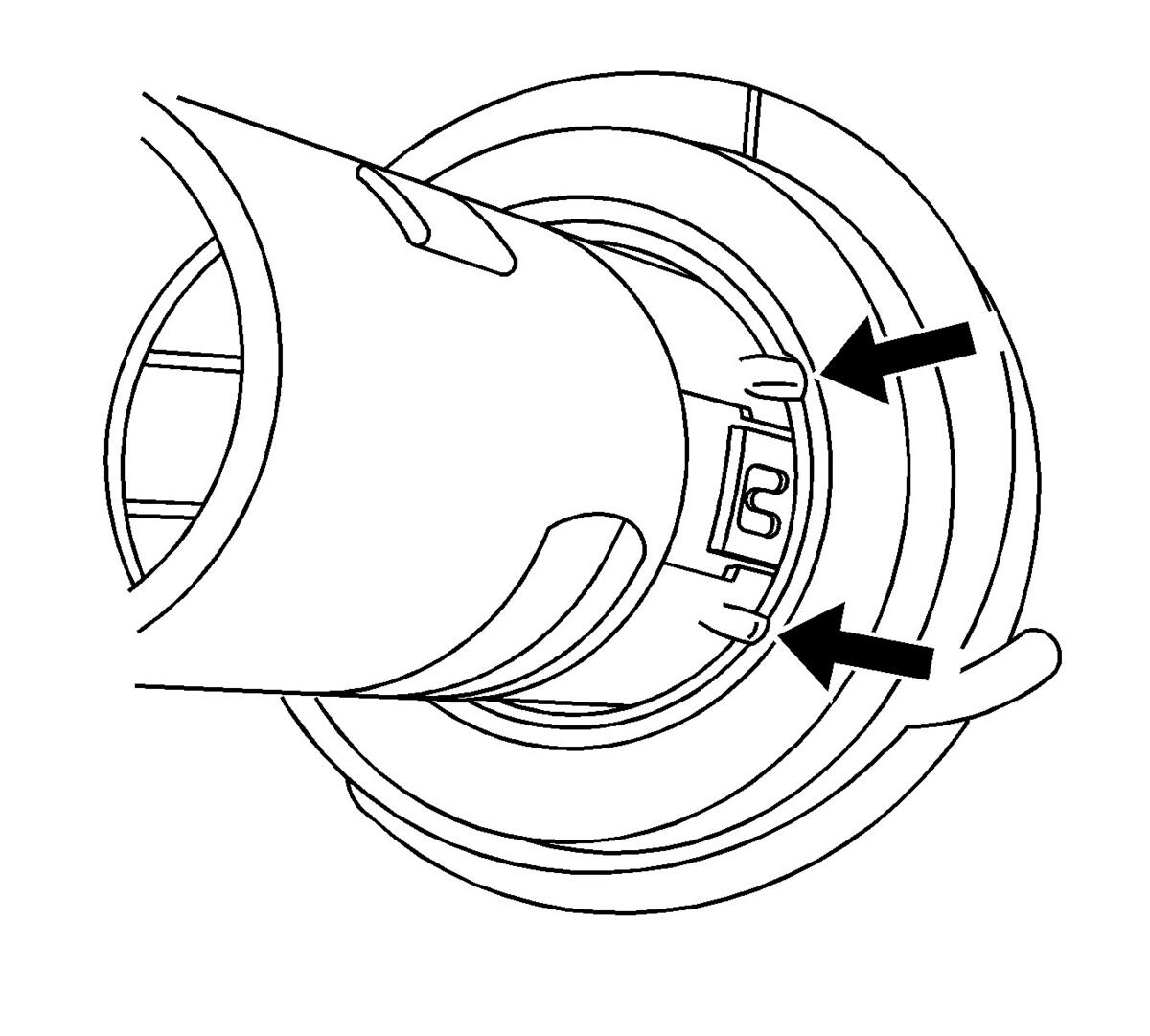

    Fig 1: View Of Receptacle Tabs & Retainer Slots
    GM901555Courtesy of GENERAL MOTORS CORP.
  1. Route the connector through the retainer. Align the accessory power receptacle retainer to the slot in the opening.
  2. Install the retainer by pressing into place fully seated.
  3. Connect the electrical connector to the receptacle.
  4. Align the tabs on the receptacle to the slots in the retainer. Install the accessory power receptacle by pressing into place until fully seated.
  5. Install the accessory power receptacle fuse.
