Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Throttle Body And Gasket
    GM1887844Courtesy of GENERAL MOTORS CORP.
  1. Position a NEW throttle body gasket (1) to the upper intake manifold.
  2. Position the throttle body (3) to the upper intake manifold.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body bolts (1). Tighten the bolts to 10 N.m (89 lb in).

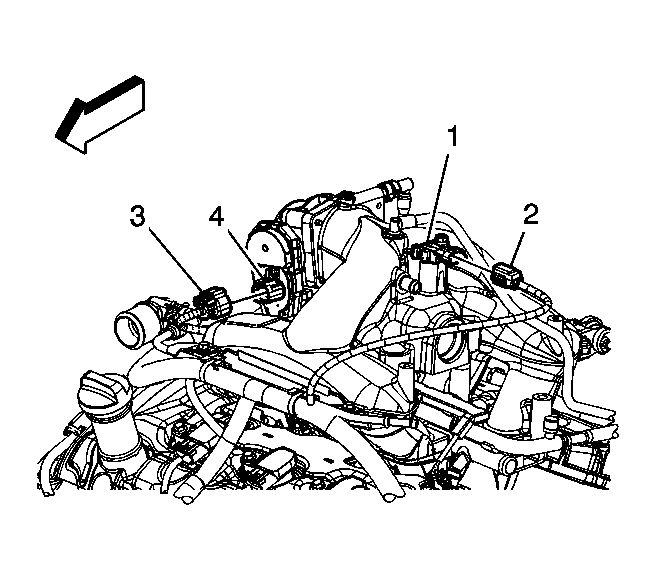

    4. Fig 2: Throttle Body
    GM1887829Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (3) to the throttle body (4).
  5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
