Accelerator Pedal Position Sensor Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

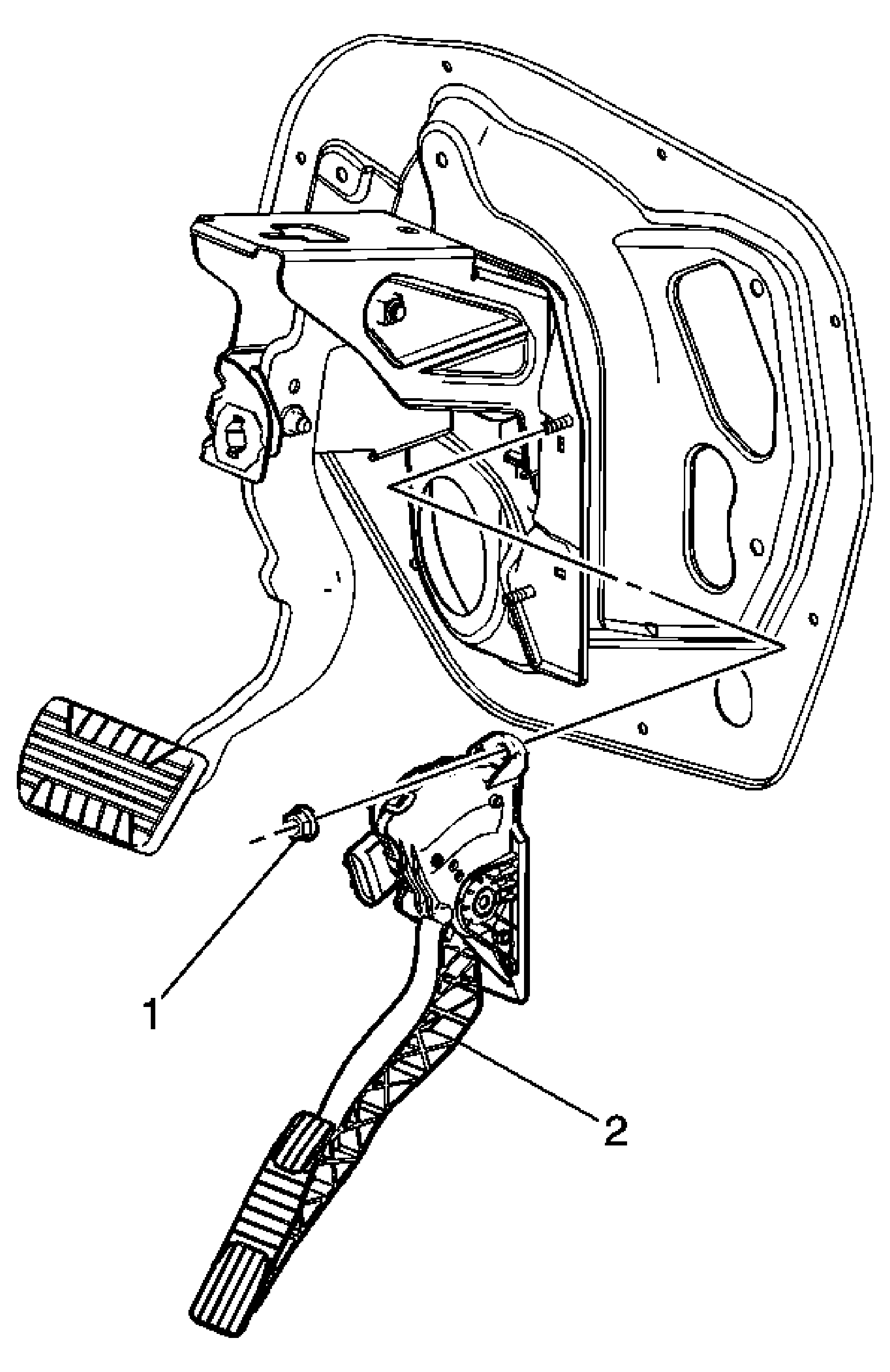

| Callout | Component Name |
|---|---|
| 1 | Accelerator Pedal Position Sensor Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Accelerator Pedal Position Sensor Procedure: Disconnect the electrical connector. |
