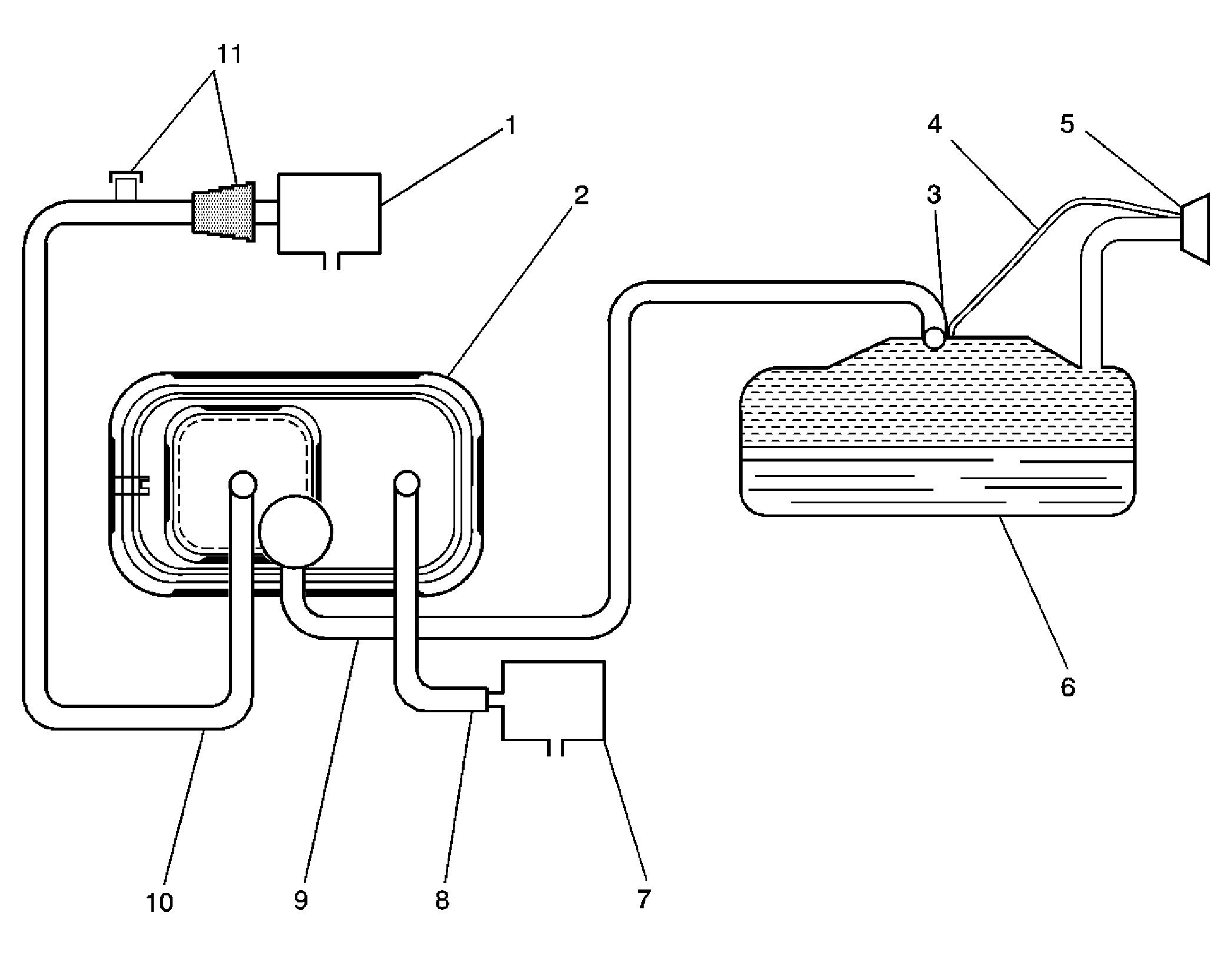

Evaporative Emissions Hose Routing Diagram
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
EVAP Canister Purge Solenoid Valve |
| 2 |
EVAP Canister |
| 3 |
Fluid Level Vent Valve |
| 4 |
Vapor Recirculation tube |
| 5 |
Fuel Fill Neck and Fill Cap |
| 6 |
Fuel Tank |
| 7 |
EVAP Canister Vent Valve |
| 8 |
Vent Hose/Pipe |
| 9 |
EVAP Vapor tube |
| 10 |
EVAP Purge tube |
| 11 |
EVAP Service Port or Service Access Connector |
