Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

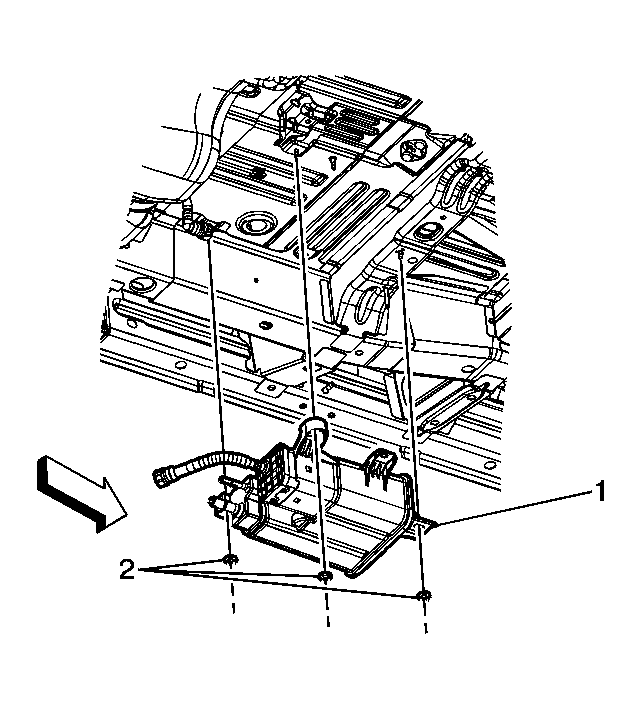

    Fig 1: EVAP Canisters Nuts
    GM1885884Courtesy of GENERAL MOTORS CORP.
  1. Position the EVAP canister (1) to the underbody studs.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the EVAP canister nuts (2).

    Tighten:  Tighten the nuts to 8 N.m (71 lb in).

    3. Fig 2: EVAP Line Quick Connect Fitting
    GM1885584Courtesy of GENERAL MOTORS CORP.
  3. Connect the EVAP canister line quick connect fitting (2) to the fuel tank fresh air line (3). Refer to Plastic Collar Quick Connect Fitting Service .
  4. Connect the fuel tank vapor line quick connect fitting (4) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
  5. Connect the chassis EVAP line quick connect fitting (1) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
    6. Fig 3: Fuel Tank Wiring Harness Electrical Connector
    GM1884621Courtesy of GENERAL MOTORS CORP.
  6. Connect the fuel tank wiring harness electrical connector (1) to the EVAP canister vent solenoid valve.
  7. Lower the vehicle.
