Air Cleaner Outlet Duct Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

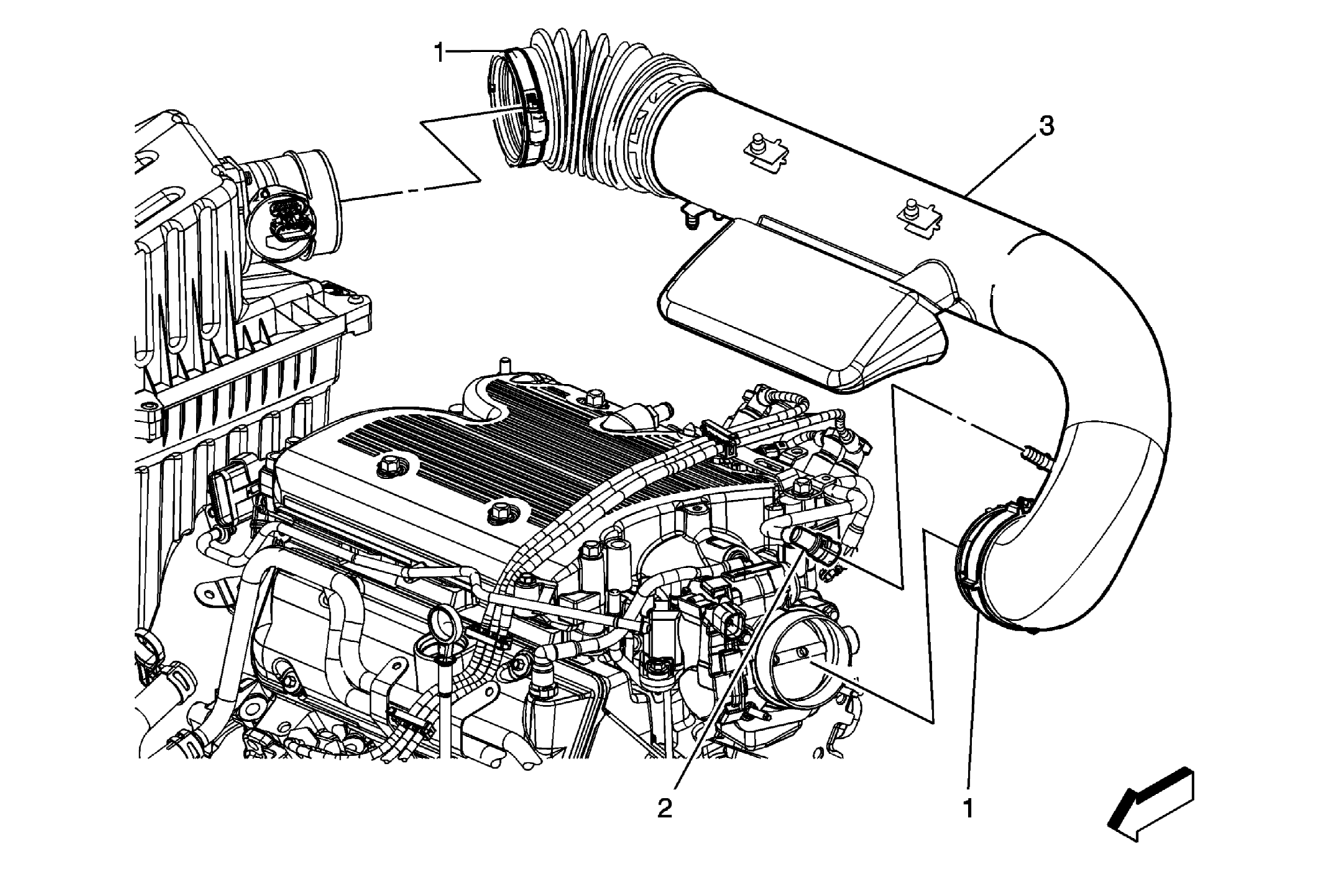

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . |
|
| 1 | Air Cleaner Outlet Duct Clamp (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 2 | Positive Crankcase Valve Tube Tip: The PCV tube contains plastic collar quick connect fittings. Refer to Plastic Collar Quick Connect Fitting Service . |
| 3 | Air Cleaner Outlet Duct |
