Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

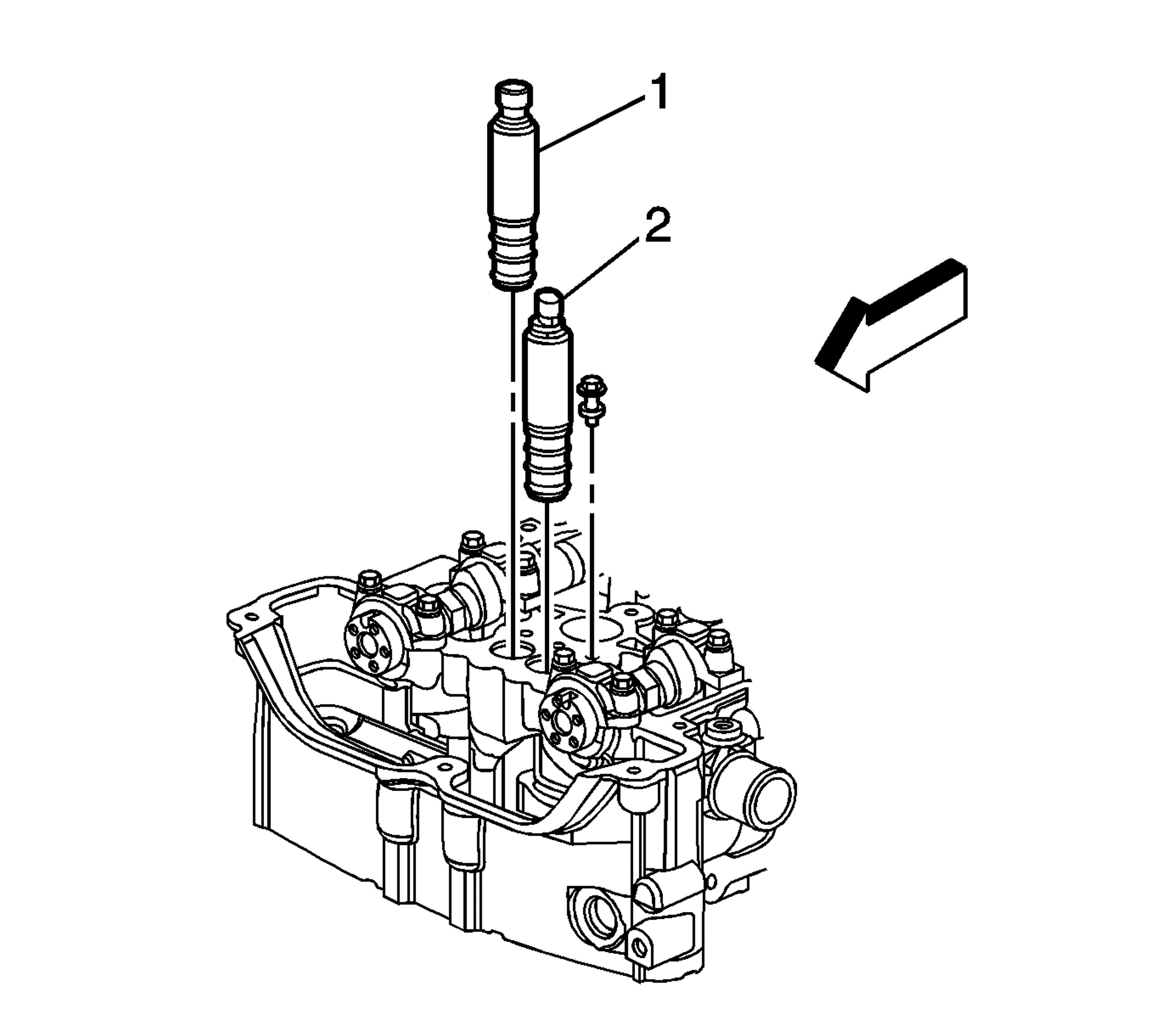

    Fig 1: CMP Actuator Solenoid Valve
    GM1578482Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CMP actuator solenoid valve O-ring seals with clean engine oil.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the intake CMP actuator solenoid valve (2) and bolt, if required.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  3. Install the exhaust CMP actuator solenoid valve (1) and bolt, if required.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    4. Fig 2: Identifying Engine Wiring Harness Electrical Connectors
    GM1811485Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connectors (2, 3) to the appropriate CMP actuator solenoid valve.
  5. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
