Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

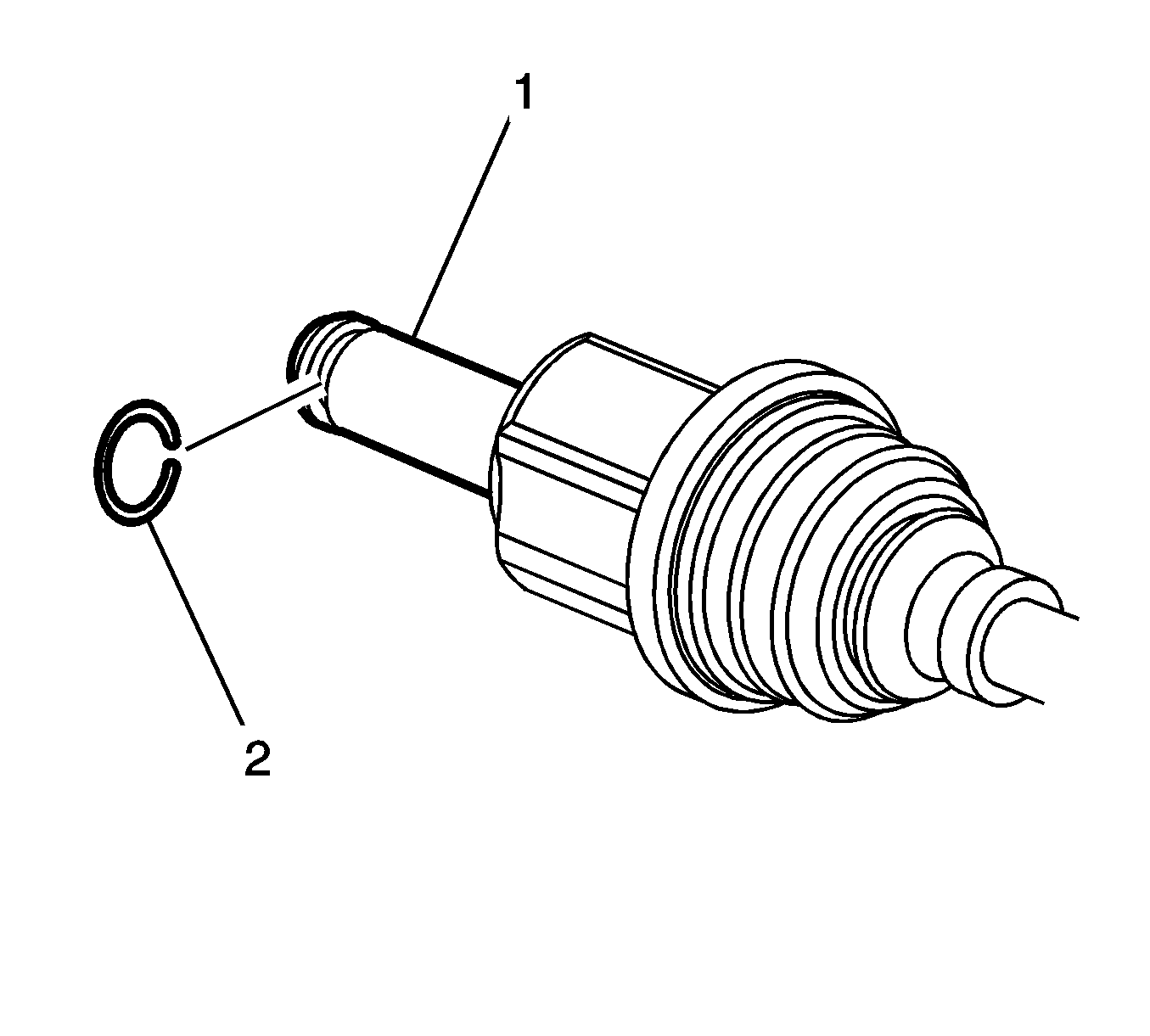

Fig 1: Identifying Retaining Ring

Courtesy of GENERAL MOTORS CORP.

Install the new retaining clip on the tripod.
Install the new wheel drive shaft seal.
- For the left side, refer to Rear Axle Shaft Seal Replacement - Left Side .
- For the right side, refer to Rear Axle Shaft Seal Replacement - Right Side .

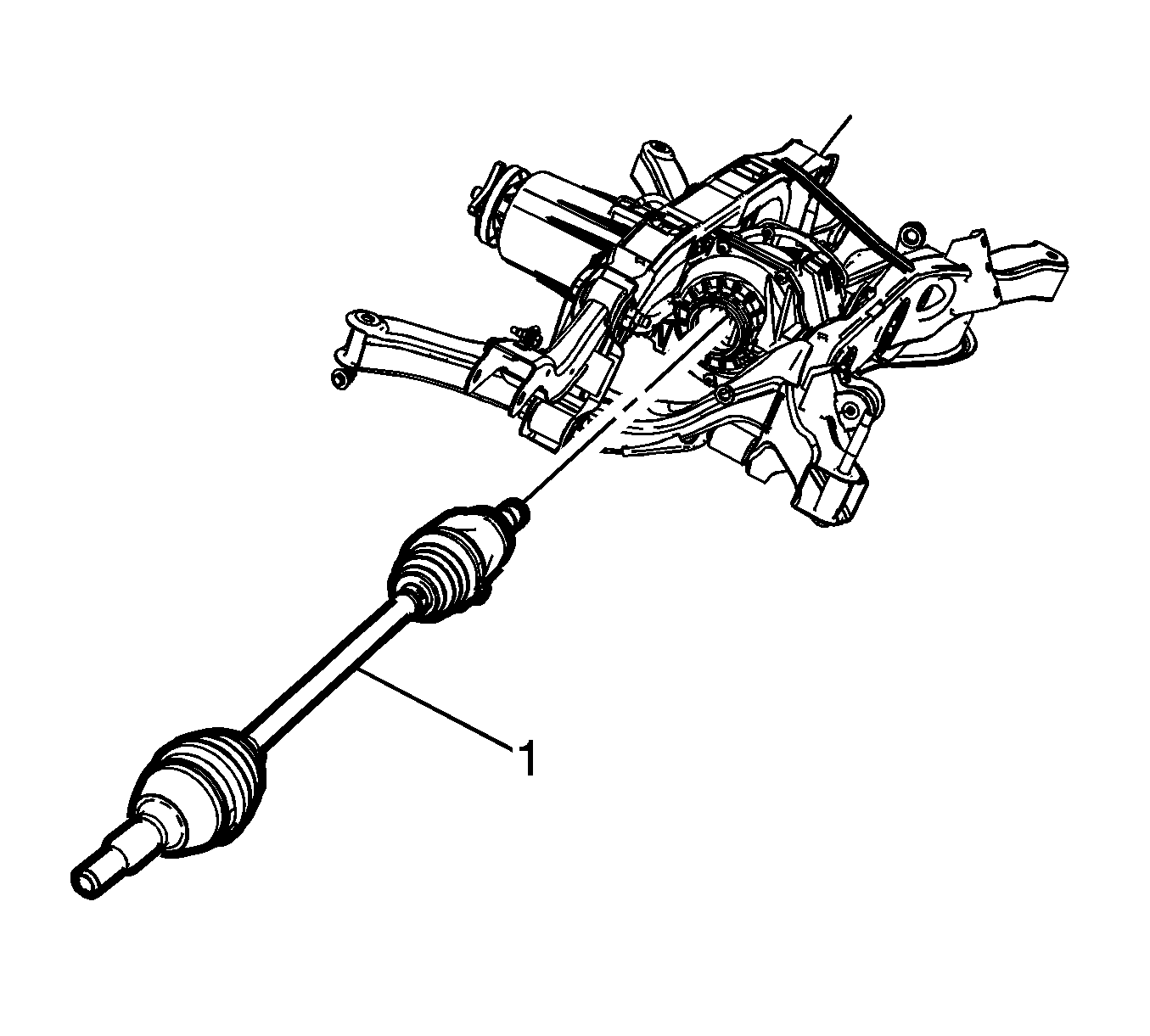

Fig 2: View Of Wheel Drive Shaft

Courtesy of GENERAL MOTORS CORP.

NOTE: When installing the wheel drive shaft, you will notice a slight resistance. This is the wheel drive shaft seal. A snap or click should be heard when the wheel drive shaft is fully seated.

Install the wheel drive shaft.
Install the rear suspension knuckle. Refer to Knuckle Replacement .

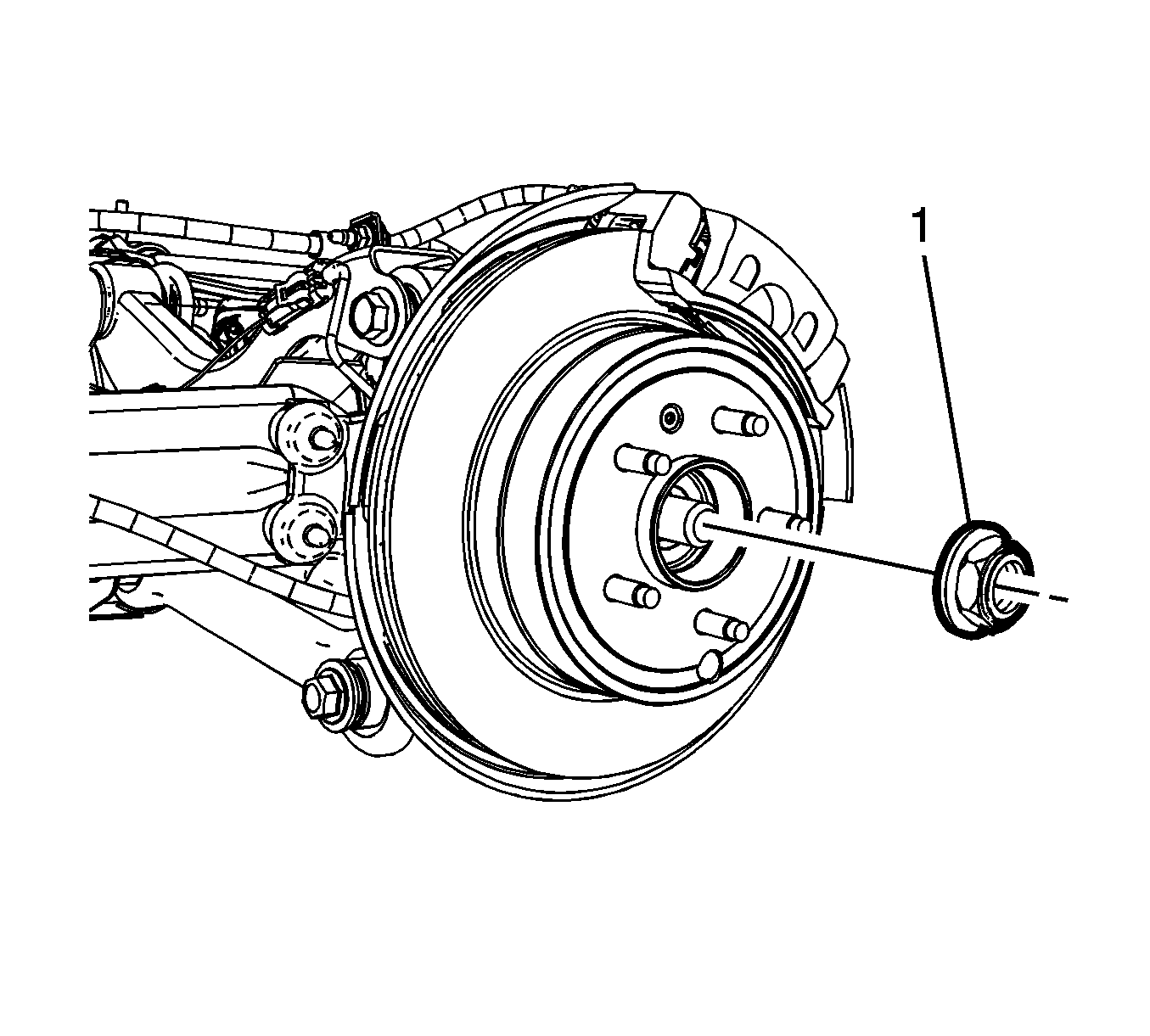

Fig 3: View Of Wheel Drive Shaft Spindle Nut

Courtesy of GENERAL MOTORS CORP.

Hand install a new wheel drive shaft spindle nut.

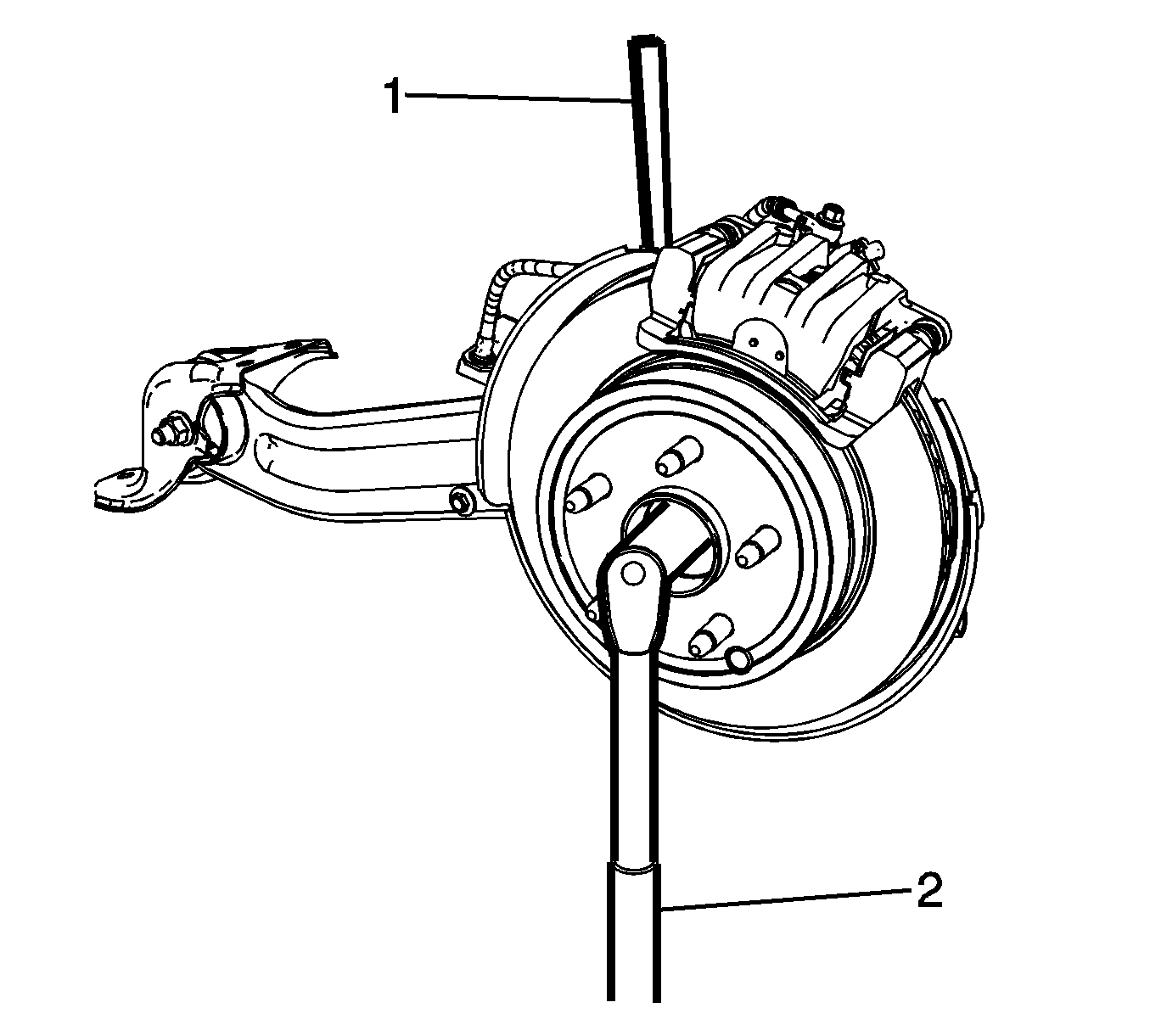

Fig 4: Inserting Drift Into Rotor & Against Brake Caliper Mounting Bracket

Courtesy of GENERAL MOTORS CORP.

Insert a drift or punch into the rotor and against the brake caliper mounting bracket.

CAUTION: Refer to Fastener Caution .

Tighten the wheel drive shaft spindle nut. Tighten the nut to 205 N.m (151 lb ft).
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the support and lower the vehicle.
