Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the right front wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .

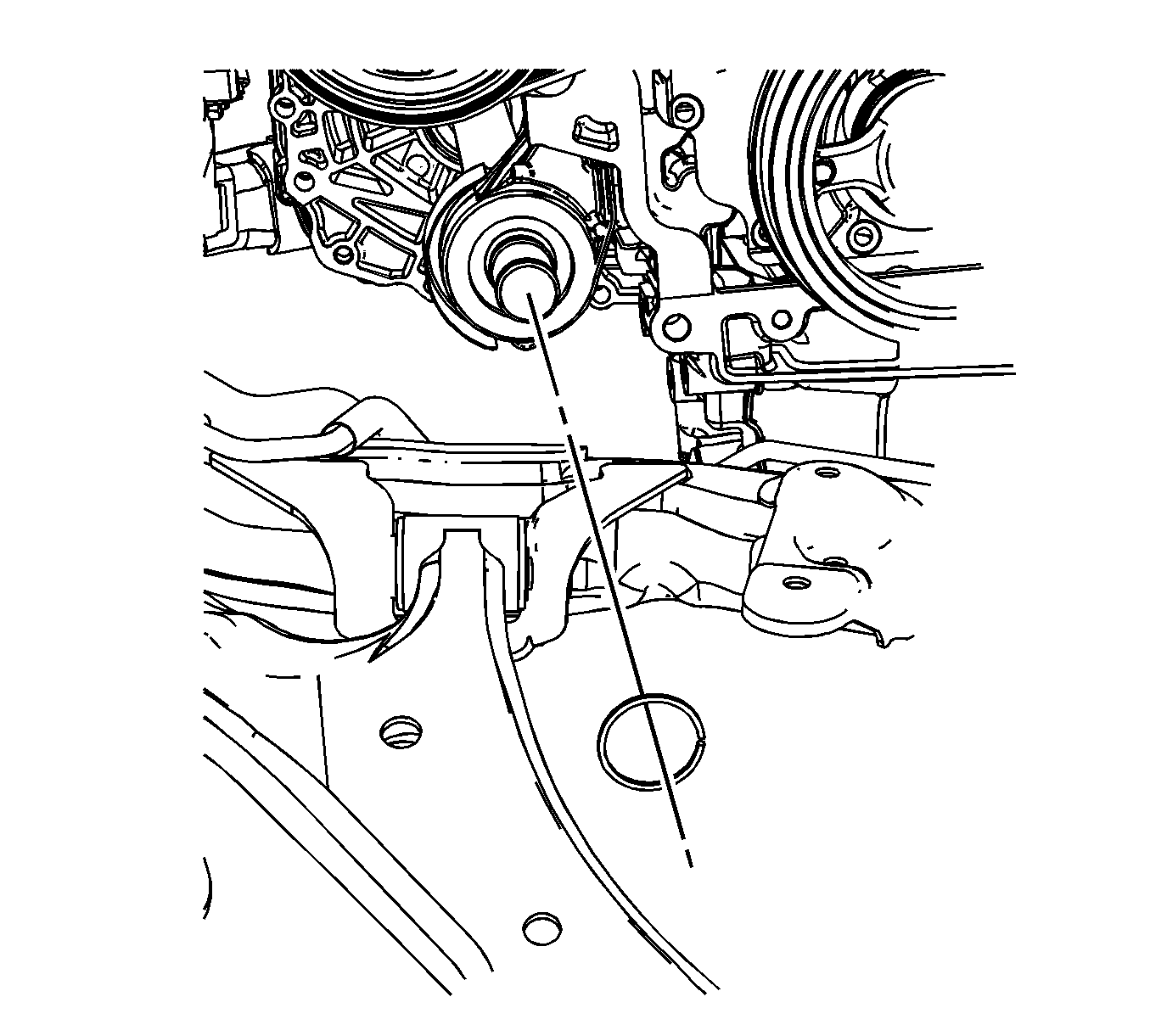

    3. Fig 1: View Of Wheel Drive Shaft Clip
    GM1851800Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the wheel drive shaft retaining ring.
  4. Remove the O-ring seal from the from the intermediate drive shaft.

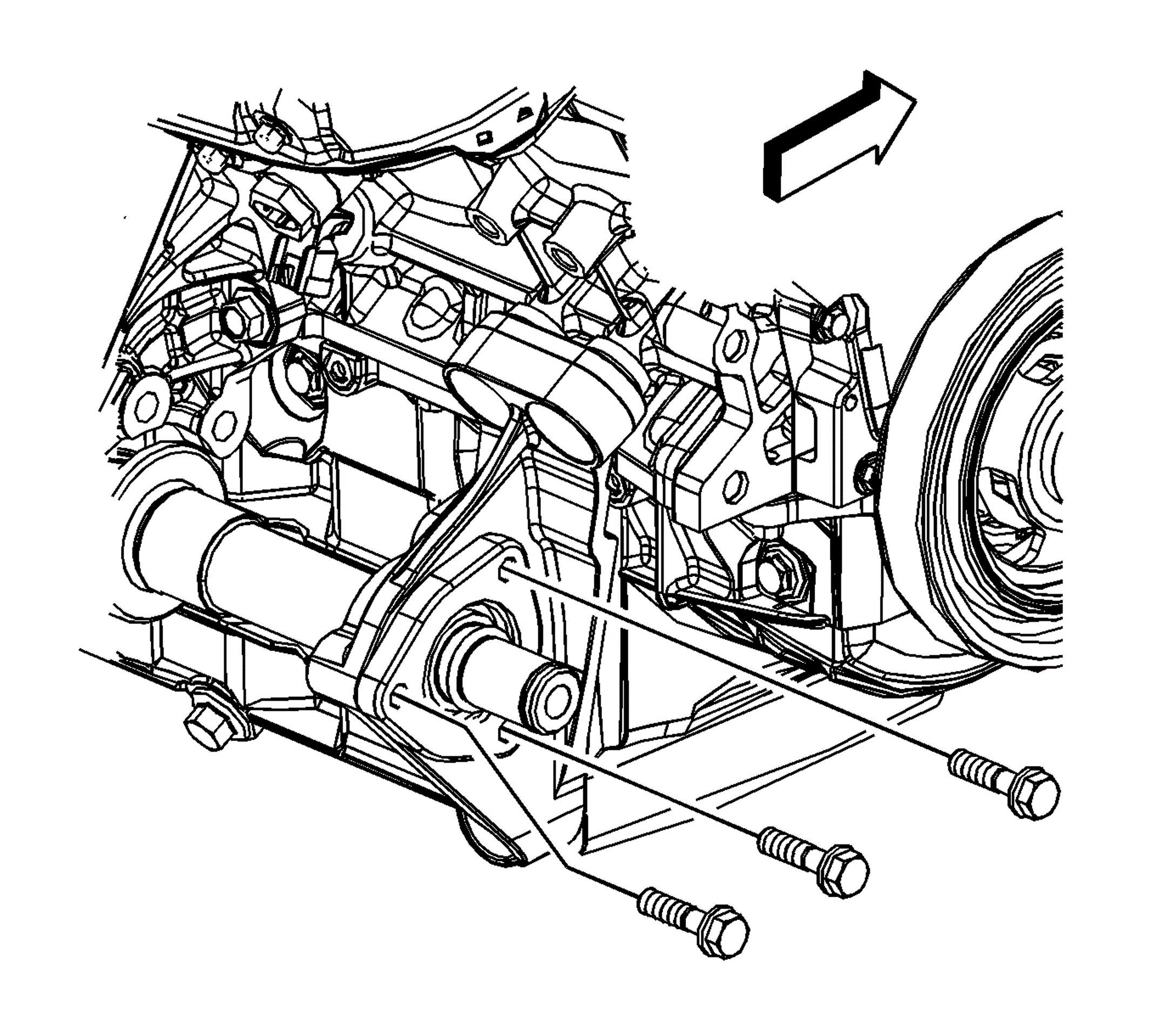

    5. Fig 2: Intermediate Drive Shaft Mounting Bolts
    GM1876169Courtesy of GENERAL MOTORS CORP.
  5. Remove the intermediate drive shaft mounting bolts.

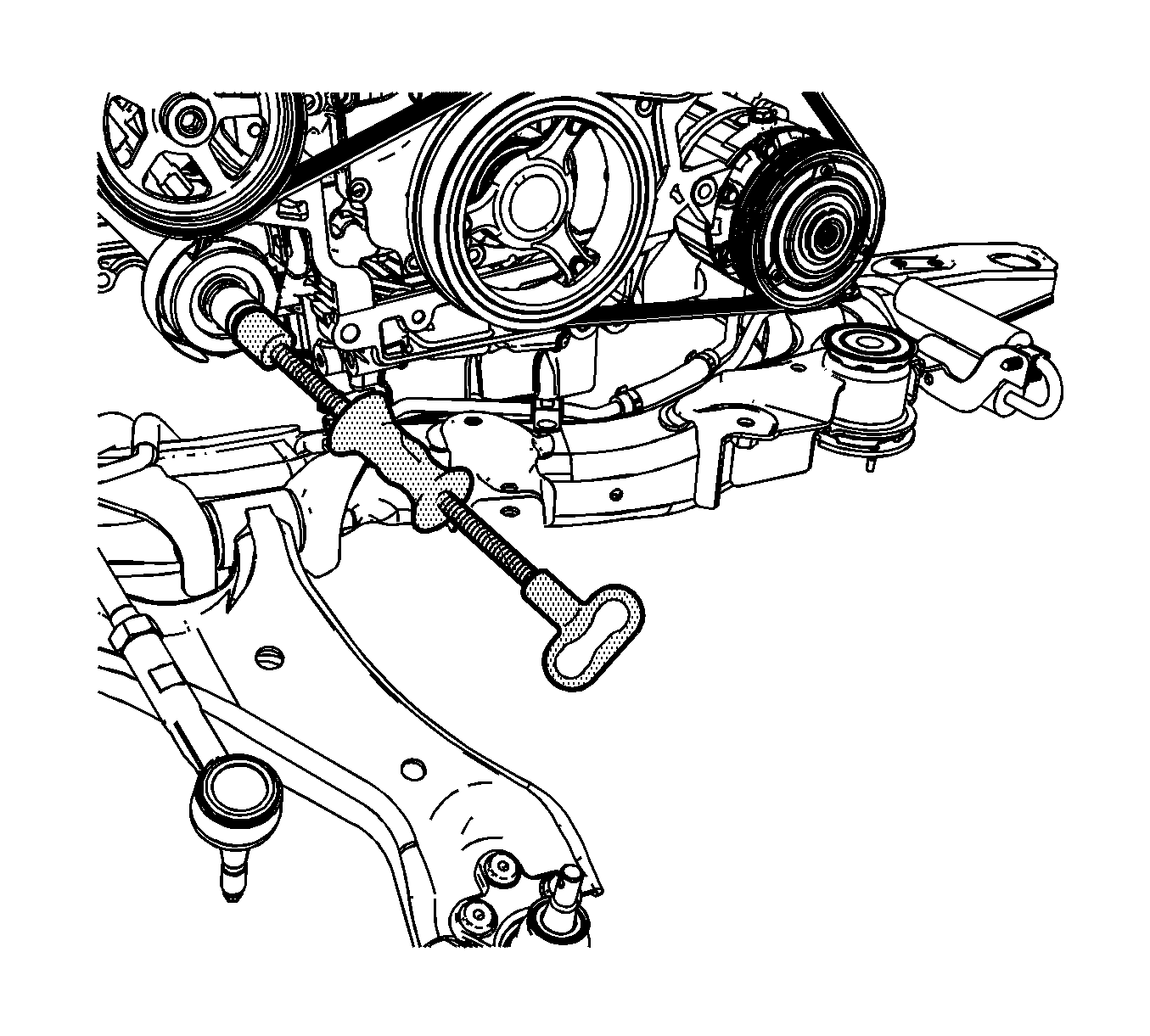

    6. Fig 3: Disengaging Intermediate Drive Shaft From Transaxle
    GM1851784Courtesy of GENERAL MOTORS CORP.
  6. Using the J 2619-01  and the J 44467  , remove the intermediate shaft from the transmission. See Special Tools .
  7. Remove the J 2619-01  and the J 44467  from the intermediate shaft. See Special Tools .

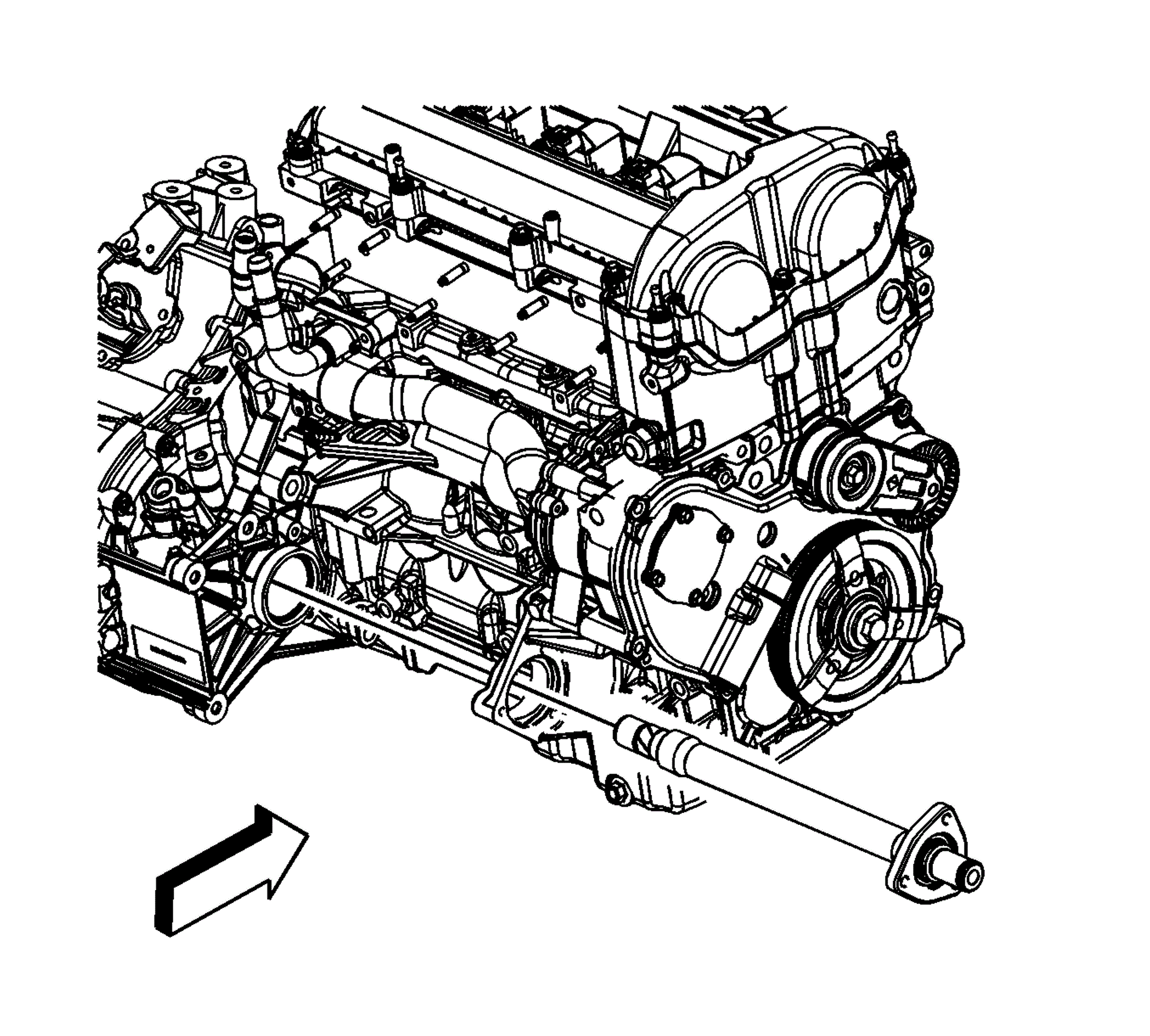

    8. Fig 4: Intermediate Drive Shaft And Mounting Bracket
    GM1876157Courtesy of GENERAL MOTORS CORP.
  8. Remove the intermediate drive shaft from the mounting bracket.

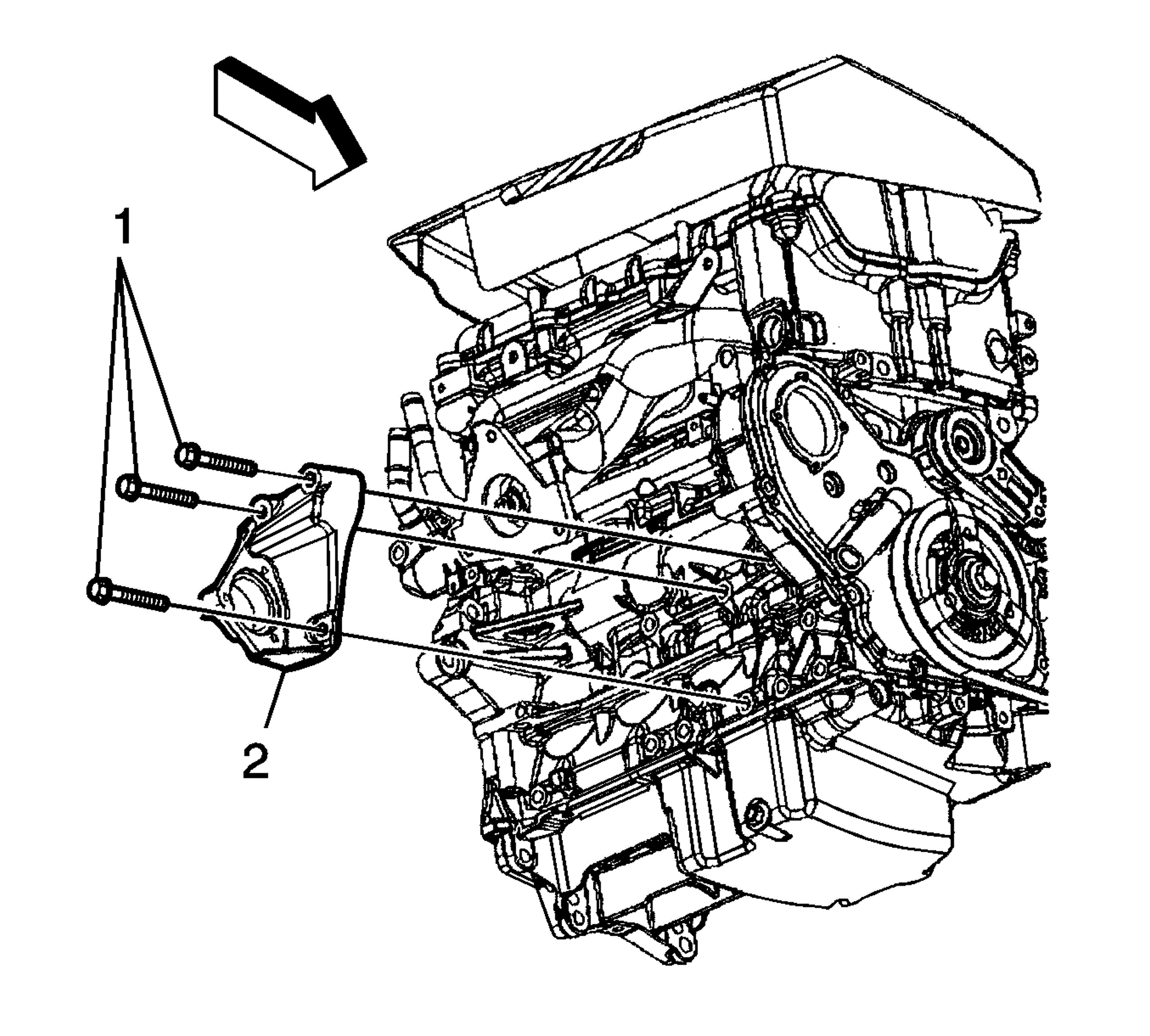

    9. Fig 5: Intermediate Drive Shaft Bracket Mounting Bolts And Bracket
    GM1876159Courtesy of GENERAL MOTORS CORP.
  9. Remove the intermediate drive shaft bracket mounting bolts and bracket, if needed.
