Trim Height Specifications
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Application | Specification | ||
|---|---|---|---|
| Base Model (16 in and 17 in Tires) | Redline | BAS Hybrid | |
| Front Suspension Height (P) | 795 mm ± 10 mm (31.3 in ± 0.4 in) | 775 mm ± 10 mm (30.5 in ± 0.4 in) | 772 mm ± 10 mm (30.4 in ± 0.4 in) |
| Rear Suspension Height (R) | 804 mm ± 10 mm (31.7 in ± 0.4 in) | 778 mm ± 10 mm (30.6 in ± 0.4 in) | 792 mm ± 10 mm (31.2 in ± 0.4 in) |
| Front Suspension Height (Z) | 16 mm ± 10 mm (0.6 in ± 0.4 in) |
-9 mm ± 10 mm (-0.4 in ± 0.4 in) |
-5 mm ± 10 mm (-0.2 in ± 0.4 in) |
| Rear Suspension Height (D) | 42 mm ± 10 mm (1.7 in ± 0.4 in) |
-16 mm ± 10 mm (0.6 in ± 0.4 in) |
33 mm ± 10 mm (1.3 in ± 0.4 in) |

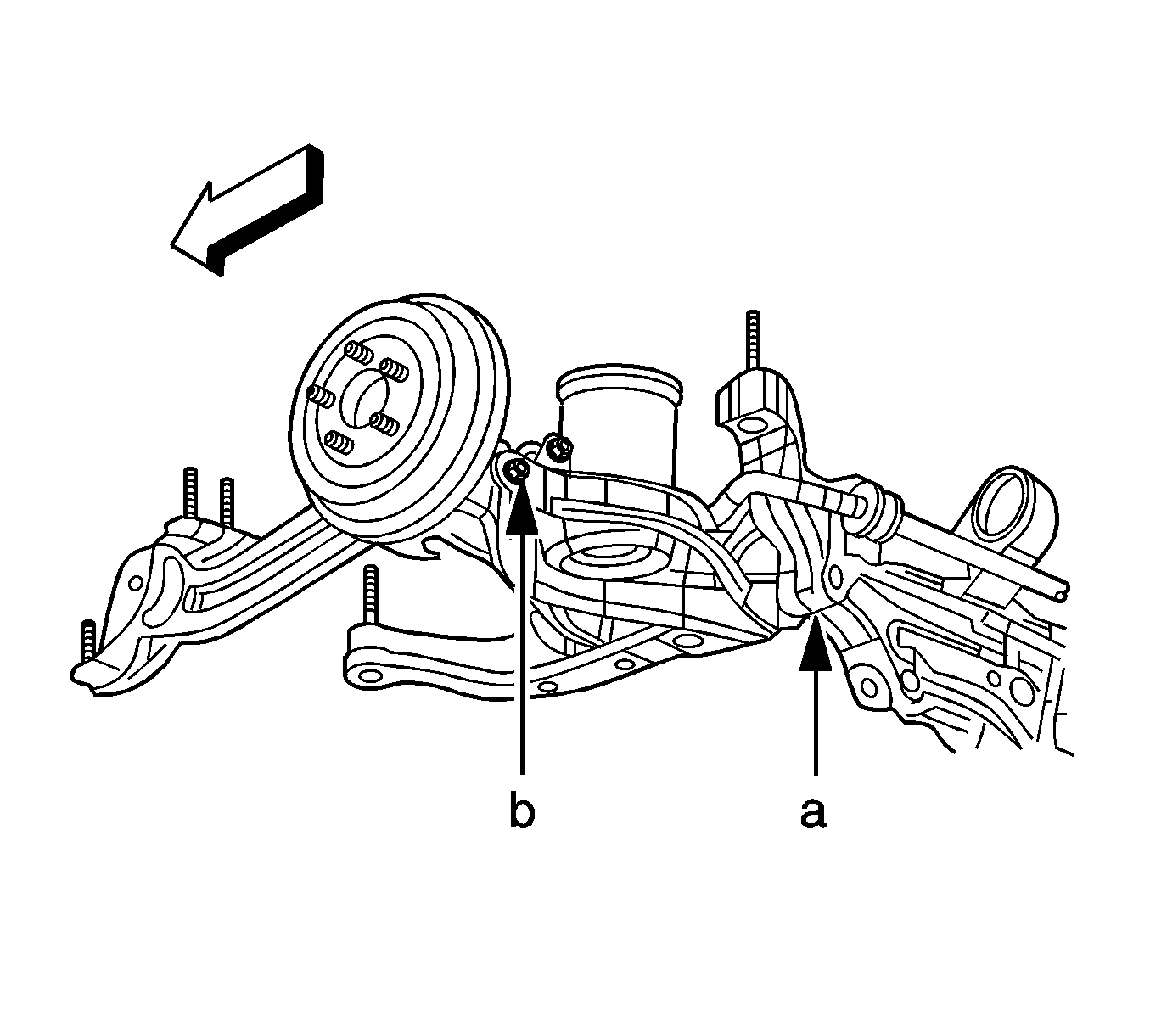

| The rear suspension D Height is the difference (D=a-b) measured as a horizontal line through the center of the cradle attachment bolt (a) and the center of the knuckle attachment bolt (b). ***All measurements are taken with a full tank of gas. |
|||
