Antilock Brake System Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

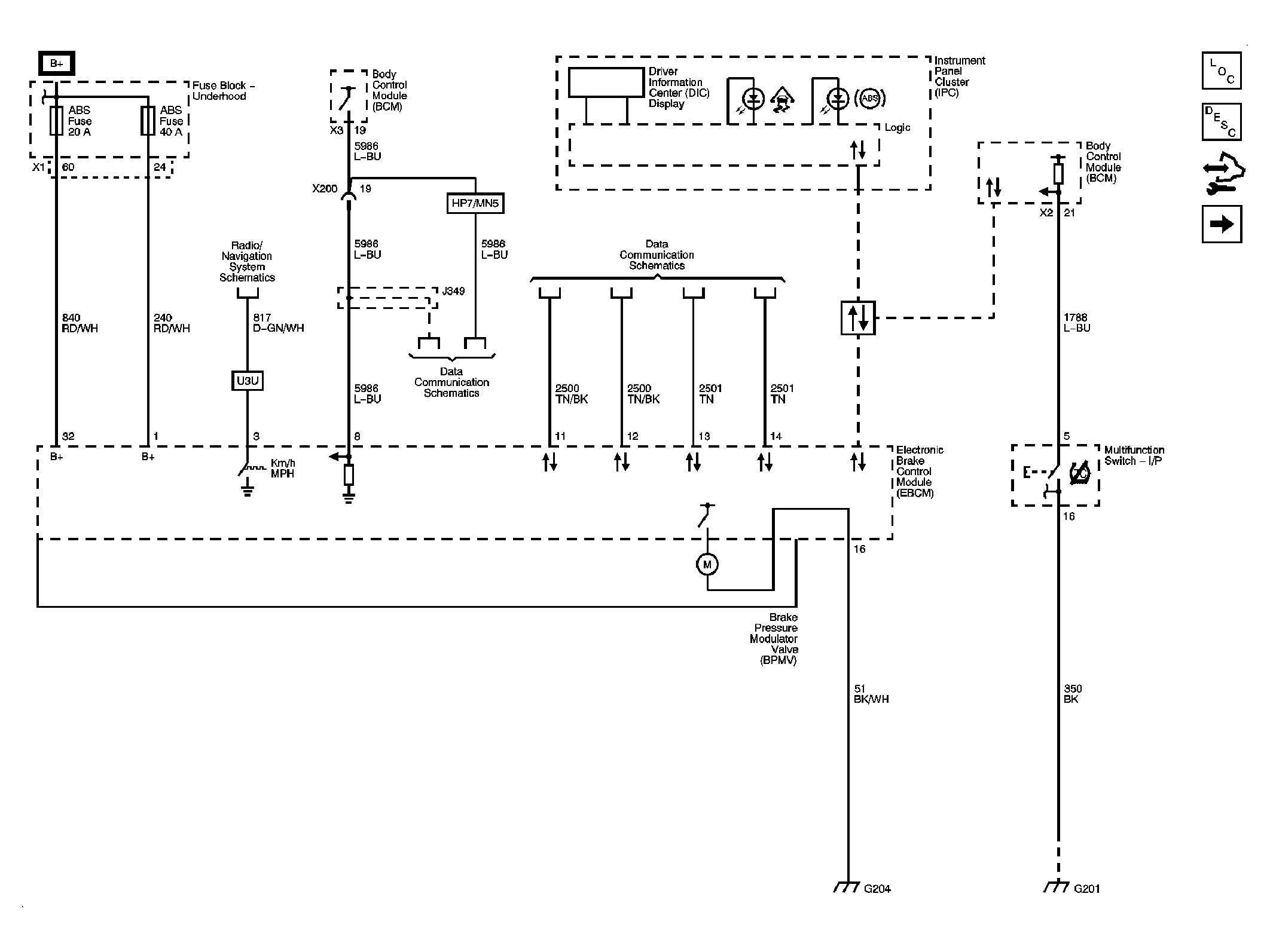

Fig 1: Control Module, Ground, Instrument Panel Display and Serial Data (HP7)

Courtesy of GENERAL MOTORS CORP.

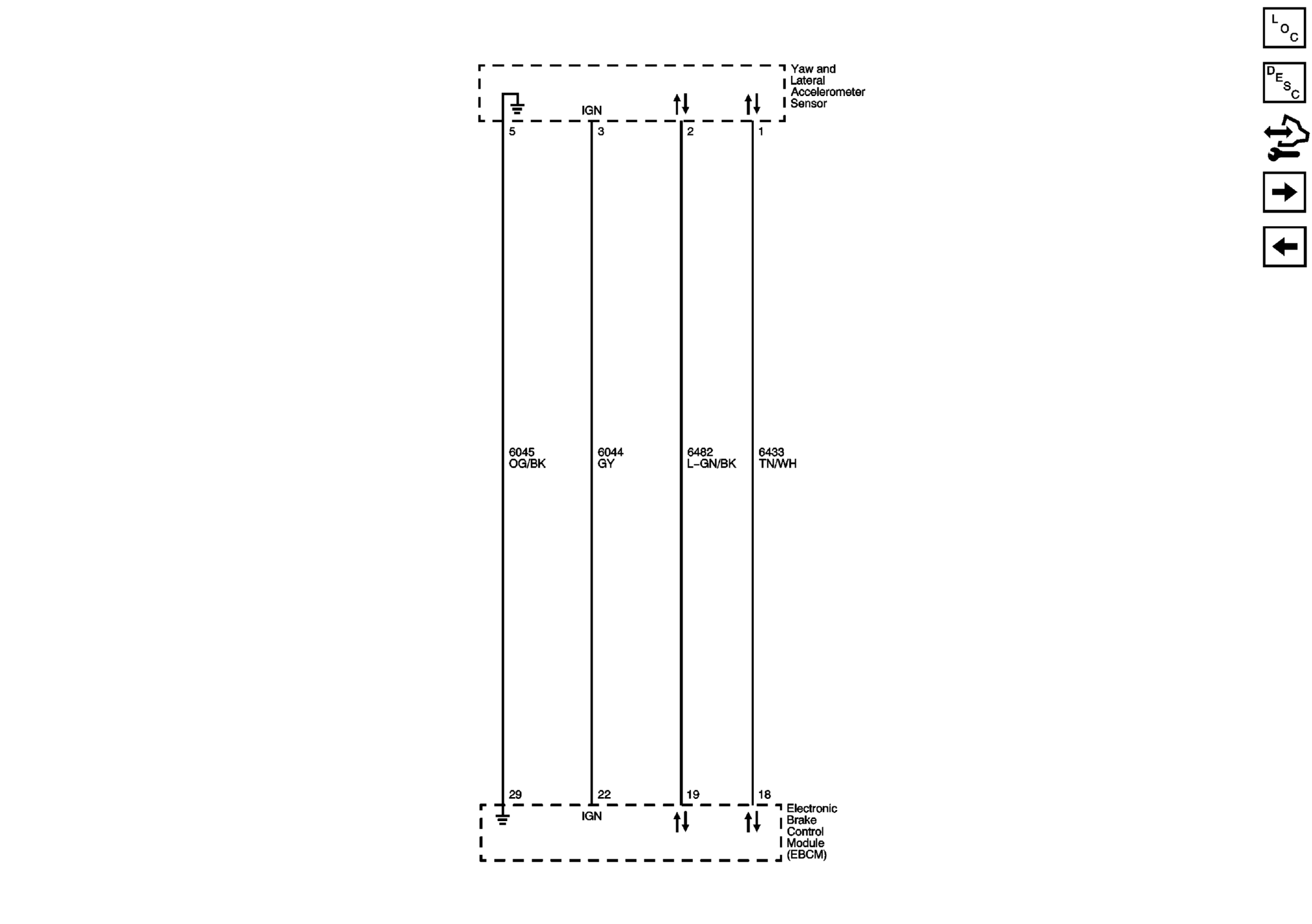

Fig 2: Yaw and Lateral Accelerometer (HP7)

Courtesy of GENERAL MOTORS CORP.

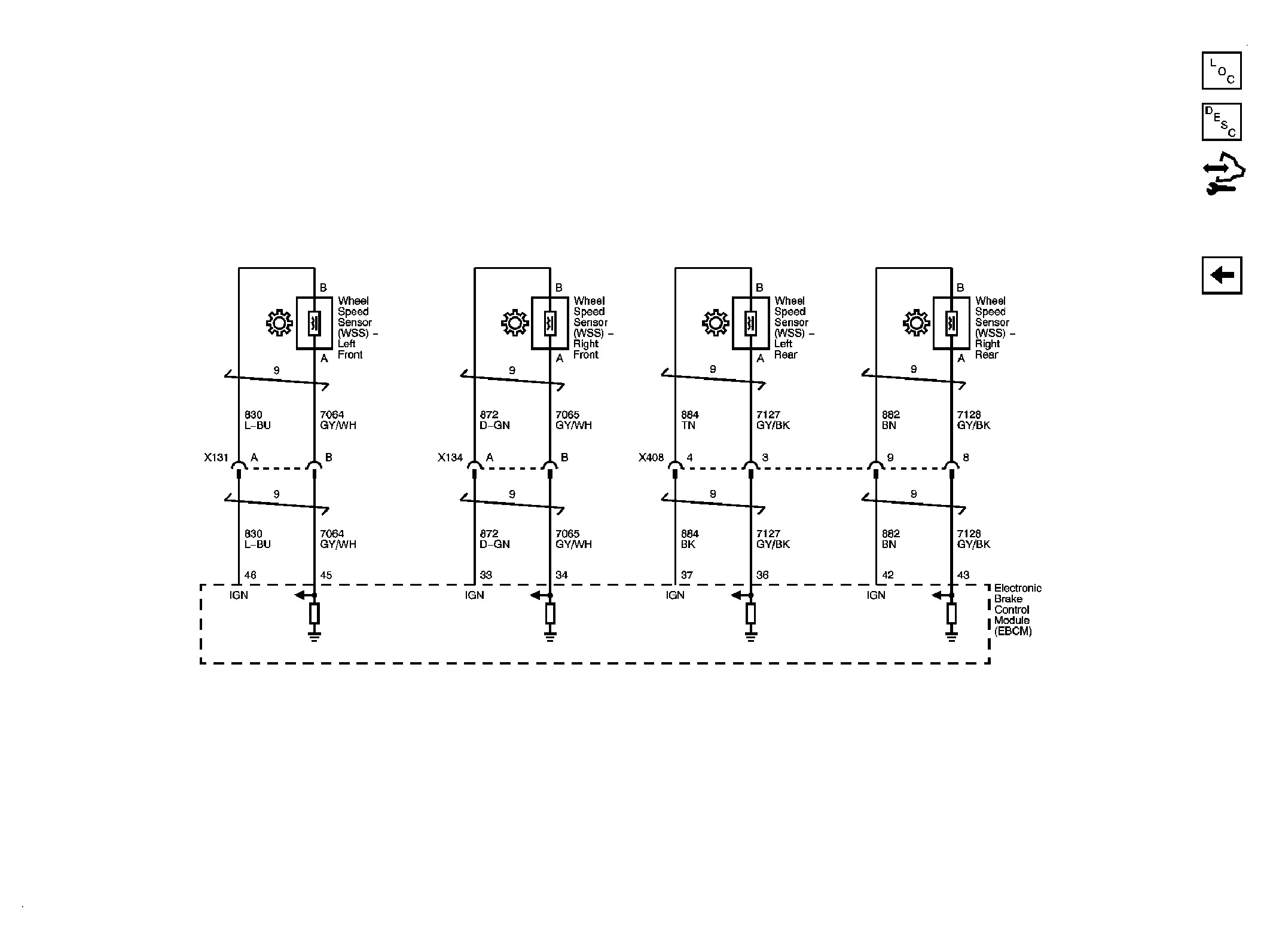

Fig 3: Wheel Speed Sensors (HP7)

Courtesy of GENERAL MOTORS CORP.
