Vehicle Yaw Sensor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

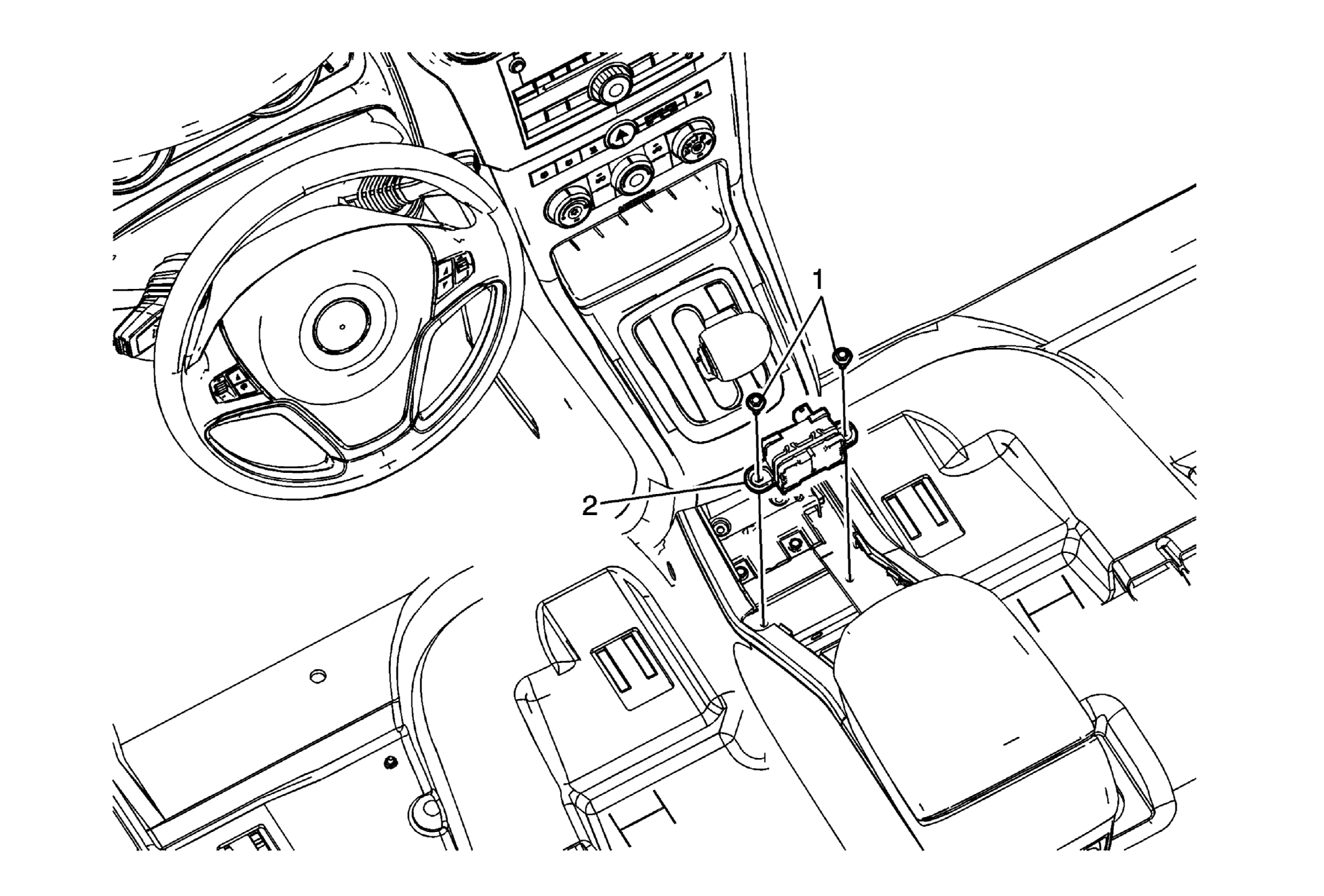

Fig 1: Vehicle Yaw Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove front floor rear console. Refer to Front Floor Console Replacement .
1	Electronic Brake Control Vehicle Yaw Sensor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb ft)
2	Electronic Brake Control Vehicle Yaw Sensor Assembly Procedure Remove the console bracket and bolts. Position the wire harness assembly out of the way. Disconnect any electrical connectors. Transfer components as needed.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove front floor rear console. Refer to Front Floor Console Replacement .

Electronic Brake Control Vehicle Yaw Sensor Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb ft)

Electronic Brake Control Vehicle Yaw Sensor Assembly

Procedure

Remove the console bracket and bolts.
Position the wire harness assembly out of the way.
Disconnect any electrical connectors.
Transfer components as needed.
